Diamond Grinding Wheel Balancing Machine (PHQ-1000)

Diamond Grinding Wheel Balancing Machine (PHQ-1000)
Price: US $ 6000-30000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

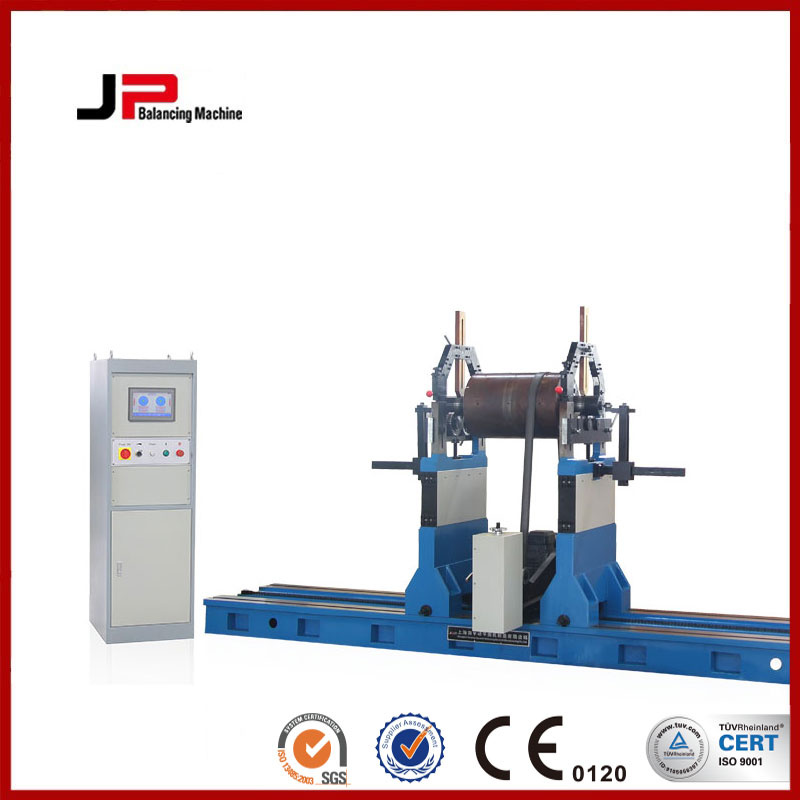

Diamond grinding wheel balancing machine (PHQ-1000)


With Rotary hydraulic cylinder dynamic balancing machine (PHQ-5000)
Large application&measure range
High initial unbalance permitted
High prec

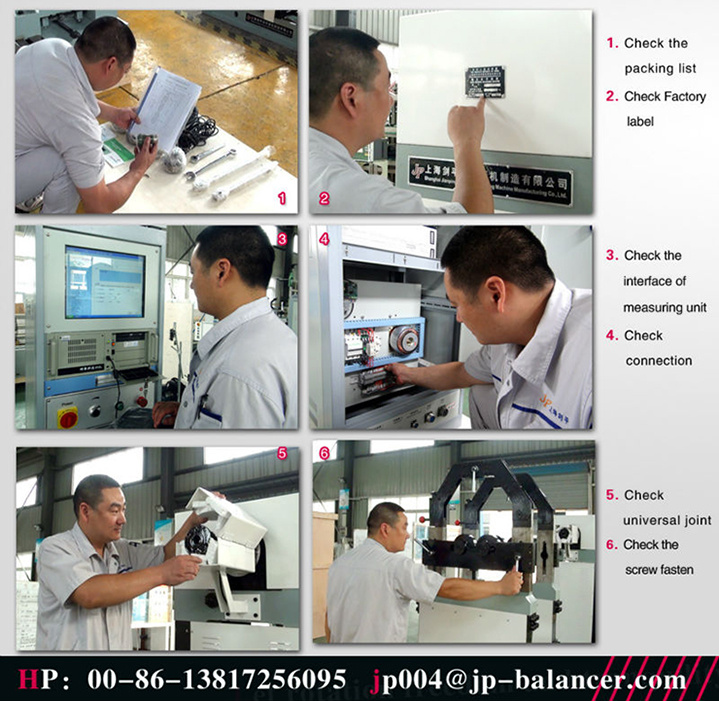

Delivery inspection

1000/2000/3000/5000kg Belt Drive Balancing Machine

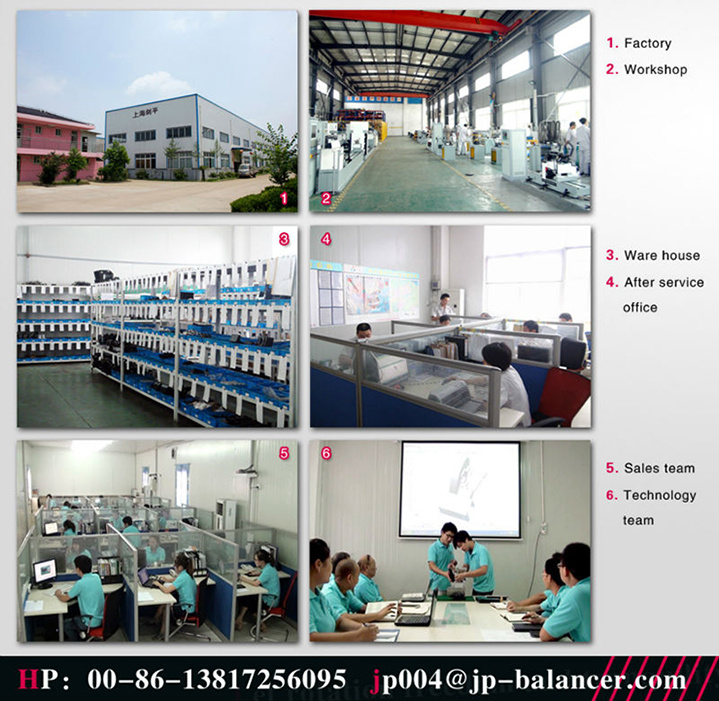

Factory Outlook

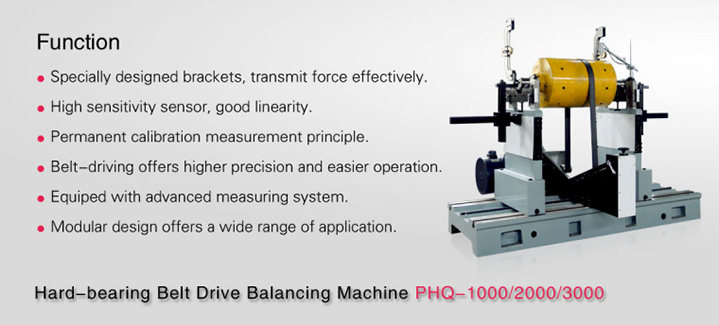

Production Description

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

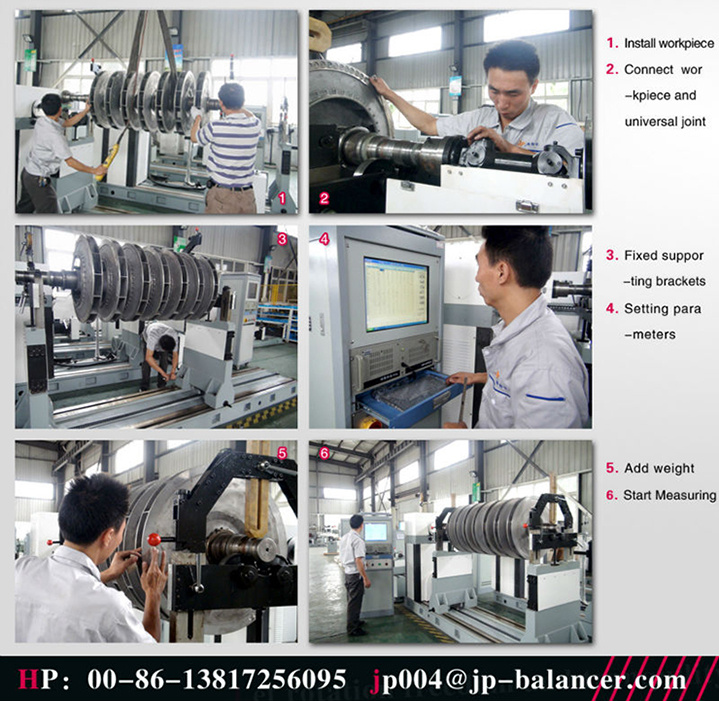

Workshop debugging

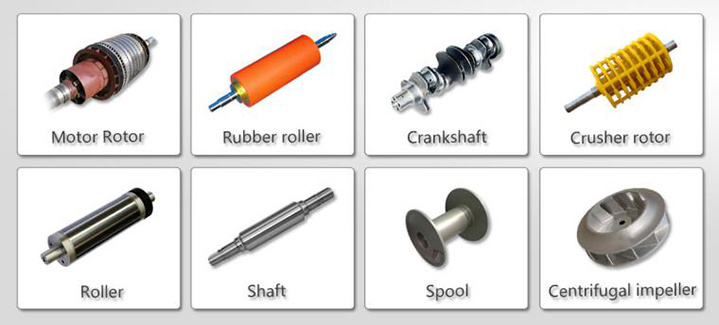

Range of Application

With Rotary hydraulic cylinder dynamic balancing machine (PHQ-5000) is also widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency


Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Production Parameters
Technical data at a glancePHQ-1000PHQ-2000PHQ-3000PHQ-5000
Max Mass of Workpiece (kg)1000 2000 3000 5000
Max Diameter of Workpiece (mm)16001800 2000 2400
Distance between Two Support Bearings (mm)160~1500180~1700 500~2200 500~2200
Journal Diameter Scope of Workpiece (mm)35~20040~240 40~380 40~380
Diameter Scope of Driving Belt (mm)40~40040~600 50~1000 50~1000
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) 1148,1554 +Stepless speed regulation590,1375 +Stepless speed regulation795,1853 +Stepless speed regulation795,1853 +Stepless speed regulation
Motor Power (kw)
4 Frequency conversion

5.5 Frequency conversion

7.5 Frequency conversion

15 Frequency conversion
Min Achievable Residual Unbalance Amount (emar)Min 0.5g. mm/kg Min 0.5g. mm/kg Min 0.5g. mm/kg Min 0.5g. mm/kg
Prod Model: PHQ-1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length: 2100 Mm
Width: 1350 Mm
Height: 1350 Mm
Gross Weight: 1100 Kg
Weight: >2000Kg
Power Source: AC380V
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. is a professional manufacturer of dynamic balancing machine, which locates in the largest city of China-Shanghai. The high-tech business entity composed of scientific and technical personnel who have devoted to the design, development and manufacturing of balancing machines for many years as well as the backbone elite with abundant experience.

Dynamic balancing machine produced by the company cover horizontal Balancing Machine, vertical Balance Machine, various semi-automatic Balancing Machine, automatic Balance Machine for industrial production flow, special dynamic balancing machine for turbo, main shaft of machine tool, crankshaft of automobile, driving shaft, electric armature, fans, roller, aerospace engine, on-site balance for power factory and station, including automobile, electric, aerospace, turbo, common machinery industries. The products are also batch exported to Occident, Australia, South Africa, Russia, Middle East, Southeast Asia and etc.

Company sticks to a "Human Oriented" management pattern and attaches importance to the selection and cultivation of qualified employees. Outstanding expertise and employee quality guarantees high-quality products. What' S more, good after-sale services and technical support eradicate your fear of trouble in the future when purchasing or using Jp balancing machine. Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001: 2008 authentication of TUV. CE Certificate of Ente Certificazione Macchine

Quality is our fundamental, credibility is our aim, customer satisfaction is our eternal pursuit. Welcome visits, discussions and suggestions as well as inquiries from the new and old customers. Wish to establish a long-term partnership and friendship with clients all over the world
