| Price: | US $ 5-55/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Applications
We Die's wire drawing system is used by wire producers to reduce a cross-section of wire by pulling the wire through a single die or a series of drawing dies. There are many applications for wire drawing, including electrical wiring, construction reinforcement, cables, medical and surgical applications, springs, staples, tire cord,and welding wire.
Enough welding wire is produced every year to circle the globe several times. Hundreds of thousands of wire drawing dies are consumed during the production of welding wire.
There are more than 1 billion tires produced every year and each tire contains bands of high tensile-strength steel wire encased in a rubber compound. Millions of wire dies are consumed each year in the production of tire cord wire.
Millions of heavy duty and light vehicle engine valve, piston, fuel injection, transmission, and clutch springs are produced each year. Hundreds of thousands of wire drawing dies are consumed annually during the production of spring wire.
PC strand is primarily used in pre-stressed concrete buildings, bridges, parking decks, and other structures. High carbon steel rod is drawn through carbide wire dies before being used as concrete reinforcement.
All over the world millions of screws, bolts, nuts, rivets, nails, and staples are produced each year. Carbide wire drawing dies are essential to the production of these fasteners.
Wire rope and cable are used in many industries - spanning aerospace and construction to medical and transportation. Wire drawing dies are used to form the control, constraint, and security cables used in these industries.
No | Product | Items | Mold Core | Hardness |
1 | Wire-drawing Die | W103 | φ13*10 | 1400-1600 |
1600-1800 | ||||
2 | Wire-drawing Die | W104 | φ16*13 | 1400-1600 |
1600-1800 | ||||
3 | Wire-drawing Die | W105 | φ20*17 | 1400-1600 |
1600-1800 | ||||
4 | Wire-drawing Die | W106 | φ25*18 | 1400-1600 |
1600*1800 | ||||
5 | Wire-drawing Die | W107 | φ30*22 | 1400-1600 |
1600-1800 | ||||
6 | Wire-drawing Die | W108 | φ35*25 | 1400-1600 |
1600-1800 |
Items | Mold Core | Mantle | Coating Film | Specification | Tolerance | Compression Corner | Coining |
W109 | 40*27 | 53(-0.1~-0.2)*34 | AlCrN | 13.30 | 0-0.01 | 14 | 25% |
13.10 | |||||||
W108 | 35*25 | 12.80 | |||||
12.70 | |||||||
12.40 | |||||||
12.10 | |||||||
11.70 | |||||||
11.40 | |||||||
11.10 | |||||||
10.70 | |||||||
10.60 | |||||||
10.10 | |||||||
W107 | 30*22 | 9.90 | |||||
9.60 | |||||||
9.10 | |||||||
8.90 | |||||||
8.10 | |||||||
W106 | 25*18 | 7.10 | |||||
6.10 | |||||||
W105 | 20*11 | 5.10 | 30% | ||||
4.90 | |||||||
4.10 | |||||||
W104 | 15*10 | 3.80 | |||||
3.50 | |||||||
3.30 | |||||||
3.20 | |||||||
3.10 | |||||||
3.00 |
PCD Wire Drawing Dies
Shape Dies
Other Products
Compay Informations
About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products.
Our products sold to worldwide . We have built a long term business relationship with the customers from Italy, Portugal, Germany, Turkey, USA, Mexico, Russia, India, Australia and so on.

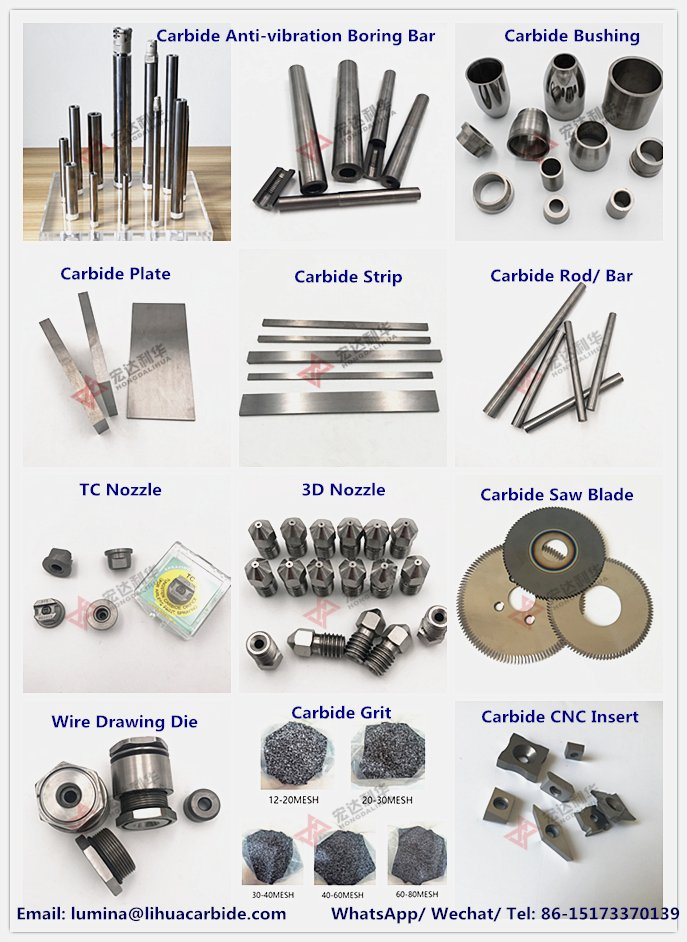

Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter: Woodworking tool cutter, V-cutter, mining tool, Any customized carbide products are acceptable.
Month capacity of 15Ton
We have sophisticated equipment, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine etc, Our production capacity up to 15 Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
Foreign Sales Represntative: Lumina
Mobile: 0086-15173370139 (available 24 hours)
Wesite: http://enlihuacarbide.com
Factory Address: Tower A, Building 6th, Bolck C, Auto Parts Park, Tianyuan Zone, Zhuzhou 412000, Hunan, China
| Product Name: | Diamond Drawing Dies PCD Copper Wire Drawing Die |
|---|---|
| Drawing Die Mould Material: | Tungsten Carbide + Steel Case |
| Sintered Method: | Hip Sintered |
| Runner: | Hot Runner\ Cold Runner |
| Tolerance: | as Per Your Requirement |
| OEM: | Acceptable |
| Application: | Commodity |
| Material: | Tungsten Carbide |
