| Price: | US $ 33/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |

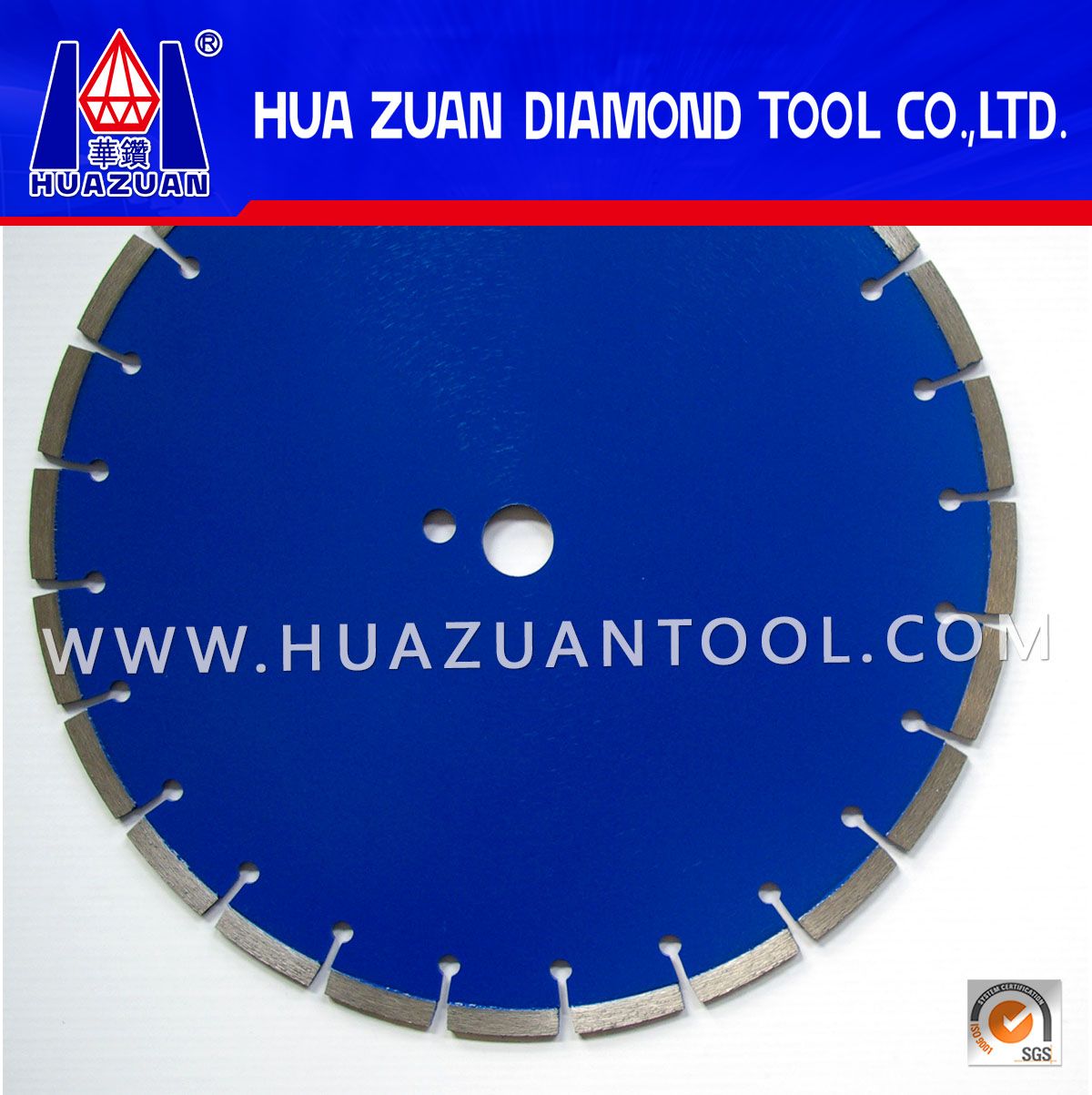

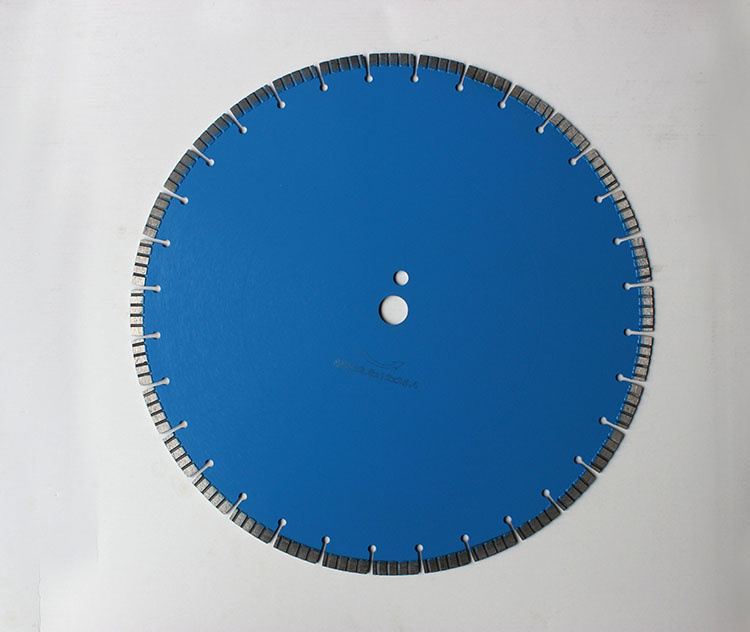

| Product Name | Diamond cutting blade for cutting reinforced concrete |
| Size | Specialized in making any sizes of diamond blade, we can make many different kinds of quality and sizes to fit your market and your stone. |
| Diameter | 300mm-1200mm diamond blade we can make |
| Application | Diamond blade Used for cutting granite, marble, sandstone, limestone, lava, concrete, mine, tile etc. |
| Feature | 1. Fast cutting & long life & Stable performance, High grade of diamonds 2. Different bonds are for different applications & precise segment size 3. Working safe, quiet, and precise, reducing cutting & working time 4. Great adaptability & No chipping |
| Package | Color box,double blister card,skin packing,white box etc |
| Supply ability | 5000 pcs/month(We accept mixed order) |
| Quality | ISO9001&Gold Supplier Factory=Quality Control=Competitive Price=Owntechnology=OEM |
| Granite blade segment dimension | |||||
| Outer Diameter | Dimension of Teeth | No.of teeth | |||
| Inch | mm | length | Thickness | Height | |
| 10" | 250 | 40 | 3 | 12/15/20 | 17 |
| 12" | 300 | 40 | 3 | 12/15/20 | 21 |
| 14" | 350 | 40 | 3.2 | 12/15/20 | 24 |
| 16" | 400 | 40 | 3.4 | 12/15/20 | 28 |
| 18" | 450 | 40 | 4 | 12/15/20 | 32 |
| 20" | 500 | 40 | 4.2 | 12/15/20 | 36 |
| 24" | 600 | 40 | 4.6 | 12/15/20 | 42 |
| 28" | 700 | 40 | 5.6 | 12/15/20 | 42 |
| 32" | 800 | 40 | 5.6 | 12/15/20 | 46 |
| Marble blades segment dimension | |||||
| 10" | 250 | 40 | 3 | 8/10 | 18 |
| 12" | 300 | 40 | 3 | 8/10 | 22 |
| 14" | 350 | 40 | 3.4 | 8/10 | 25 |
| 16" | 400 | 40 | 3.6 | 8/10 | 29 |
| 18" | 450 | 40 | 4 | 8/10 | 32 |
| 20" | 500 | 40 | 4.2 | 8/10 | 36 |
| 24" | 600 | 40 | 4.6 | 8/10 | 42 |
| 28" | 700 | 40 | 5.6 | 8/10 | 42 |
| 32" | 800 | 40 | 5.6 | 8/10 | 46 |
| Single/Multi blades segment dimension | |||||
| 36" | 900 | 24 | 6.0/6.8 | 12/15/20 | 64 |
| 40" | 1000 | 24 | 6.4/7.2 | 12/15/20 | 70 |
| 48" | 1200 | 24 | 6.5/7.5 | 12/15/20 | 80 |
| 56" | 1400 | 24 | 7.5/8.5 | 12/15/20 | 92 |
| 64" | 1600 | 24 | 8.4/9.2 | 12/15/20 | 108 |
| 72" | 1800 | 24 | 9.2/10 | 12/15/20 | 120 |
| 80" | 2000 | 24 | 9.5/10.5 | 12/15/20 | 128 |
| 88" | 2200 | 24 | 10.5/11.5 | 12/15/20 | 132 |
| 100" | 2500 | 24 | 11.5/12.5 | 12/15/20 | 140 |
| 120" | 3000 | 24 | 12.5/13.5 | 12/15/20 | 160 |
| 140" | 3500 | 24 | 12.5/13.5 | 12/15/20 | 180 |
| Other specifications of diamond segment are available upon request. | |||||
Q1:Are you a factory or trading company?
A:We are factory.
Q2:Where is your factory located?How can I visit you?
A:Our factory located in Quanzhou City,Fujian Province,China.You can fly to Xiamen International Air Port or Jinjiang Air Port,and we will you pick you up.Welcome you to visit our factory.
Q3. How is your quality?
A. We have a very seriously control system(PDCA principle and 7S) and . We guarantee the high performance of our products.
Q4.What we should do if your products can not run well?
A:Give us detailed report.Analyze the reason.
Try to find a way to solve the problem.If it's our problem and not possible to solve then will give replacement.
Q5. Do you have different quality for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different typology respectively.
| Prod Model: | HZ-MDCB |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: | Diamond Cutting Blade |
| Shape: | Round |
| Manufacturing Arts: | Welding |
| Usage: | Concrete Cutting |
| Customized: | Customized |
| Thickness: | According to Diameter of Diamond Blade |
| Brand: | Huazuan |
| Saw Blade External Diameter: | 300-1200mm |
| Specification: | 12"-48" |
