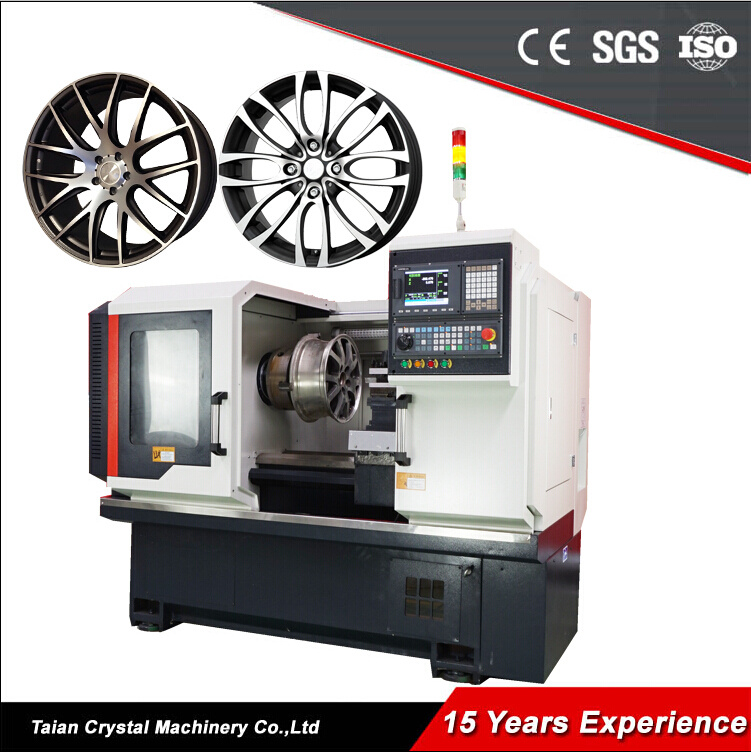

Diamond Cut Machine Price Wheel Lathe CNC

Diamond Cut Machine Price Wheel Lathe CNC
Price: US $ 14000-20000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Diamond Cut Machine Price Wheel Lathe CNC

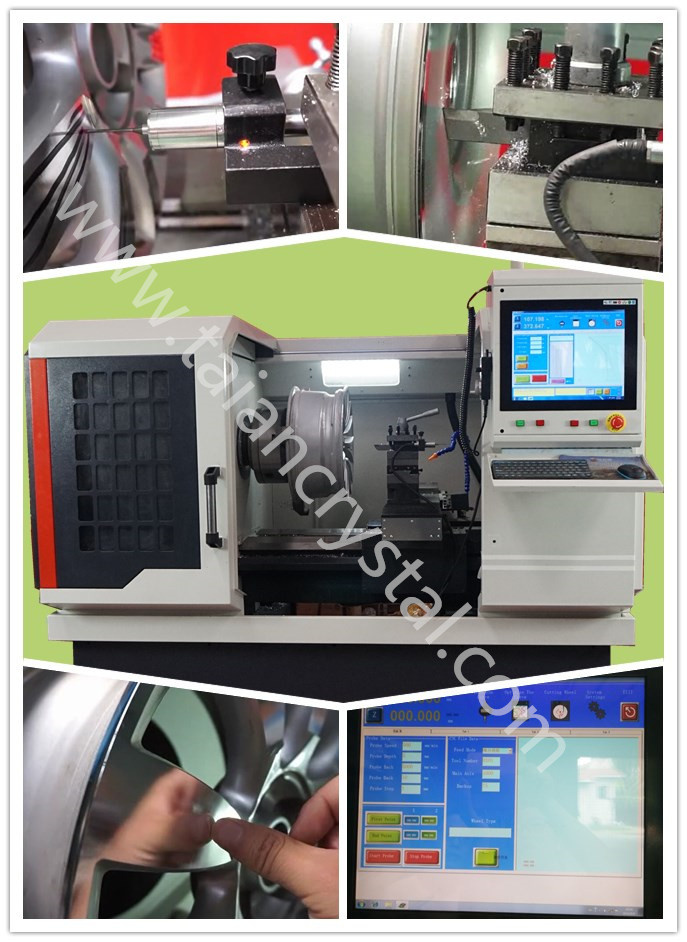

Standard configuration:
1. Diamond  Cutter  1 set;
  2. 3-Jaws Chuck(With Special Soft Jaws)
  3. Pioneer Sensing Probe  TP300;
  4. Taiwan SYNTEC CNC Control
  5. Manual Quick Change Toolpost,Four-station;
  6. Work Lighting System;
  7. Automatic Lubrication System;
  8. Cooling System;
  9. Full Enclose(Security Guard Door);
  10. Tools&Tool Box
  11. Specific Digital Optimization Software;
  12. Training Video CD;

Specifications

ITEMS
AWR28H
Max. swig over bed (mm)(inch)Φ770 (30')
Max. Size of alloy wheel (inch)            Φ720 (28')
Adjustable stroke of carrier in X direction  100mm
Cross slide travel (mm)390
Width of the rail (mm)300
Length of the rail (mm)1300
Size of the three-jaw chuck (inch)12'
Range of spindle speed (RPM)50~2000
Spindle speed controlAutomatic
Spindle bore  (mm)Φ82
Taper of spindle bore1:20(Φ90)
Max. size of tool post25×25mm
Stations of tool carrier4 position
Min. setting unit of motor(Z) long    0.001mm,
(X) cross   0.001mm
Moving speed of post(Z) long     8m/min,
(X) cross    6m/min
Motor power7.5KW
Mchine base(cast iron base)Whole
Machine size(L×W×H) (mm³)2140 ×1600×1860
Package size2300×1750×2100
Net weight2600kgs





Company profile:


Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a
professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE
CENTER. With 5, 000sqm workshops and offices, we have more than 15 years
experiences in CNC machine research and production. Our machines have been
exported more than 40 countries. We welcome all customers and friends to come to our company!

  Why choose us?

1. Choose of accessories: All of accessories of our CNC machine are from famous factory. Important parts are imported.
2. Advanced design: Professional R&D Team optimize and improve the design of
our machine.
3. Multi CNC system brand: GSK, SIMENSE, FANUC,SYNTEC can be supplied as your request.
4. Global strategy: our machines have been exported more than 40 countries and
win customer's high praise.

Contact me





Prod Model: AWR28H
CNC System: GSK, Siemens
Spindle Bore: 60mm
Max.Length Of Work Piece: 750mm
Range Of Spindle Speed: 100-2500rpm
Taper Of Spindle Bore: Mt5
Max. Swim Over Bed: 400mm
Stations Of Tool Carrier: 4
Motor Power: 5.5kw
Packing Size (mm): 2050*1400 *1650mm
Net Weight: 1800kg
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!

Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
