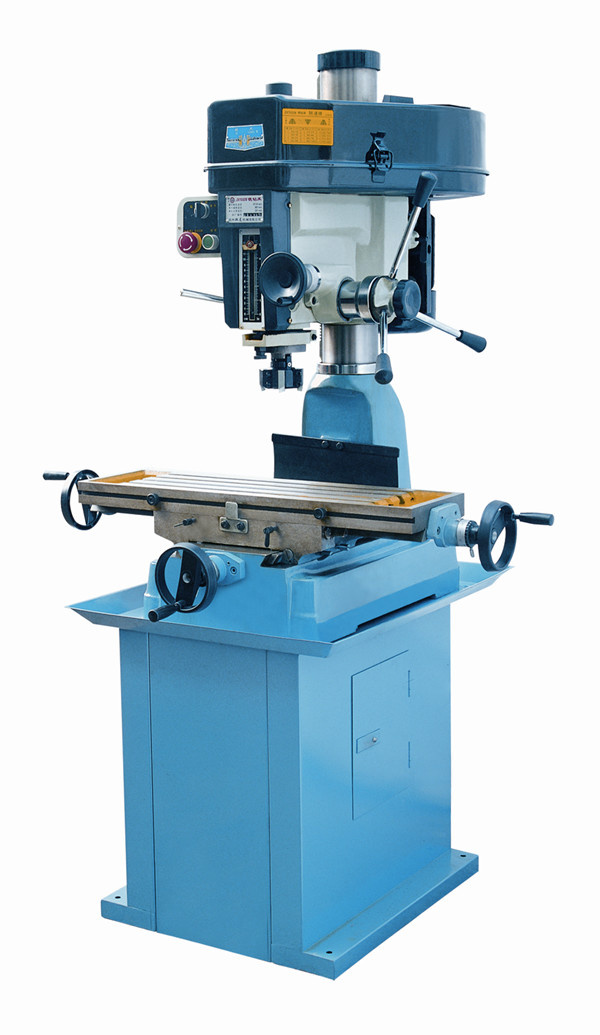

Diamond Core Drilling Milling Rig Machine

Diamond Core Drilling Milling Rig Machine
Price: US $ 600-900/Piece
Min Order: 1/Piece
Pay Type: T/T
Below pls see drilling and milling machine-all models and specifications.
More quatities, more competitive price.
Any questions, pls don't hesitate to contact me

ModelZX7045ZX-40ZX7032ZX7025ZX7020ZX7016
Max drilling capacity45mm31.5mm31.5mm25mm20mm16mm
Width of face milling80mm80mm80mm63mm50mm50mm
Diameter of vertical milling28mm28mm22mm12mm12mm12mm
Spindle travel120mm120mm120mm90mm125mm100mm
Distance spindle axis to colum surface260mm272.5mm202mm202mm240mm193mm
Distance spindle nose to worktable475mm450mm460mm380mm375mm300mm
Taper of spindleMT.4MT.3MT.3MT.3MT.2MT.2
Spindle speeds range65-1380rpm95-1600rpm100-2150rpm100-2150rpm320-1320r/min320-2700rpm
Spindle speeds66121245
Size of worktable820X240mm730X210mm730X210mm585X190mm560X200mm500X170mm
Travel of worktable
(LxW)
550X200m500X175mm500X175mm370X145mm280X150mm200X90mm
Overall height1050mm1100mm1095mm930mm980mm937mm
Motor power1100W 6steps750W 4steps1500W 4steps750W 4steps1100W 6steps550W steps
G.W./N.W.370/320kg307/275kg310/275kg225/185kgkg150/145kg
Packing size105X100X122cm100X86X122cm105X100X122cm95X90X113cm90X73X96cm97X65X90cm
Prod Model: ZX7025
Max Drilling Capacity: 45mm
Width Of Face Milling: 80mm
Diameter Of Vertical Milling: 28mm
Spindle Travel: 120mm
Usage: Ore
Power Type: Electric
Type: Rotary Drilling Rig
Condition: New
Jiangyin Chuangda Machinery Industry Co., Ltd. is located in Zhouzhuang Town, Jiangyin City, Jiangsu Province. Our factory is specialized in producing Hydraulic balers, briquetting presses, Alligators, as well as firefighting equipment and machinery, etc.
Most of our machines are used in recycling process in recycling companies and steel factories, and they use our machines to help recycle and compress waste metal & non-metal materials to save the space for delivery and store, and also help reuse the waste materials.

We have 150 employees and 17 engineers and technicians, and our factory also cooperates with experts with rich experience and innovative technology, guaranteeing the good quality of our presses and improvement in R&D.

We sincerely welcome friends from recycling, metallurgy & other fields to visit our factory and cooperate with us. We have exported equipment to East Europe, South Africa, America, Asia, the Middle East, and many other worldwide countries and regions. We have pleasant cooperation with all our customers.
