XY-130 is a 130m Hydraulic driven drill rig, with Small size, mounted on Trailer, easy to transport; Can drill both soft and hard stratum; We offer you Complete set at Very economical price.
Ever exported to Chile, Columbia, Peru, Kenya, Tanzania, Nigeria, Malaysia and so on.

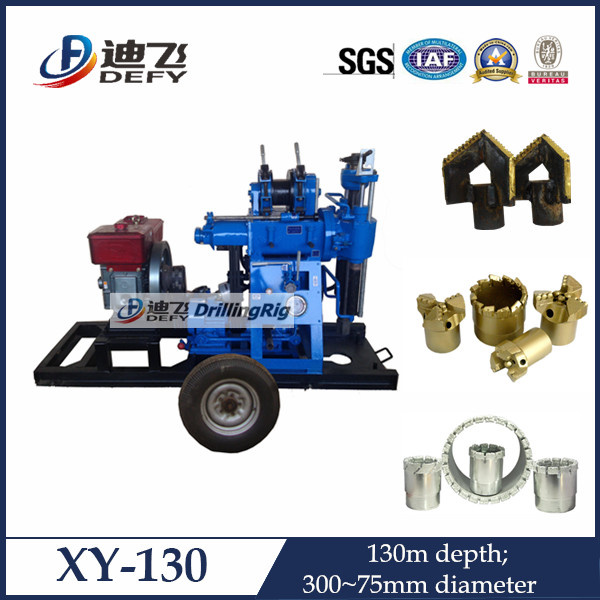

DEFY BRAND/ XY-130 Diamond Core Drilling Machine Mounted on Wheel Trailer
*130m depth, diameter from 300mm to 75mm
*Hydraulic system combined with mechanical operation
*Can be used for diamond coring, boreholes and water well projects.
*Different models for 100m, 130m, 150m, 180m, 200m and 600m for your choice.
**********
For more details, prices, and other models, please contact:
Ms. Sophie Nie
Cell: 0086-15639080652
Tel.: 0086-37155819257
Technical Specification of XY-130 and the other Models of XY series drilling rigs for your choice:
|
Specifications |
|
1.Overall parameters |
|
Drilling depth |
130m |
|
Maximum open hole caliber |
300mm |
|
End hole caliber |
75mm |
|
Diameter of drill rod |
50mm |
|
Drilling angle |
90~75 ° |
|
2. Vertical Spindle |
|
|
Rotating speed |
140, 295, 470,790,1010 r/min |
|
Feeding stroke |
450mm |
|
3.Hoist |
|
|
Max. single line hoisting capacity |
1600Kg |
|
Diameter of wire rope |
12mm |
|
Rotary speed of winding drum |
35m |
|
Volume of winding drum |
245mm |
|
Hug floodgate belt width |
70mm |
|
4.Mud pump |
|
|
Type |
Horizontal single urn twin-action |
|
Rate of flow |
95/77L/min |
|
MAX. pressure |
1.2MPa |
|
Working pressure |
0.7MPa |
|
5.Power |
|
|
Diesel engine ZS1115 |
18HP, 2000r/min |
|
Electrical motor Y-160-4 |
11KW, 1460r/min |
|
Model |
Drilling Caliber |
Max. Drilling depth |
Movable Chassis |
Feature |
|
XY -100 |
7 5~ 30 0mm |
100m |
2-wheel trailer |
Disassemble drill tower;
Small in size. |
|
XY -130 |
7 5~ 30 0mm |
1 3 0m |
2-wheel trailer |
|
XY-150 |
7 5~ 40 0mm |
150m |
2-wheel trailer |
|
XY -180 |
7 5~ 40 0mm |
1 8 0m |
2-wheel trailer |
|
XY -200 |
7 5~ 40 0mm |
200m |
2-wheel trailer |
|
XY-200F |
7 5~ 40 0mm |
200m |
4-wheel trailer |
Integrative drill tower;
Easy to transport. |
|
XY-200C |
7 5~ 40 0mm |
200m |
crawler |
|
XY-600F |
7 5~ 50 0mm |
6 00m |
6-wheel trailer |
