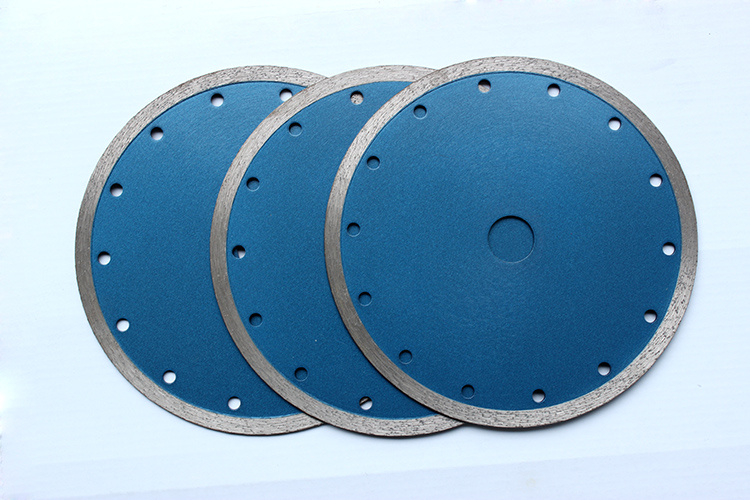

Diamond Continuous Rim Saw Blade (Sintered For Wet Cutting)

Diamond Continuous Rim Saw Blade (Sintered For Wet Cutting)
Price: US $ 1.8-23.4/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram


Product Information:

Product name

Diamond Continuous Rim Saw Blade(Sintered For Wet Cutting)

   Brand:

Huazuan or OEM

 Specification:



1.Size:4"-9"(105mm-230mm)

2.Segment height:8/10/12mm

3.Inner hole:16mm/20mm/22.23mm/25.4mm



  Features:


Multi-application saw blades suitable for fast ,free,smooth cutting.

The adjustment of process technology makes our blade safer,sharper and more universal.

  Application


Tile,bricks,brick blocks,concrete,marble,granite,stone and many other hard and brittle materials.



  Machinery

Angle grinder,circular saw,masonry saw,table saw

  Technology

Cold pressing and hot pressing

Quality Control



1. Strict Raw material inspection

2. Professional formula

3. Production process control(PDCA+7S Principle)

4. Do some cutting testing to sure the using function

5. Products pass SGS inspection



   Our advantage

1.High sharpness
2.Rich experienceMore
3.Stable quality
4.Price-performance ratio

     MOQ

20PCS for each size

  Delivery

Sample:7-12 working days after receiving payment.

Big order depend

  Certification

ISO9001 and SGS product quality control

 Main market

Iran,India,American,Poland,Brazil,Germany,Egypt,Russia etc.


Product Specification:

Diameter

Bore

Segment

Segment

mm

inch

Size(mm/inch)

Thickness(mm)

Height(mm)

105

4"

20/0.787"

1.8

8/10/12

110

4.3"

20/0.787"

1.8

8/10/12

115

4.5"

22.23/0.875"

1.8

8/10/12

125

5"

22.23/0.875"

2.0

8/10/12

150

6"

22.23/0.875"

2.2

8/10/12

180

7"

22.23/0.875"

2.4

8/10/12

200

8"

22.23/0.875"

2.4

8/10/12

230

9"

22.23/0.875"

2.6

8/10/12

250

10"

22.23/0.875"

2.8

8/10/12

 Other specifications are available upon request.

Product Image:

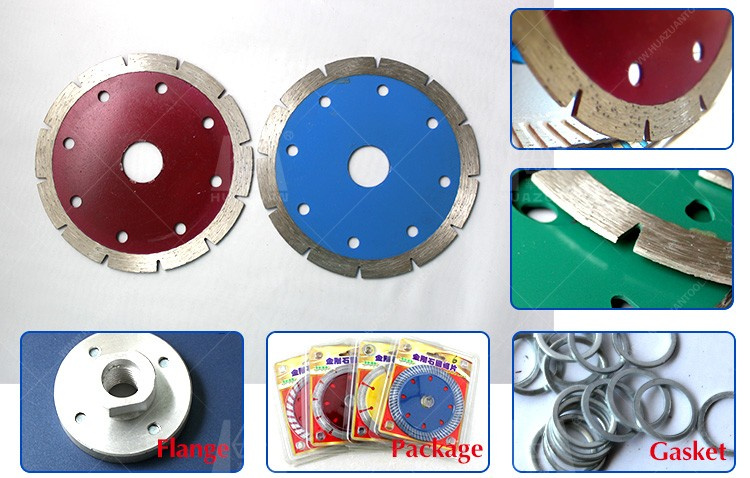

1.Segmented Saw Blade:

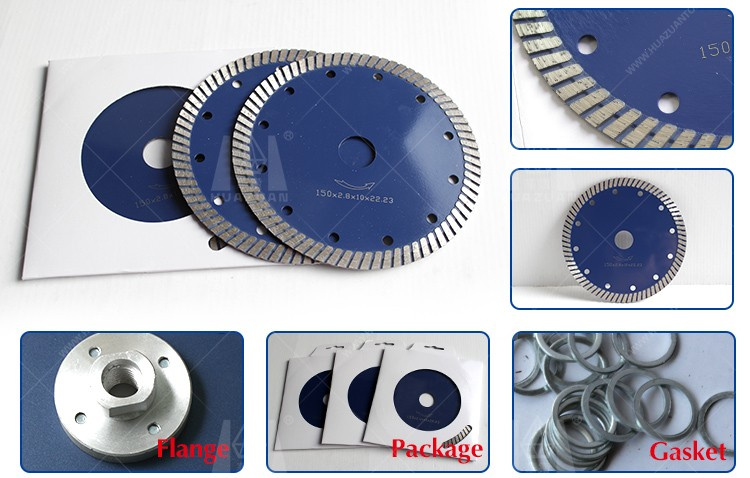

2.Turbo Saw Blade:

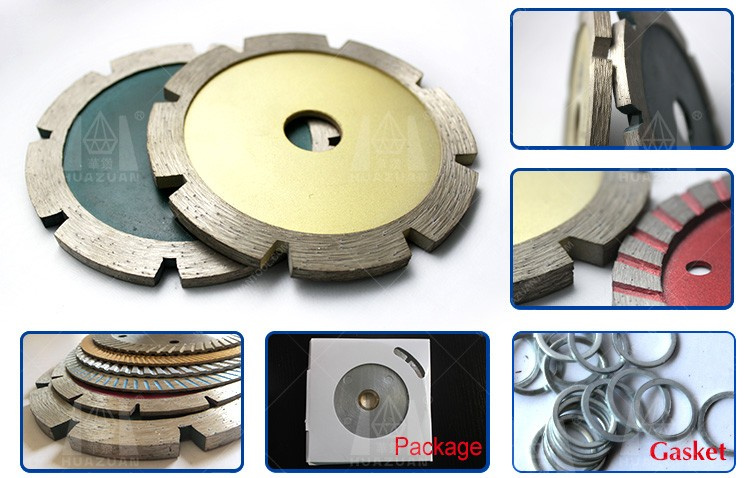

3.Tuck Point Blade:

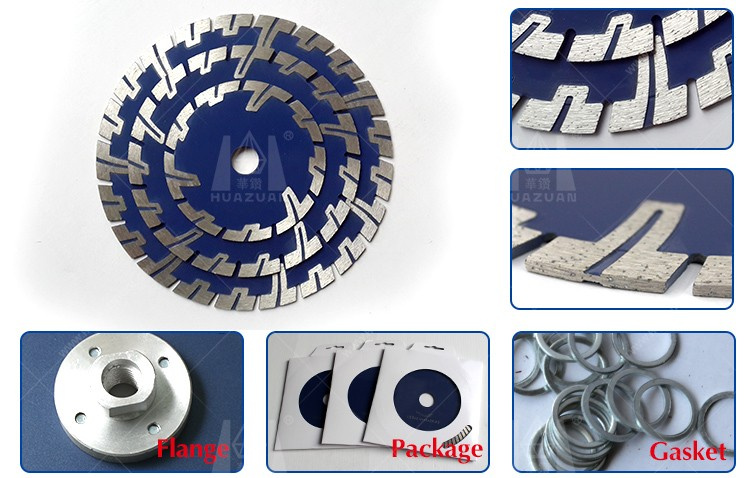

4.Dry Cutting Blade With Protection Teeth

Attention when use:
1. Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
  when installing saw blade, the marked direction shall be kept consistent with the rotating
  direction of electric tools, and flange shall be fastened by spanner attached to electric tools.
2. Do not use any saw blade that has been deformed for being pressed of crashed.
3. When operating, operator must wear safety helmet, safety footwear and goggles,
   protective glove,additionally, if necessary operator must use earplug, mask and so on.

4. Electric tools shall have protective cover.

About Feedback:
We maintain high standards of excellent and strive 100% customer satisfaction.
Feedback is very important, we require that your contact us immediately before you give us all kinds of problem feedback.

Your inquiry will be answered within 24hours, wishing to be your long term partner.
Please do not hesitate to contact with me, we will do our best for you.
Prod Model: HZ-178
Segment Material: Diamond Powder, Cobalt, Metal
Working Condition: Wet/Dry Cut
Segment Type & Shape: Normal, Turbo; Sandwich, Groove, etc
Welding Method: High Frequency Welding/Laser Weld
Perfromance Comparison: Sharp Diamond Blade, Wearable Diamond Blade
Type: Power Tool Parts
Outer Diamond: 80mm-350mm
Inner/Bore Diamond: 25.4mm,22.23mm,20mm,16mm
Segment Height: 8/10/12mm
Thickness: 1.7mm,1.8mm,2.0mm,2.2mm
Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10, 000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools. Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers. With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology, and build the outstanding business relationship with more than 50 countries and region partners. We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients, suppliers and staffs. In recent years, company make and practice a strategic plan to"reinforce a high quality production system, create a consultant service team" and reached great success. At present, China diamond tool constantly embody the competitiveness in the world, we expect to contribute ourself to change the poor quality image of China diamond tool in the world with our effort.
