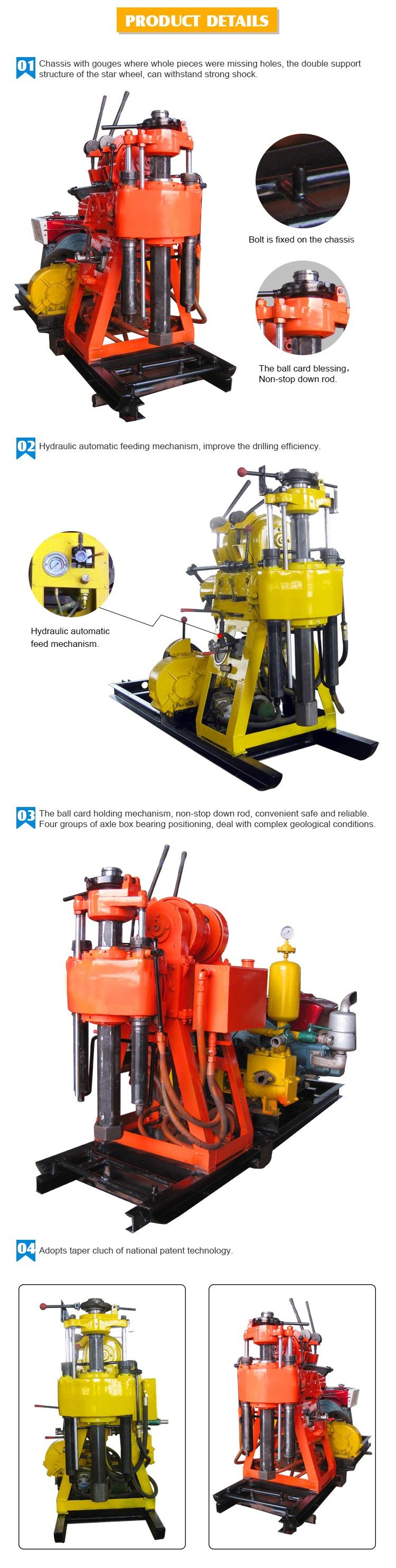

a. Keeping bracket is installed on the hosit to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
General investigation, geophysical survey, road and tall building base prospecting, drilling projects like water well, blast hole and so on. According to different geological conditions, you can choose drilling bit kinds: diamond, alloy and steel particles to drill.
What is our Drilling Rig technical paremeter?| Model | HH-130 | HH-180 | HH-200 | |
| Tech Parameter | Drilling Depth(m) | 130 | 180 | 200 |
| Open hole dia.(mm) | 220 | 220 | 220 | |
| End hole dia.(mm) | 75 | 75 | 75 | |
| Drill rod dia. | 42-60 | 42-60 | 42-60 | |
| Drilling angle(°) | 90-75 | 90-75 | 90-75 | |
| Matching power(kw) | 13.2 | 13.2 | 14.7 | |
| Weight without power | 620/750 | 620/750 | 880/970 | |
| Dimension | 2.4x0.8x1.3 | 2.4x0.8x1.3 | 2.7x0.9x1.5 | |
| Spindle | Speed(r/min) | 142/285/570 | 130/300/480/ 730/830/1045 | 64/128/287/557 |
| Stroke(mm) | 450 | 450 | 450 | |
| Winch | Max pull force(kg) | 2100 | 2100 | 2500 |
| Pull speed(m/s) | 0.35-2.23 | 0.35-2.23 | 0.12-0.95 | |
| Rope dia.(mm) | Φ9.3 | Φ9.3 | Φ12.5 | |
| Roll capacity(m) | 27 | 27 | 35 | |
| Drill Mast | Rated load(ton) | 18 | 18 | 18 |
| Height(m) | 6.5 | 6.5 | 6.5 | |
| Mud pump | Flow(L/min) | 95 | 95 | 145 |
| Max. pressure(Mpa) | 1.2 | 1.2 | 2 | |
| times/min | 93 | 93 | 93 | |
| Inlet hose dia.(mm) | 51 | 51 | 51 | |
| Outlet hose dia.(mm) | 32 | 32 | 38 |
