Home Toolbuy Products Diamond Bit Hq Nq Bq Pq Nx

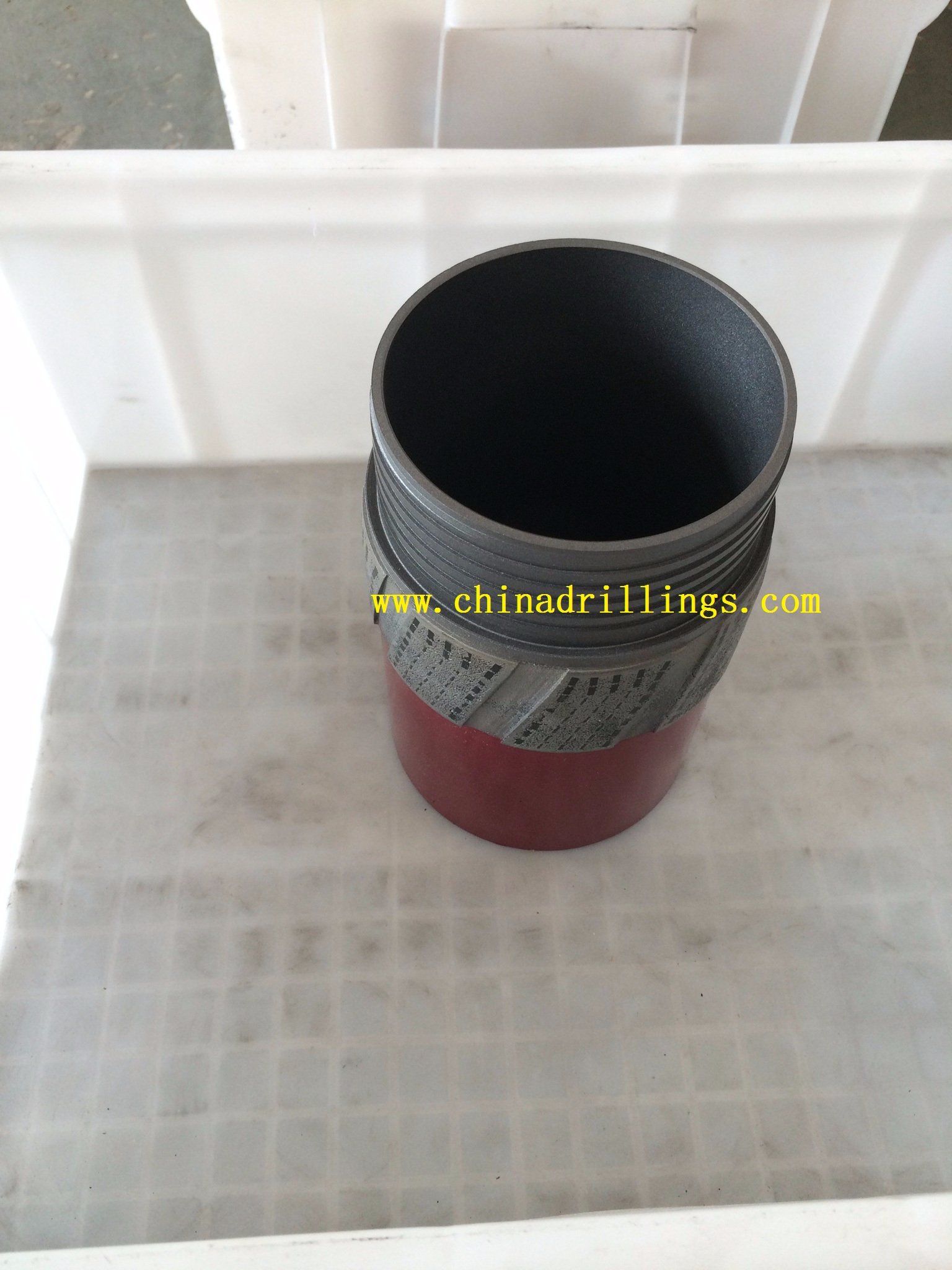

Diamond Bit Hq Nq Bq Pq Nx

Diamond Bit Hq Nq Bq Pq Nx
Price: US $ 10-15/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

To select the right bit for the job, assess the speed and power of your drill for the size and depths of the holes to be drilled and assess ground conditions such as rock type/formation and down-hole conditions.

Size: Our bits are available in all standard drilling sizes . Also, non-standard sized bits can be produced according to requirements from clients.
Crown Height: Our offers crown impreg depths of 9mm, 12mm, 16mm and 25mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.
Waterways: Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

Threads:

standard threads as well as regional thread types required by clients are available.

Compatibility:

Our diamond bits and reaming shells are designed to be compatible with all standard core barrels from other suppliers.

Matrix: Our impregnated bits matrices can be selected according to the chart below

Series number

Rock

11

magnetit,metamorphschist,gneiss,granite,basalt,gabbro,rhyolite,diorite,conglomerate,taconite

10

magnetit,metamorphschist,gneiss,granite,basalt,gabbro,rhyolite,diorite,conglomerate,taconite

9/10

andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt,gabbro,rhyolite,diorite

9

andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt,gabbro,rhyolite,diorite

8

dolomite,marble,peridotite,andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt

7/8

dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite,andesite,pegmatite,hematite

7

dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite,andesite,pegmatite,hematite

6/7

med-hard limestone,hard limestone,hard shale,dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite

6

med-hard limestone,hard limestone,hard shale,dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite

5

claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone,med-hard limestone,hard limestone,hard shale,dolomitic limestone

4

claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone,med-hard limestone,hard limestone,hard shale,dolomitic limestone

3

soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone

2

soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone

1

sand,soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist



Size Available as followings:

AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 T6 series: T6 76, T6 86, T6 101, T6 116, T6 131

T series: T36, T46, T56, T66, T76, T86

Non-standard also can be made as your demand









Prod Model: NQ
Processing Type: Forging
Machine Type: Drilling Equipment
Use: Rock Drilling
Material: High Manganese Steel
Weifang Sunny Power Machinery Co., Ltd. is located in China Power Center - Weifang City. Our main machinery covers as following:

1. Professionally producing diesel engines 15-318KW, diesel generators 5-2000KW, diesel hydraulic pump station and relative diesel engine driven machinery;

2. Professionally producing high quality diesel engine driven water pumps, fire fighting water pumps, mining pumps, high pressure washing pump station, piston mud pumps, sand pumps and ship used water pumps and relative pump equipments;

3. Professionally assembling diesel engine intelligent CTRL system, which can fulfill automatic control, remote CTRL, remote test, remote message communication, even off duty care.

4. Managing Drilling machinery, drilling tools and spare parts;

5. Producing and managing mining machinery, agricultural machinery and spare parts;

6. Professional producing power machinery wheel trailer, skid mounting base, sound proof case, weather proof case and spare parts.

With professional and experienced workers, supported by strong technology and advanced equipments, we successfully formed strict and perfect production procedure from design, production, testing, to after-service, which guarantee the stable quality and technology innovation. We have been approved by ISO9001 and CE.

Because of good quality and stable performance, we have been working with clients in long term worldwide. Our main markets cover European countries, American counties, Asia, Africa, Australia and so on.

We hope to work with any client, hope to win bilateral benefits.
