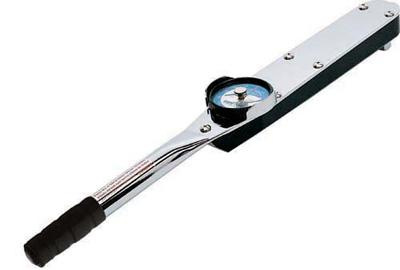

Dial Torque Wrench Dial Indicating Meter

Dial Torque Wrench Dial Indicating Meter
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Contact Supplier
Shenzhen Pride Instrument Inc.
Showroom Product Company Profile
Dial Torque Wrench
Dial Torque Wrenches are designed for the automotive, nuclear and industrial markets in addition to military installations throughout the world. This series features sturdy torsion beam design for dependable long life and accuracy. The small frame model offers working ranges from 3 in. lbs. to 50 ft. lbs. in 1/4" and 3/8" drives.
The large frame model continues from 100 ft. lbs. through 2,000 ft. lbs. with 1/2", 3/4" and 1" drives. Accuracy of both series of ± 4% meets or exceeds ASME B107.14-1994, ISO 6789 bi-directionally from 20% to 100% of scale.
 Accuracy: ISO 6789, ASME B107.14  or  GGG-W-686.±4%
DUAL SCALE TYPE


Features
  1. Sturdy body construction insures durability
  2. Easy to read laser marked dual scale
  3. Large easy to read dial is shock resistant and protected by a tough metal guard
  4. Memory needle retains highest torque reading applied
  5. Calibrated in both CW and CCW direction
  6. Accuracy: ± 4% of indicated value, CW & CCW, from 20% to 100% of full scale
Model No.Metric systemBritish measurementSpigot size
(mm)		Length
(mm)		Package
Torque range Division value Torque rangeDivision value
STW-1.8 0-18dNm.25dNm0-15in.lb.25in.lb6.3
(1/4") 		254Hollow plastic case
STW-3.50-3.5Nm.1Nm0-30in.lb.5in.lb6.3
(1/4")		254Hollow plastic case
STW-60-6Nm.1Nm0-50in.lb1in.lb6.3
(1/4") 		254Hollow plastic case
STW-90-9Nm.2Nm0-75in.lb1in.lb6.3
(1/4") 		254Hollow plastic case
STW-9A0-9Nm.2Nm0-75in.lb1in.lb9.5
(3/8")		254Hollow plastic case
STW-12 0-12Nm.2Nm0-100in.lb2in.lb9.5
(3/8")		254Hollow plastic case
STW-18 0-18Nm.5Nm0-150in.lb2in.lb9.5
(3/8")		254Hollow plastic case
STW-240-24Nm.5Nm0-200in.lb4in.lb9.5
(3/8")		254Hollow plastic case
STW-300-30Nm.5Nm0-250in.lb5in.lb9.5
(3/8")		254Hollow plastic case
STW-350-35Nm1Nm0-300in.lb5in.lb9.5
(3/8")		254Hollow plastic case
STW-700-70Nm2Nm0-600in.lb10in.lb9.5
(3/8")		378Hollow plastic case
STW-1400-140Nm2.5Nm0-100ft.lb2ft.lb12.5
(1/2")		546Hollow plastic case
STW-2400-240Nm5Nm0-175ft.lb5ft.lb12.5
(1/2")		546Hollow plastic case
STW-3500-350Nm10Nm0-250ft.lb5ft.lb12.5
(1/2")		546Hollow plastic case
STW-4800-480Nm10Nm0-350ft.lb10ft.lb19
(3/4")		708Hollow plastic case
STW-8000-800Nm20Nm0-600ft.lb10ft.lb19
(3/4")		1181Hollow plastic case
STW-10000-1000Nm20Nm0-700ft.lb10ft.lb25.4
(1")		1310Wooden case
STW-14000-1400Nm20Nm0-1000ft.lb20ft.lb25.4
(1")		1900Wooden case
STW-20000-2000Nm40Nm0-1500ft.lb30ft.lb25.4
(1")		2400Wooden case
STW-28000-2800Nm50Nm0-2000ft.lb40ft.lb25.4
(l″)		3100Wooden case
*NOTE: STW-800, STW-1000,STW-1400,STW-2000 and STW-2800 include Extension handle.

METRIC SCALE TYPE
Features
  1. Sturdy body construction insures maximum durability
  2. Easy to read laser marked single scale
  3. Large easy to read dial is shock resistant and protected by a tough metal guard
  4. Memory needle retains highest torque reading applied
  5. Calibrated in both CW and CCW direction
  6. Accuracy: ± 4% of indicated value, CW & CCW, from 20% to 100% of full scale
  7. Individually serialized with matching certificate of calibration traceable to N.I.S.T.
Model No.Metric systemSpigot size
(mm)		Length
(mm)		Package
Torque range Division value
STN-1.8 0-18dNm.25dNm6.3(1/4") 254Hollow plastic case
STN-3.50-3.5Nm.1Nm6.3(1/4")254Hollow plastic case
STN-60-6Nm.1Nm6.3(1/4") 254Hollow plastic case
STN-90-9Nm.2Nm6.3(1/4") 254Hollow plastic case
STN-9A0-9Nm.2Nm9.5(3/8")254Hollow plastic case
STN-12 0-12Nm.2Nm9.5(3/8")254Hollow plastic case
STN-18 0-18Nm.5Nm9.5(3/8")254Hollow plastic case
STN-240-24Nm.5Nm9.5(3/8")254Hollow plastic case
STN-300-30Nm.5Nm9.5(3/8")254Hollow plastic case
STN-350-35Nm1Nm9.5(3/8")254Hollow plastic case
STN-700-70Nm2Nm9.5(3/8")378Hollow plastic case
STN-1400-140Nm2.5Nm12.5(1/2")546Hollow plastic case
STN-2400-240Nm5Nm12.5(1/2")546Hollow plastic case
STN-3500-350Nm10Nm12.5(1/2")546Hollow plastic case
STN-4800-480Nm10Nm19(3/4")708Hollow plastic case
STN-8000-800Nm20Nm19(3/4")1181Hollow plastic case
STN-14000-1400Nm20Nm25.4(1")1900Wooden case
STN-20000-2000Nm40Nm25.4(1")2400Wooden case
STN-28000-2800Nm50Nm25.4(l″)3100Wooden case
*NOTE: STN-800,STN-1400,STN-2000 and STN-280 include Extension handle.

INCH SCALE TYPE
Features
  1. Sturdy body construction insures durability
  2. Easy to read laser marked dual scale
  3. Large easy to read dial is shock resistant and protected by a tough metal guard
  4. Memory needle retains highest torque reading applied
  5. Calibrated in both CW and CCW direction
  6. Accuracy: ± 4% of indicated value, CW & CCW, from 20% to 100% of full scale
Model No.British measurementSpigot size
(mm)		Length
(mm)		Package
Torque rangeDivision value
STL-15I 0-15in.lb.25in.lb6.3(1/4") 254Hollow plastic case
STL-30I0-30in.lb.5in.lb6.3(1/4")254Hollow plastic case
STL-50I0-50in.lb1in.lb6.3(1/4") 254Hollow plastic case
STL-75I0-75in.lb1in.lb6.3(1/4") 254Hollow plastic case
STL-76I0-75in.lb1in.lb9.5(3/8")254Hollow plastic case
STL-100I 0-100in.lb2in.lb9.5(3/8")254Hollow plastic case
STL-150I 0-150in.lb2in.lb9.5(3/8")254Hollow plastic case
STL-200I0-200in.lb4in.lb9.5(3/8")254Hollow plastic case
STL-250I0-250in.lb5in.lb9.5(3/8")254Hollow plastic case
STL-300I0-300in.lb5in.lb9.5(3/8")254Hollow plastic case
STL-600I0-600in.lb10in.lb9.5(3/8")378Hollow plastic case
STL-100F0-100ft.lb2ft.lb12.5(1/2")546Hollow plastic case
STL-175F0-175ft.lb5ft.lb12.5(1/2")546Hollow plastic case
STL-250F0-250ft.lb5ft.lb12.5(1/2")546Hollow plastic case
STL-350F0-350ft.lb10ft.lb19(3/4")708Hollow plastic case
STL-600F0-600ft.lb10ft.lb19(3/4")1181Hollow plastic case
STL-1000F0-1000ft.lb20ft.lb25.4(1")1900Wooden case
STL-1500F0-1500ft.lb30ft.lb25.4(1")2400Wooden case
STL-2000F0-2000ft.lb40ft.lb25.4(l″)3100Wooden case
**NOTE: STL-800,STL-1400,STL-2000 and STL-280 include Extension handle.

WARNING
• Do not exceed rated torque.
• Periodic recalibration is necessary to maintain accuracy.
• Do not use a torque wrench to break fasteners loose.
• Frequently inspect, clean and lubricate ratchet mechanism with light oil.

Prod Model: STW-12
Type: Torque Wrench
Material: Chrome-vanadium Steel
Standard: European Type
Surface Treatment: Chrome
Feature: Anti-Magnetic
Brand: Pride
