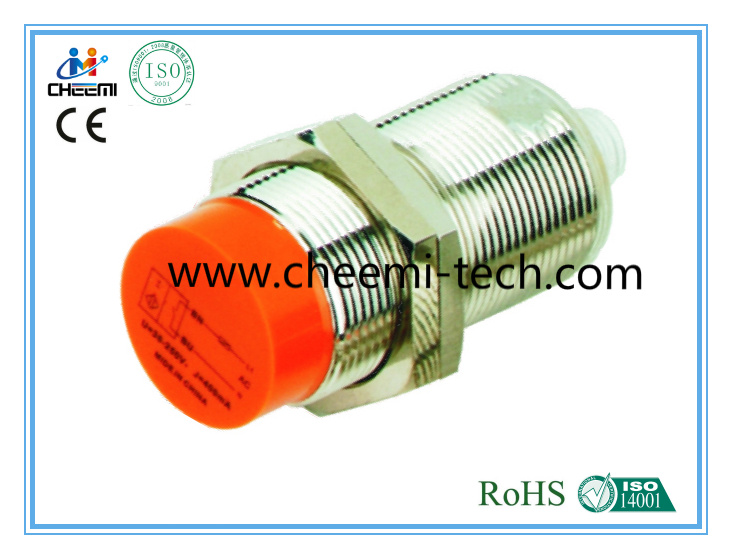

Detection Distance 15mm DC 2-Wire No M30 Inductive Proximity Sensor

Detection Distance 15mm DC 2-Wire No M30 Inductive Proximity Sensor
Price: US $ 0.1/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal

Feature
Equivalent to the same type of the other brands  (P+F and TURCK)
Power supply reversal connection protection; short-circuit protection, can directly connect with PLC
* Newly added current over-load protection; the elements are made of imported chip
* Long service life, high reliability and strong resistance property to environment
* Red LED indicates that it's available to detect the sensor operating state
Full thread shape to enlarge the installation space; can use wrench and clamp directly
* Countermeasure to improve the housing intensity and to solve disconnection
* IP67 protection structure (IEC specification)

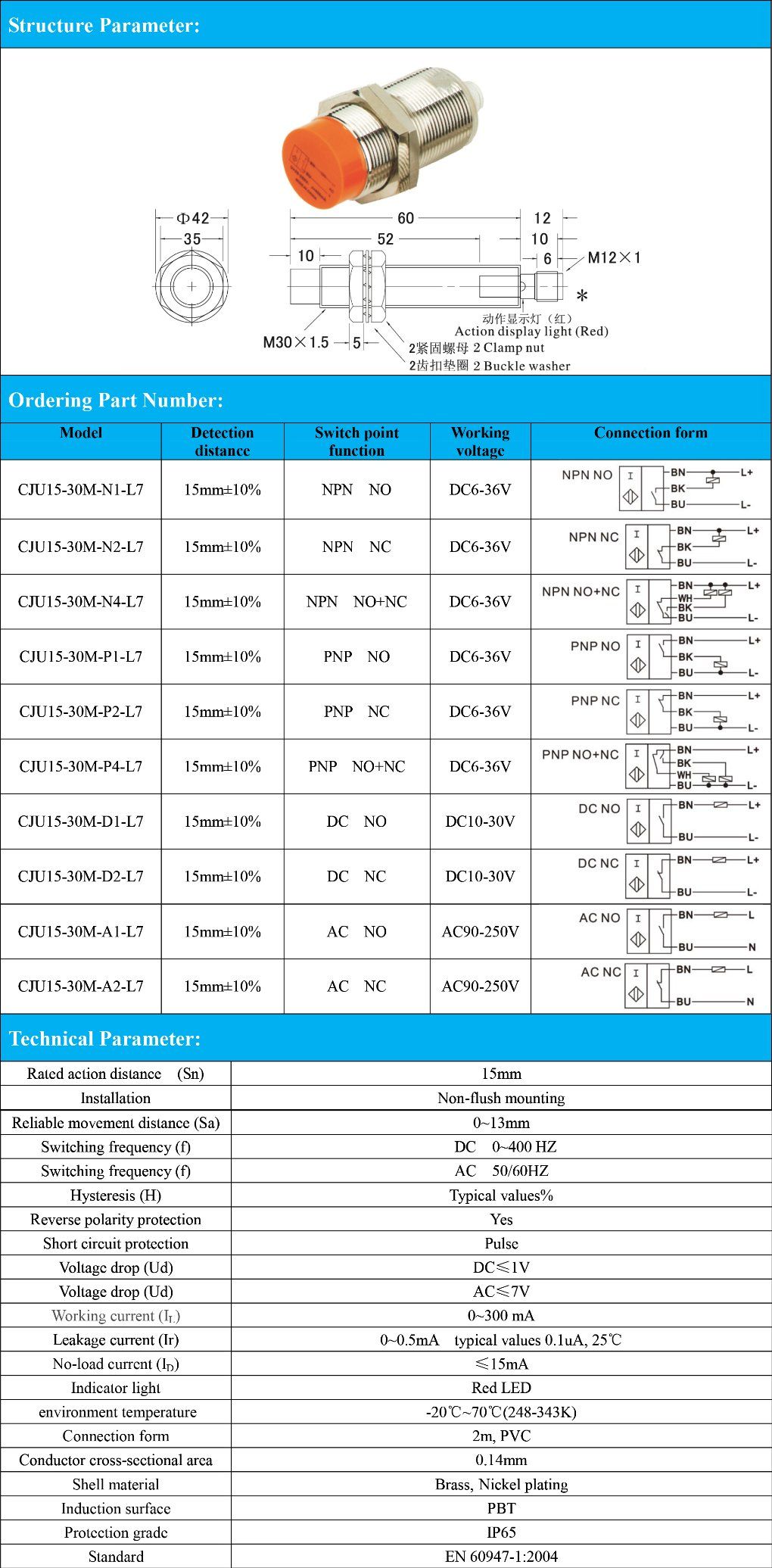

Specification



Note
* We provide FREE samples for your test!
  Purchase only when you are satisfied with the FREE samples.

Please contact us to apply FREE Trial NOW !!

* Please let us know what kind of model, working voltage, input & output signals, mounting size.
* Or tell us your techincal requirement for the sensor selection.
* OEM/ODM is welcomed.

CHEEMI TECHNOLOGY CO.,LIMITED.
Certification: ISO9001, CE, ROSH.
( Your reliable sensor-solution partner for Hall Current & Voltage Transducers, Proximity Switches/sensors, RTD Temperature Sensors, Current Transformers, Pressure Transmitter, Liquid Level Transmitter. )

Address: 22 Building, XianlongWan, Xianyin South Road, Qixia District, Nanjing City, Jiangsu Province, China.
Post code: 210000
Tel: +0086-025-85996365

Web: www.cheemi-tech.com


Package
* All our sensors will be well packed with bubble & carton.
* You can choose your own label(Screen Print or Laser Engraving).
* Can be netural packing or OEM.


Shipping
* Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.


Warranty
* We provide 1 year warranty.
* If the product is defective, please notify us within 3 days after receiving.
* All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.


Our Commitment
* Better Price than other suppliers for you because of Factory Direct Sale;
* Better Quality than before caused by our 10+ years experience about sensors;
* Fast Delivery made by our Enthusiasm;
* Timing Reply in 24 hours all about our TEAM's Passion & Patience.
Prod Model: CJU15-30M-D1-L7
Detection Distance: 15mm±10%
Supply Voltage: DC10-30V
Standard Detected Object: Iron 54*54*1mm
Response Frequency: 0.4kHz
Working Temperature: -20ºC~70ºC(248-343k)
Optional Working Status: No
Wires: Two-Wires
Standard: Standard
Certification: CE
Type: Inductive Proximity Switch
Principle: Inductive
Application: Position Sensor, Speed Sensor
Cheemi specializes in development and commercialization of monitoring & measuring solution innovation, with more than 100 workers, 5200 non-dust workshop, 12 years experience in current measurement, ISO, CE & RoHS certificated, one and half hours reach Shanghai port. This is how we keep good quality and competitive prices for global valued customers.

As the leading manufacturer and supplier in the field of sensors and measurement with more than 10 years experience, Cheemi Technology Co., Ltd provides the most effective and reliable sensor solutions which involve

1. Open & Closed Loop Hall effect Current & Voltage transducers, Current Transmitter, Leakage Transducer; Completely replace LEM hall sensors with excellent quality and performance.

2. Hall proximity switches, Inductive proximity sensors, Photoelectric proximity sensors; Equivalent to OMRON Proximity Sensors.

3. RTD Temperature sensors, temperature transmitter

4. Current transformers and potential transformers

5. Pressure sensor/transmitter

6. Liquid level sensor/transmitter

With more than a decade experience in current measurement, we have professional & ambitious team with cutting-edge manufacturing technology; We are not only dedicated to quality and total solutions for our consumers, but also committed to technical expertise service and customer satisfaction.
