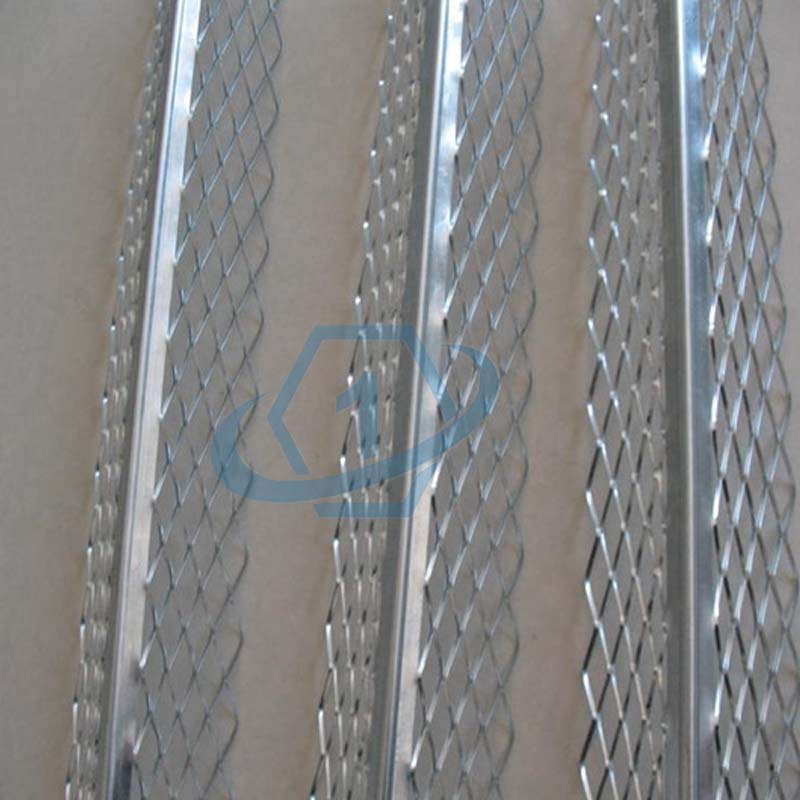

Product Description
1. Material:
Aluminum metal, stainless steel metal, nickel metal and so on.
2. Surface treatment:
Hot-dipped, electrol galvanized, pvc-coated.
3. Type A Sizes:
Long way of mesh: 12.5-200mm.
Short way of mesh: 5-80mm.
Thickness: 0.5-8mm.
Stand Width: 0.5mm-10mm.
Length: From 1M-30M.
Width: From 600-2400mm.
Packing: Pallet suit for sea transport.
Type B Sizes:
Long way of mesh: Mini 3mm.
Short way of mesh: Mini 2mm.
Thickness: 0.03-1.5mm.
Stand Width: 0.03mm-3mm.
Length: From 1M-30M.
Width: From max 1250mm.
Packing: Inner PE bag, outer carton.
4. Weaving: It is punched to mesh, including aluminum plate mesh, small steel plate mesh, steel plate mesh and stainless steel plate mesh.
5. Characteristics: It is strong and wear~resisting, lightness in weight and has good ventilation.
6. Application: Be widely used with concrete in building, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Fencing for super highway, studio, highway, reinforcing in construction, railway and bridges.
Specification of Expanded Metal Mesh |
| Sheet Thickness(mm) | Opening in Width
(mm) | Opening in Length
(mm) | Strand Width(mm) | Roll Width
(m) | Roll Length
(m) | Weight
(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Descriptions
Aluminum panel for construction cladding and curtain wall is made from high quality Aluminum alloy supplied by world famous big enterprises. The surface is coated with fluorocarbon (PVDF) paint made by PPG from USA or Akzon from the Netherlands
The Aluminum panel is composed of aluminum plate, reinforcement bars and installing racks etc.
Custom thickness of panel is 2.0mm, 2.5mm, 3.0mm and the standard dimension is 1220x2440 (mm).
The fluorocarbon (PVDF) coating has excellent corrosion and environment resistances, it can prevent ultraviolet (UV) and protect color of panel from discoloring and pulverizing. The fluorocarbon paint we're using is supplied by PPG, DuPont, Akzon, Nippon etc. As a professional manufacturer, we can produce different color, thicnkess, dimension and shape according to customer's demand and request.
Feature:Artistic Ceilings, Honeycomb Ceilings, Integrated Ceilings, Perforated Ceilings
Function:Fireproof Board Ceiling, Soundproof Ceiling, Normal Ceiling, Integrated Ceiling, Heat Insulation Ceiling, Moisture-Proof Ceiling, Mould-Proof Ceiling, Smoke-Proof Ceiling
Application:Office, Hotel, Household, Dust Free Room, Public, Curtain Wall Plate
Commodity |
Enameled aluminum panel, Marble aluminum panel, Wood grain
panel, Wire grain aluminum panel, PVDF coating aluminum panel.
Aluminum alloy A3003, A5052 high quality aluminum plate |
Surface coating | PVDF , Polyester |
| Color | All colors, Enamel grain, Marble grain, Wood grain, Wire drawing |
| Total thickness | 1.5mm,2.0mm, 2.5mm, 3.0mm |
| Standard dimension | 1220mm*2440mm |
| Warranty | More than 15 years |
Aluminum Curtain Wall Panel:
Raw materials:
1,Aluminum alloy: AA1100, AA3003, or upon request
2,Surface coating:PPG, Akzo Nobel, and Nipon | Specifications:
1, Panel width: upon request, max up to 1500mm
2, Panel thickness:1.0mm-7.0mm |
Colors
Colors from our Color Chart, RAL, Pantone international color are available, also sending us your color samples are available. | Packing& Delivery
Packing: in brown paper
Delivery: 15 days |
PVDF painted panel:
Painted Aluminum sheet features with super durability and weather resistance, and better properties to anti-acid, anti-alkali, keeping more than 15 years without fading in using as external wall cladding.
PET(Ployster) Painted panel:
It can be classified matt and glossy according to the colors. The compact molecule structure assures paint surface luster and smooth, and assures good painting on the panel surface. With an warranty of 8-10 years for weather resistance, it is specially applied to internal decoration and sign abroad.
Foshan Onebond Building Materials Co., Ltd. is the specialized foreign joint venture that manufactures green architectural decoration material_-ALUMINUM COMPOSITE PANEL, ALUMINUM HONEYCOMB PANEL and the relative products. It lies in the dense industrial area at southern bank of Yangtze River. The total investment is over US$10 million. We have advanced multi-functional fully automatic control aluminum composite panel and honeycomb panels production line to produce aluminum composite panel and the most advanced coating and chemosynthesis line to manufacture painted aluminum coil. All these advanced lines were imported from Taiwan. We can provide more than 4, 000, 000 square meters of aluminum composite panel and 2, 000, 000 square meters of aluminum honeycomb panel and aluminum honeycomb core per year. More than 250 staff including 50 technical personnel and managers. We have already passed ISO9001: 2000 Quality Control System Certification, and obtained various honor titles such as "Top 10 Most Famed Brands of National Aluminum Composite Panel and honeycomb panel Market", "Products Introduced by China Engineering Construction", "Assured quality, qualified products according to State's Standard" and "Environmental Building Material Products", etc. It is also the director unit of aluminum composite material in China Building Material Industry Association.
