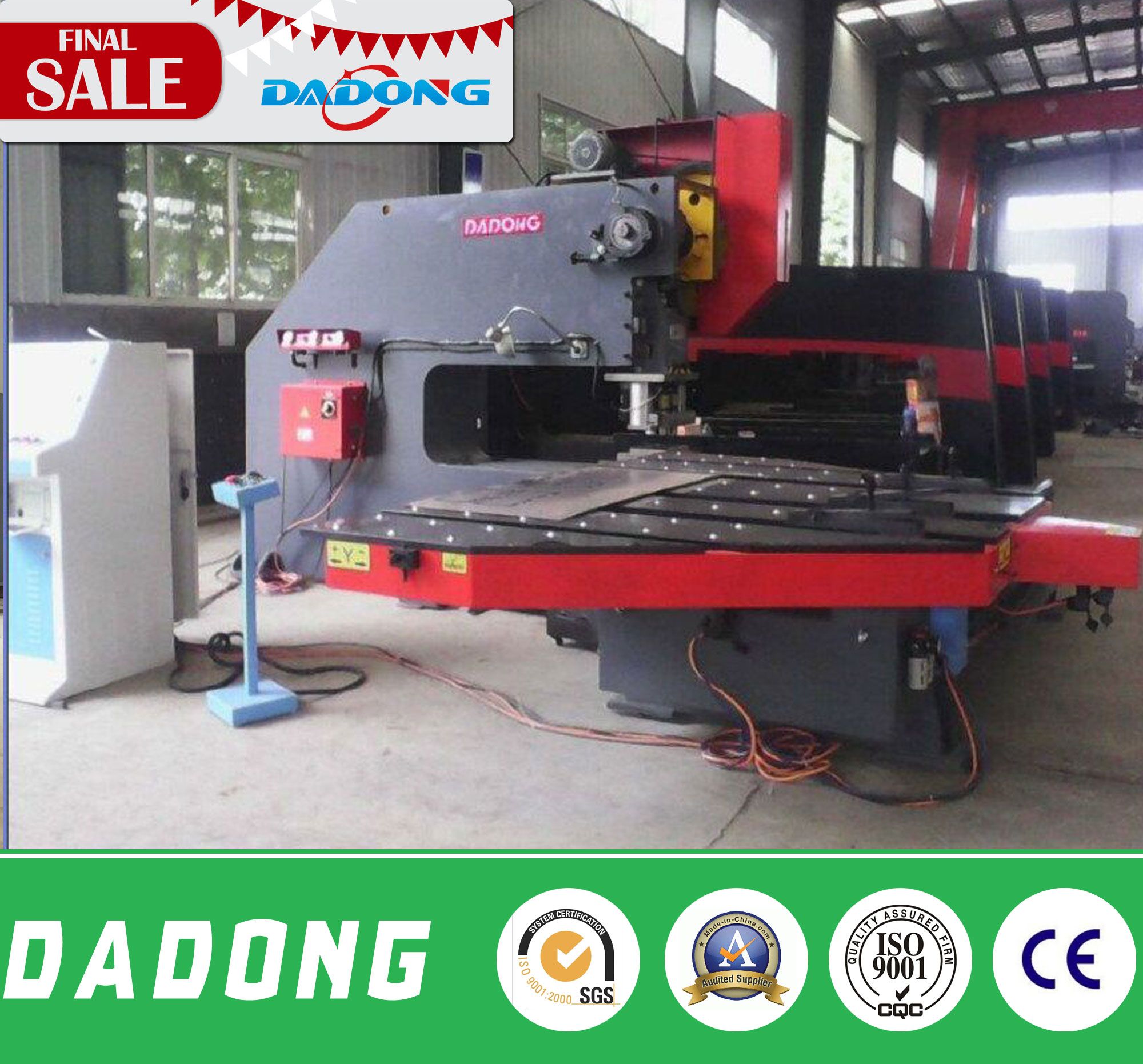

8 Tool stations punching machine
Type: D-Z258
Features:
1.Special structure roulette, one of the die life accurance.
2.Blow head gear transmission, patented design, transmission accuracy and stability.
3.Mold to adopt a common standard mold, reasonable arrangement.
4.The main transmission parts screw, rails, etc. are imported from Taiwan.
5.The main electrical components are imported.
6.Simple and intuitive software, functional
7. CAD graphics directly into the machining program.
Specification:
| Type | D-Z258 |
| Punch Force(KN) | 250 |
| Hit speed(Hpm) | 150 |
| Sheet size(mm) | 2500x1250 |
| Max. sheet thickness(mm) | 3 |
| Processing accuracy(mm) | +-0.1 |
| Travelling speed(m/min) | 30 |
| Station type(pc) | A:4 B:4 |
| Air pressure(Mpa) | 0.55 |
| Throat size(mm) | 1275 |
| Overall dimensions(mm) | 4800x3200x2300 |

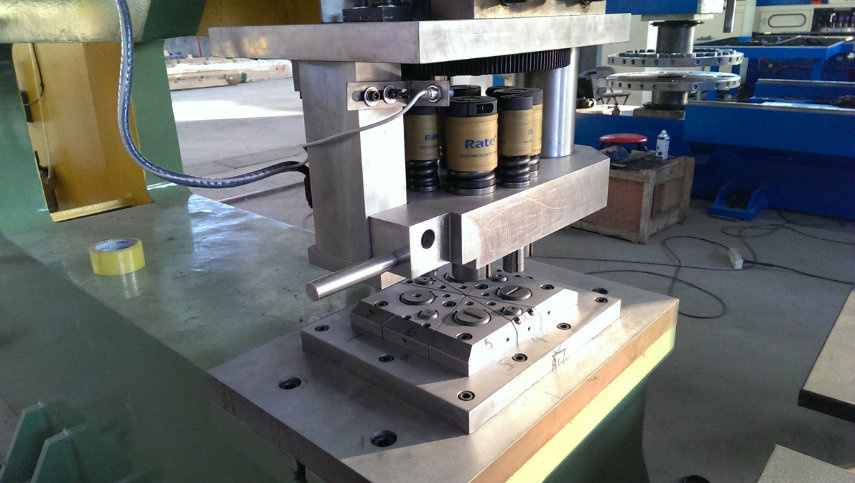

The turret tools

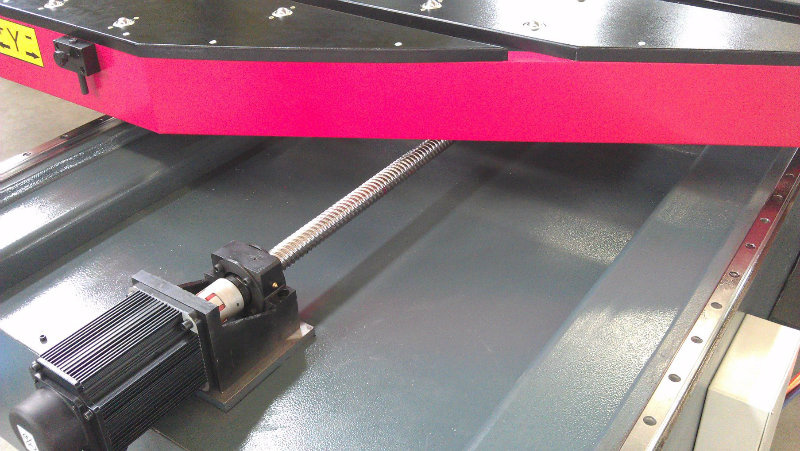

Servo motors, precision guide screw
The petent:
Dadong on different Fair.
Choose Dadong, Gain more success!
| Prod Model: | P25 |
|---|---|
| Process Usage: | Metal-Cutting CNC Machine Tools |
| Movement Method: | Point to Point Control |
| Control Method: | Open-Loop Control |
| Numerical Control: | CNC/MNC |
| Performance Classification: | Economical CNC Machine Tools |
