Cw61100c Large Size Big Bore Conventional Lathe Machine

Cw61100c Large Size Big Bore Conventional Lathe Machine
Price: US $ 30000-50000SET
Trade Terms: FOB,CIF
Min Order: 1SET
Pay Type: T/T
CW61100C/lathemachine/lathe/machine/machinery/large size engine lathe/machine tool/conventional lathe/manual lathe/big bore machine

Cw61100c Large Size Big Bore Conventional Lathe Machine

PRODUCT FEATURES:
1.The surface of the bedways is supersonic frequency handened.
2.The spindle system is high in rigitidy and accuracy.
3.Rapid feed structure is available on Apron.
4.Clutch in headstock makes the lathe start.


Standard accessories:
ø 1000 4jaw chuck
Centers M. T. No 6
Wrenches
Morse reduction Metric 80/M. T. NO. 6
Morse reduction Metric 140/M. T. NO. 6
Operation manual


Extra accessories:
ø 1250 4jaw chuck
Follow rest
Steady rest




ITEMSCW61100C/ CW62100CCW61125C /CW62125CCW61140C/ CW62140C

Max. swing over bed
Ø 1000 mmØ 1250 mmØ 1400v

Max. swing over carriage
Ø 600 mmØ 865 mmØ 1015 mm

*Over gap
Ø 1380 mmØ 1750 mmØ 1900 mm

Width of bed
755mm

*Effective length of gap
590mm

Max. length of work piece(two centers)
1.5/2/3/4/5/6/8/10/12 m

Max. turning length
1.35/1.85/2.85/3.85/4.85/5.85/7.85/9.85/11.85

Max. Weight of work piece(between centers)
5000Kg

Spindle nose
A2-15

Spindle bore
Ø 130 mm

Cone hole diameter and taper of spindle hole
Metric Φ 140 1: 20

Number of speeds
24(Normal)12(Reverse)

Spindle speed scope
2.5~250r/min

Pitch of longitudinal ball screw/diameter
12mm/ Ø 70mm

Number of cross feeds
97
Feed range of tool post for per rev. of spindle(Longitudinal)0.1~12mm/r
Feed range of tool post for per rev. of spindle(Cross)0.05~6mm/r
Feed range of tool post for per rev. of spindle(middle tool post)0.025~3mm/r

Rapid feed for Axis Z
3740mm/ minute

Rapid feed for Axis X
1870mm/ minute

Rapid feed for Axis middle tool post
935mm/ minute

Thread cutting  for Metric pitch threads(range/no. )
1~120mm/45

Thread cutting  for Whit-worth pitch threads(range/no. )
30~1/4 TPI/42

Thread cutting for Module threads(range/no. )
0.5~60mm/46

Thread cutting  for D. P. threads(range/no. )
1/2~60 DP/48

Vertical distance from spindle center to installing basis
41 mm51 mm

Size of tool shank
40× 40mm50× 50mm

Max. travel of cross slide
720mm

Swing angle of tool post
± 90°

Max. travel of middle tool post
400 mm

Max. travel of top slide
200 mm

Tailstock taper of bore
Metric 80

Tailstock sleeve travel
300mm

Tailstock sleeve dia.
Ø 160mm

Power of main motor
22 KW

Rapid feed motor power
1.5 KW

Power of cooling pump
0.25 KW

3m Overall dimensions(L× W× H)
6000× 1860× 1700 mm6000× 1860× 1825 mm6000× 1860× 1900 mm

Net weight(3m)
11200 Kg12000 Kg12500 Kg

Note: The items with " *" are only for 62 series.
For each additional machine length of 1m, there will be additional net weight of 1100kg
DELIVERY:
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

PAYMENT:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)


WARRANTY:
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. And also parts caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)

Our mission:

Kaida is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines. We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005 to ensure the best in quality.


Agents wanted:

We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop KD to a global brand. Wherever you are from, we are looking forward to explore new market with you.



FAQ :

1. Are you a factory or trading company ?
RE: Kaida was founded in 1952 and has a history of more than 60 years in manufacturing lathes. Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise. In 1992, we began to explore overseas market step by step. Gradually, our partners from around the world become more and more. We believe that a brighter further is waiting for us.


2. What's your advantage?
RE: We have strong R&D ability which can support us to offer "Turnkey Engineering Service"
-Technology Assessment;
- Process Analysis
- Jigs planning
- Production process
- Trial cut processing
- Education & Training

3. Question : Where is your factory located ?  How can I visit there ?

RE: We are located in Zhuji City. Which is only 2 hours' away from Shanghai by train, and 20 mintues' from Hangzhou. Also you can fly to Hangzhou Airport, it is only 45 minutes and we will pick up you.




Prod Model: CW61100C - CW62140C
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Bore: 130mm
Max Swing Over Bed: 1000mm-1400mm
Bed Width: 755mm
Type: Horizontal Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Manual
Setting Mode: Floor-type
Precision: Normal Precision
Processing Accessory: Chuck Center
Tool Holder: 4 Way Tool Post

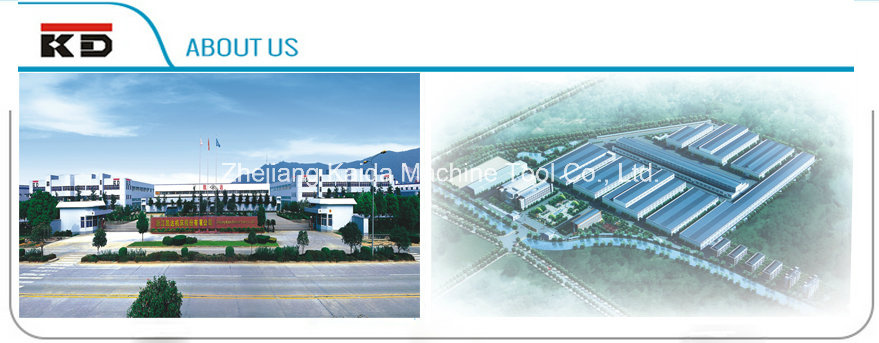

Zhejiang Kaida Machine Tool Co., Ltd

Zhejiang Kaida Machine Tool Co., Ltd is located in Zhuji City, China.And only 45 minutes away from Hangzhou Airport.

Our company was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and 1000 staff.Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005.

We have a wide variety of products, which can meet different customers' needs:Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe, manual lathe.

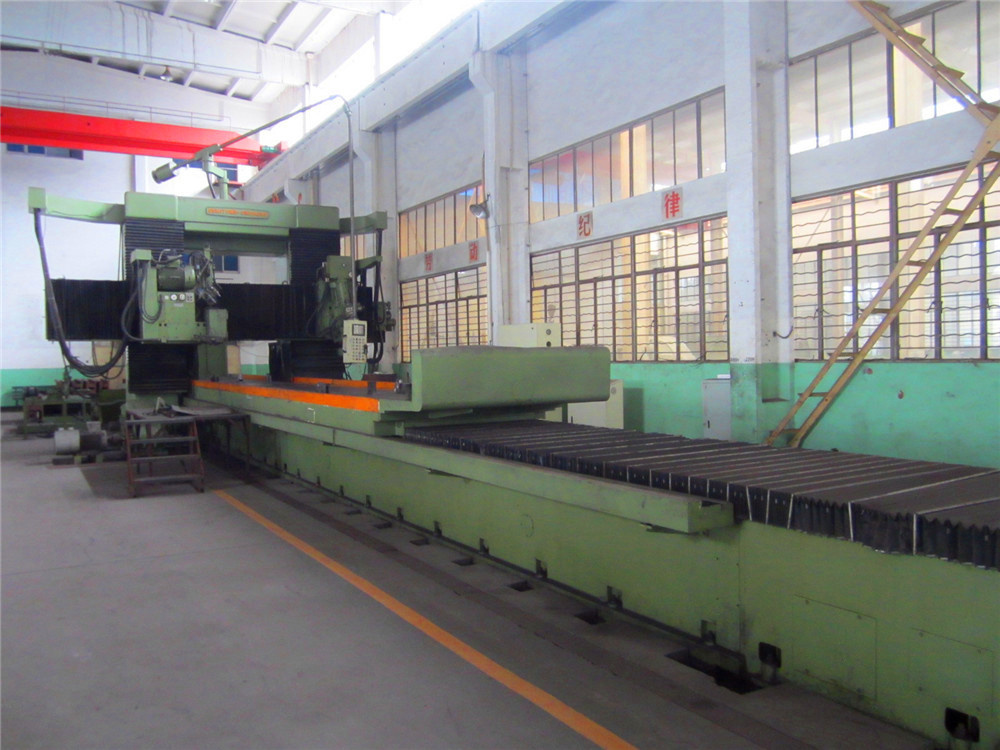

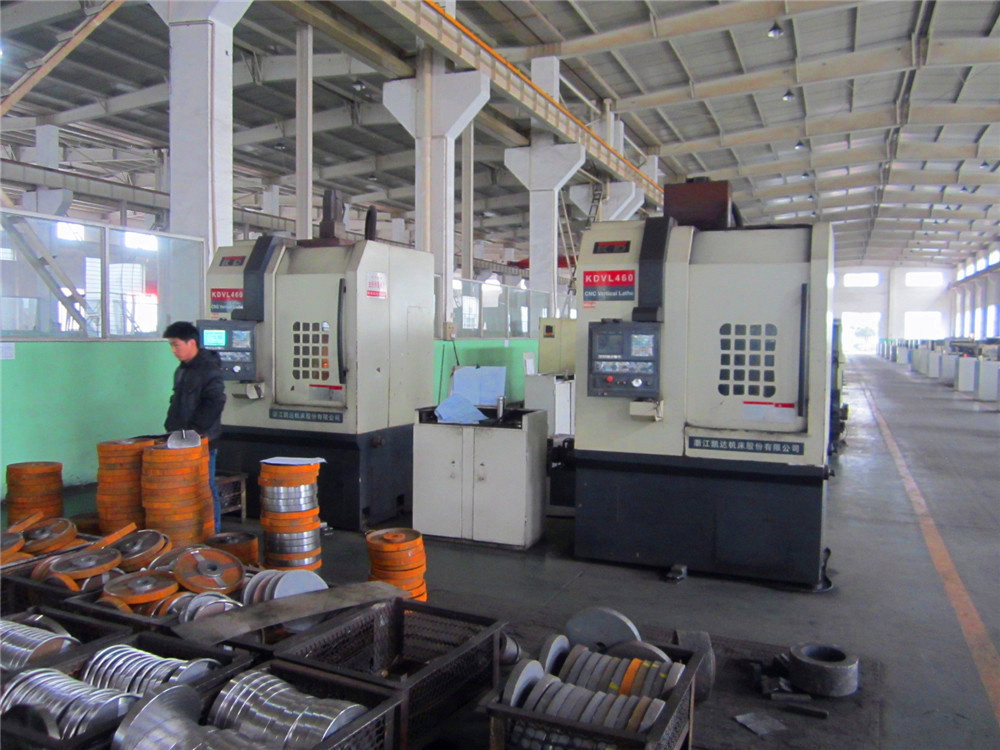

We have a full set of equipment including forging, machining, heat-treating, sheet metal processing, assembling and painting.Specialized technicists in every field enable us to assist our customer in use, learning and programming.Efficient service earn us trust and loyalty from customer.

As an established company, professional competence and perfect service make us to exploit and develop a huge international marketing net.Our export experience started from European and America.We have exported to more than 100 countries.Our main markets are Europe, America, South America, India, Southeast Asia, South Africa.

We are fully confident to meet any challenges or opportunities that present to us.
