Cw61100 Heavy Duty Lathe Machine with Best Price

Cw61100 Heavy Duty Lathe Machine with Best Price
Price: US $ 5000-20000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
SHANGHAI HUANTU TECHNICAL INDUSTRY CO., LTD
NO. 1187 AKESU Road, Jiading District, SHANGHAI, CHINA
Web: huantumachinery.en.alibaba.com    www.huantutech.com
Contact: Cindy He
Tel: +86 21 3377 9007
Fax: +86 21 33510290
Mobile:+86 15021180416

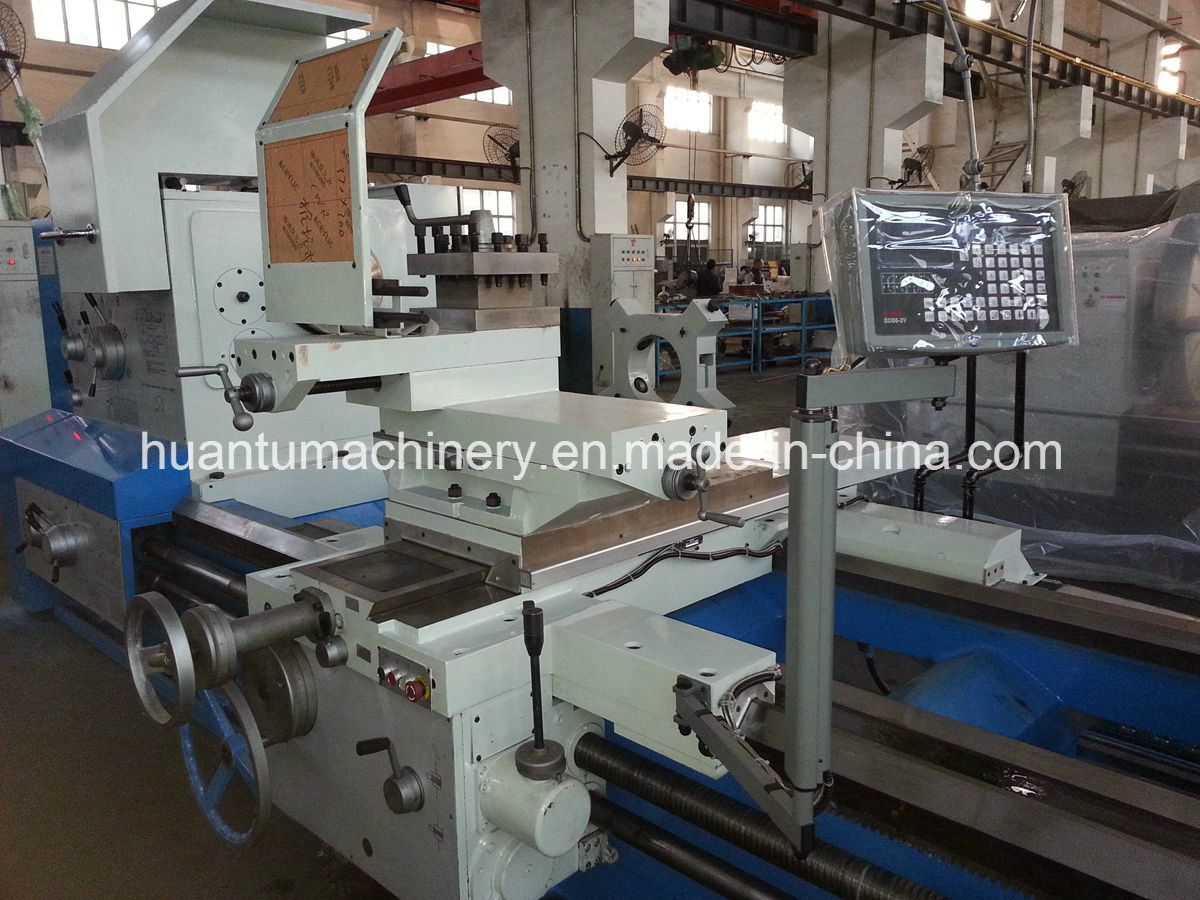

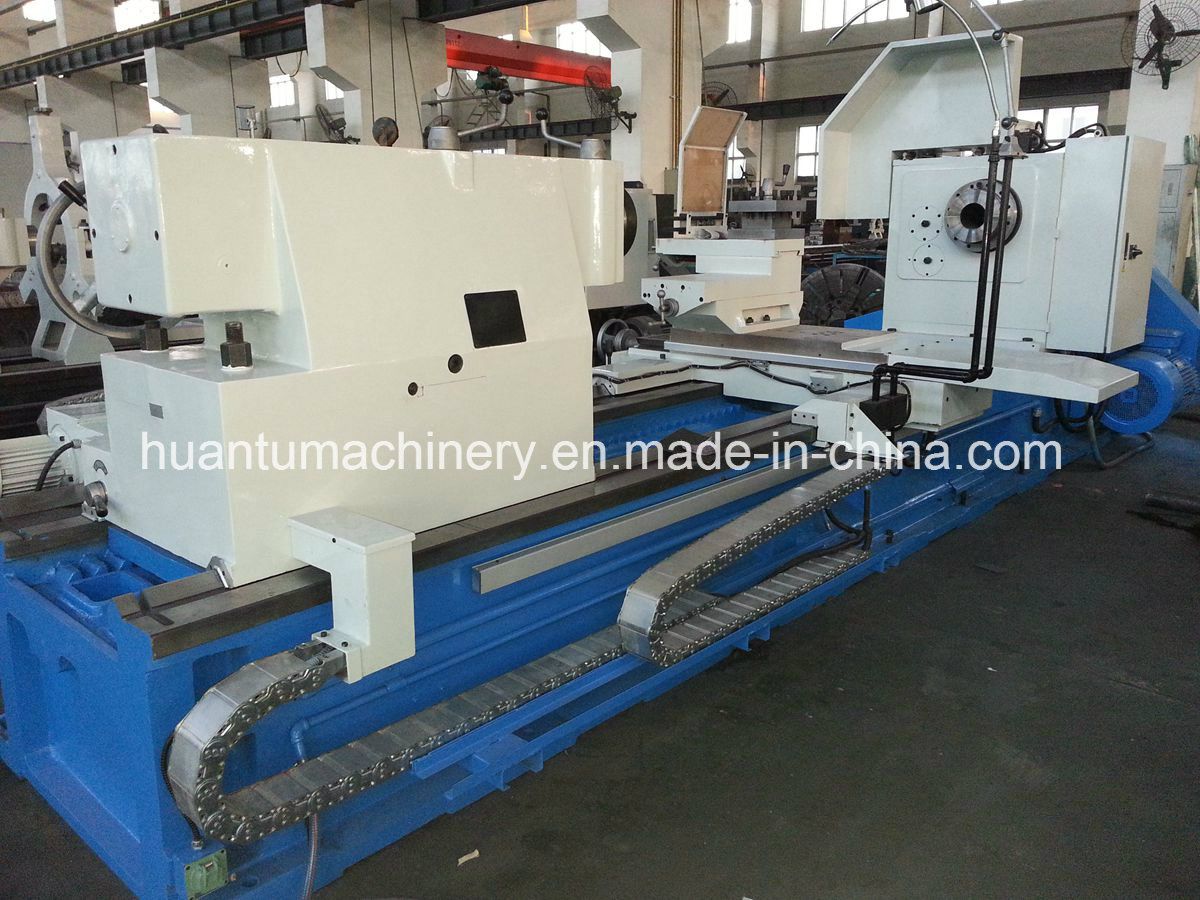

CW61100 Heavy duty lathe machine with best price



Main Specification
ModelCC61236CC61240   CC61250



CAPACITY
Max. swing dia. Over bed360mm400mm500
Max.swing over cross slide190mm230mm330
Max.swing over gap520mm560mm660
Workpiece cutting length750\1000\1500\2000\3000mm
Bed Width360mm


HEADSTOCK
Spindle hole52/65/80mm
Spindle noseISO-C6
Spindle taperMT6
Spindle speed(Number)42-1600rpm/44-1400rpm(12steps)

FEEDS
Metric threads range0.25-14mm(19 kinds)
Inch threads range2-40inch (49 kinds)
Moudle threads range0.5-3.5mm(17 kinds)


CARRIAGE
cross slide travel120mm
Max.travel of cross slide180mm
Max.size of toolshank20*20mm2

TAILSTOCK
Taper of tailstock sleeveMT4/MT5
Diameter of tailstock sleeve65/75mm
Travel of tailstock sleeve140/160mm
Main motor power4kw/5.5kw

PACKING
L*W*H
Center Distance(750mm)225*115*1600cm
Center Distance(1000mm)245*115*1600cm
Center Distance(1500mm)295*115*1600cm
Center Distance(2000mm)345*115*1600cm


N.W/G.W
Center Distance(750mm)1350/2000kg
Center Distance(1000mm)1450/2100kg
Center Distance(1500mm)1600/2250kg
Center Distance(2000mm)1750/2400kg

Standard Accessories
1.3-Jaw universal Chuck
2.4-Jaw individual Chuck
3. Face plate
4. Dirving plate
5. four way turret tool post
6. Standard steady
7. Follower rest
8. Full set of wrench
9. longitudinal stop or four longitudinal stop
10. Wrenches, oil gun, operation manual

Optional Accessories
1. Knurling tool
2. Live center
3. Taper gauge
4. Electromagnetic brake
5. Quick change tool
6. with CE
7. DRO Digital display

After Sales Service
1.Our warranty is 5 years from B/L date. If any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2.Our factory can send our engineer to the customer's factory install, commission and training freely. The customer provides the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service.


About us
Shanghai HUANTU Technical Industry Co., Ltd
1.    Shanghai HUANTU Technical Industry Co., Ltd located in Shanghai, the largest seaport city and economic center in China.
2.    Shanghai HUANTU is government support enterprise started in 1988 and has more than 28 years industry manufacture experience. In 2006, we introduced German and Japan Technology and become the leader of the metal plate processing machinery manufacturer in China.
3.    We occupy more than 65,000 square meters warehouse, workshop and dedicated to the research and development, production and sales of medium and high-rank plate processing machines including CNC hydraulic bending, shearing, notching, rolling, punching, drilling, milling, ironworker and lathe machine, which are widely used in airspace, shipbuilding, automobiles, military, electrical appliances, metal works, coinage and various other fields.
4.    National industry is the soul of a nation's economy. Machinery industry is the parent of all other industries. As a rising star in China's national machinery industry, Shanghai HUANTU Technical Industry Co., Ltd is aiming at the world, marching towards the goal of "building up a world-known brand and laying the basic for its development of hundred years".

Shanghai HUANTU Technical Industry Co., Ltd

Prod Model: CNC&Normal horizontal Lathe
Max Swing Over Bed: 360/500/600/660/800mm
Max Swing Over Cross Slide: 190mm
Max Swing Over Gap: 520mm
Workpiece Cutting Length: 750\1000\1500\2000\3000mm
Bed Width: 360/400mm
Spindle Hole: 52/65/80mm
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Double-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision
When the new century has come on the horizon, Shanghai Huantu Technical Industry Co., Ltd has become the leader of the plate processing machinery inside the country. We occupy more than 20000 square meters warehouse and dedicated to the research and development, production and sales of medium and high-rank plate processing machine including hydraulic shearing, bending, rolling machine and Ironworker, which are widely used in airspace, shipbuilding, automobiles, military, electrical appliances, metal works, coinage and various other fields.

We have been exported to dozens of countries and regions in Europe, America and Southeast Asia. Our company has been taking the lead for its aggregate annual sales revenues, and has been listed among" the national key new & hi-tech enterprises". In the process of prospecting its modern corporate system, We have attached importance on and given full play to the large-scale production, specialization in its development, standardization of its management, network construction for its sales and distribution, full and complete product lines in R&D, independent IPR, quality of services and knowledge increase of the employees; And it has gained advantages in science and technologies, quality and market share through state-of-the-art management, technical innovation, equipment upgrade and its sophisticated strategy on product lines, quality and rank.

National industry is the soul of a nation‘ S economy; Machinery industry is the parent of all other industries. As a rising star in China‘ S national machinery industry, Shanghai Huantu Technical Industry Co., Ltd is aiming at the world, marching towards the goal of" building up a word-known brand name and laying the basic for its development of hundred years"
