| Price: | US $ 0.54-3/Set |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

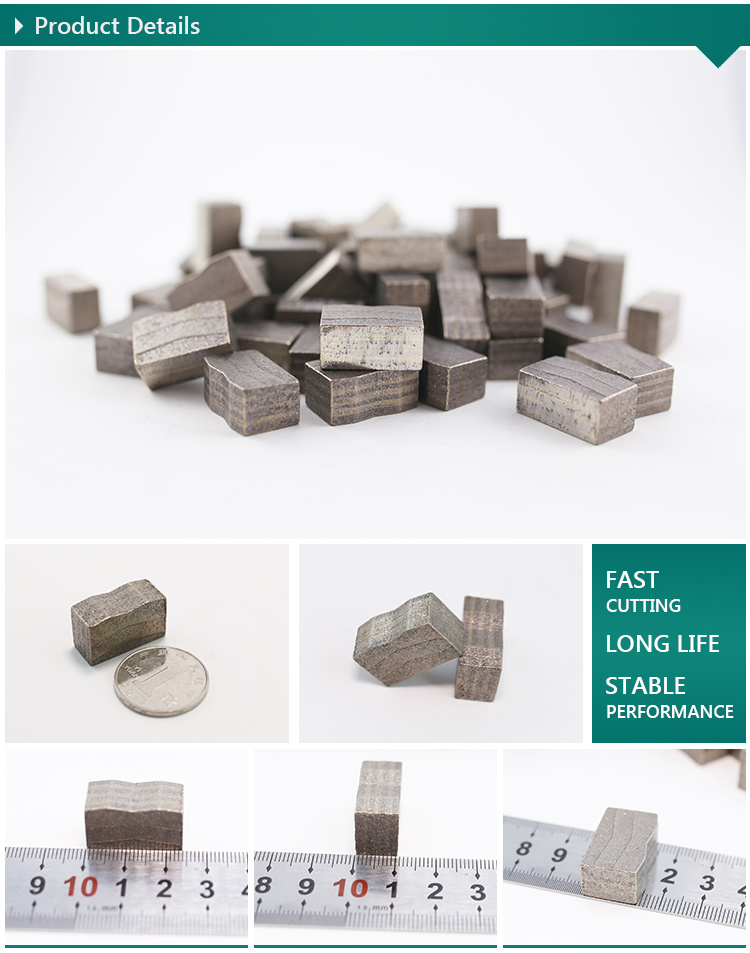

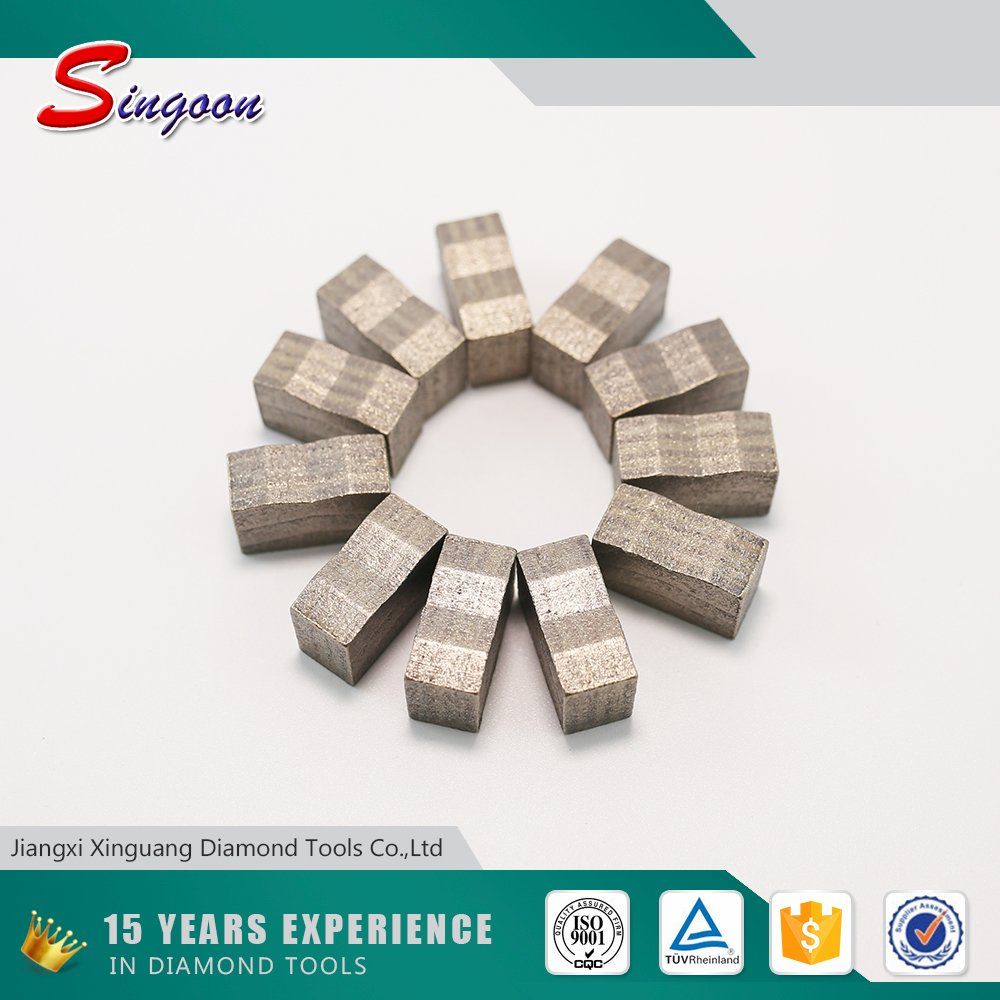

Description of Diamond Segments
Type: Diamond Cutting Tools
Raw material: Small-size diamonds and metal bond materials
Diameter: For 350~3500 blade
Shape: K type/ V type / Step type/ rectangular type etc
Application: 300-3500 saw blade for cutting granite, marble, concrete, limestone, sandstone and ect.
Character & advantage of Diamond Segments
1. Fast cutting & long life & Stable performance
2. Different bonds are for different applications & uniform size
3. Faster delievery & cost-effective
4. Great adaptability & No chipping
5. Factory with more than 15 years experience in diamond tool industry.
6. Approved quality with factory price.
7. Custom-design can be meet upon request, and small trial order available any time.
8. Universal wet cutting for granite, marble and other stone.
9. More than 100 sets hot-press, colde-press, wire saw machine and over 300 employees keet the high output and fast delivery time.
**Attn: different market need different quality and sizes. We can make all kinds of sizes and quality or price according your requirement.
Diamond Segment Size
| Diameter (mm) | Inch | Core Thickness | Segment Size(mm) | Segment Number |
| φ300 | 12" | 2.2/2.0 | 40x3.0/2.8x8(10)(12)(15) | 21 |
| φ350 | 14" | 2.2/2.4 | 40x3.0/3.2x8(10)(12)(15)(20) | 24 |
| φ400 | 16" | 2.6/2.8 | 40x3.4/3.6/3.8x8(10)(12)(15)(20) | 28 |
| φ450 | 18" | 2.8/3.0 | 40x4.0/4.2x8(10)(12)(15)(20) | 32 |
| φ500 | 20" | 2.8/3.0 | 40x4.0/4.2x8(10)(12)(15)(20) | 36 |
| φ600 | 24" | 3.6 | 40x4.6x8(10)(12)(15)(20) | 42 |
| φ700 | 28" | 4 | 40x5.2x8(10)(12)(15)(20) | 42 |
| φ800 | 32" | 4.5 | 40x6.0x8(10)(12)(15)(20) | 46/57 |
| φ900 | 36" | 5 | 24x6.6/6.0x10(12) (15)(20) | 64 |
| φ1000 | 40" | 5.5 | 24x7.0/6.4x10(12) (15)(20) | 70 |
| φ1200 | 48" | 6 | 24x8.0/7.4x10(12) (15)(20) | 80 |
| φ1300 | 50" | 6.5 | 24x8.4/7.8x10(12) (15)(20) | 88 |
| φ1600 | 64" | 7.2 | 24x9.0/8.4x10(12) (15)(20) | 108 |
| φ1800 | 72" | 8 | 24x9.8/9.2x10(12) (15)(20) | 120 |
| φ2000 | 80" | 8 | 24x10.5/9.5x10(12)(15)(20) | 128 |
| φ2200 | 88" | 9 | 24x11.5/10.5x(15)(20) | 132 |
| φ2500 | 110" | 9 | 24x12.5/11.5x(15)(20) | 140 |
| φ3000 | 120" | 10 | 24x13.5/12.5x(15)(20) | 160 |
| φ3500 | 140" | 10 | 24x14.5/13.5x15 (20) | 180 |
| Prod Model: | XG046 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Diamond and Metal Powder |
| Application: | for Cutting Granite, Marble, Sandstone |
| Feature: | Fast Cutting Speed, Long Life |
| Welded: | High Frequency Welding |
| Blade Size: | 2000mm |
| Segment Number: | 128 PCS |
| Life Span: | 2-3 Days Depends on Hardness of Stone |
| Granite Production: | 1600-2200sqf Depends on Hardness of Stone |
| Cutting Speed: | 22-46 Sft/Hour Depends on Hardness of Stone |
| Cutting Depth: | 12mm |
