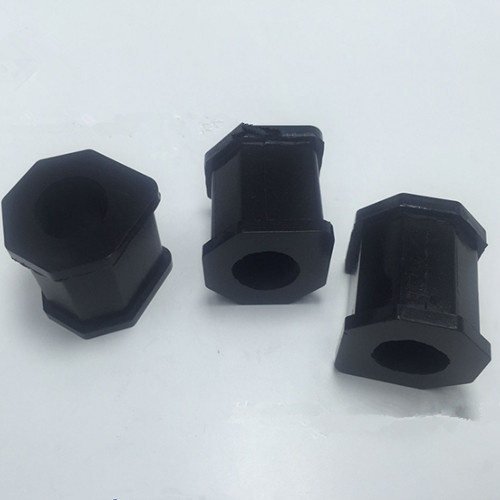

Customized Molded Nr EPDM Rubber Bushing for Auto, Machinery Equipment

Customized Molded Nr EPDM Rubber Bushing for Auto, Machinery Equipment
Price: US $ 0.01-0.2/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Rubber bumper is vulcanized with various of material, such as EPDM, NR,SBR etc.
With Good resistance to seasonality, heat resistance, chlorination resistance, aging resistance.
Inside stainless steel and It has a very good damping effect.
Are widely applied in any area, such as furniture, Chassis instrument etc

Production Description

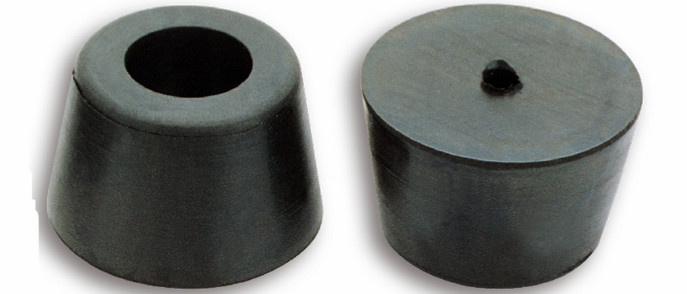

Item NameRubber bumper, rubber feet
MaterialEPDM,NBR,NR,SBR,PVC,EPT, PP/ABS
ColorBlack, white, red,etc
DimensionAs client's requirement
Hardness30~90ShA
FeatureHigh elasticity, insulation, abrasion resistance, oil resistance, aging resistance, high temperature resistance, cold resistance, anti-corrosion, anti-static
ApplicationRemovable instruction,furniture,etc
OEMwelcome
MOQMeet your requirement
CertificationREACH, ROHS,FDA,SGS,etc


The advantage and property of rubber bumper/feet from our factory
1.Built-in stainless steel sheet inside
 Make rubber bumper more stable and stronger inside stainless steel sheet .
2.We adopt heighten new technology craft
3.The material of rubber bumper is complete fresh and tasteless
4.Not fade, anti-slip wear-resistant anti - pressure , damping, acid and alkali resistant
5. Environment friendly

The different material of rubber mounting will cause different property.
EPDM/NBR/silicone/SBR/PP/PVC etc.

ItemsEPDMNRsiliconePVC
Hardness
(Sha)
30~8530~9020~8550~95
Tensile strength
(Mpa)
≥8.5MPa> 20 Mpa3~810~50
Elongation(%)200~5501000%200~800200~600
Specific Gravity0.75-1.61.15-1.211.25~1.351.3~1.7
Temperature range-40~+120°C-50~70ºC.-55~+350°C-29°C - 65.5°C
1. the property of NR
 It has good wear resistance, high elasticity, breaking strength and elongation, But in the air, it is easy to get age, and it is get sticky when it get in touch with heat, which is easy to expand and dissolve in mineral oil or gasoline, but it is resistant to strong acid, but not to Alkali . working temperature is -50~70ºC.
2. the property of EPDM
Weather ability, aging resistance, ozone resistance, chemical stability are excellent, and CFCS and a variety of refrigerants. Working temperature is -50~150
3. the property of silicone
It has excellent heat resistance, cold resistance, ozone resistance and atmospheric aging resistant.Good electrical insulation performance,The tensile strength and wear resistance are generally poor and has non- oil resistant. The working temperature is -55~250ºC
4. The property of NBR
Good oil resistance, heat resistance, abrasion resistance, solvent resistance and high - pressure oil,But it is not suitable for polar solvents, such as ketones, ozone, nitro-hydrocarbons, and chloroform. The working temperature is -40~120 ºC
5. the property of CR
It has good elasticity, wear resistance and atmospheric aging resistance. It is not afraid of violent distortion and flammability.Chemical stability. The working temperature is -40~100 ºC
6. The property of FKM
Excellent high temperature resistance,And have excellent chemical resistance, most oil and solvent (other than ketones and esters).cold resistance is not good.



The advantage of our company

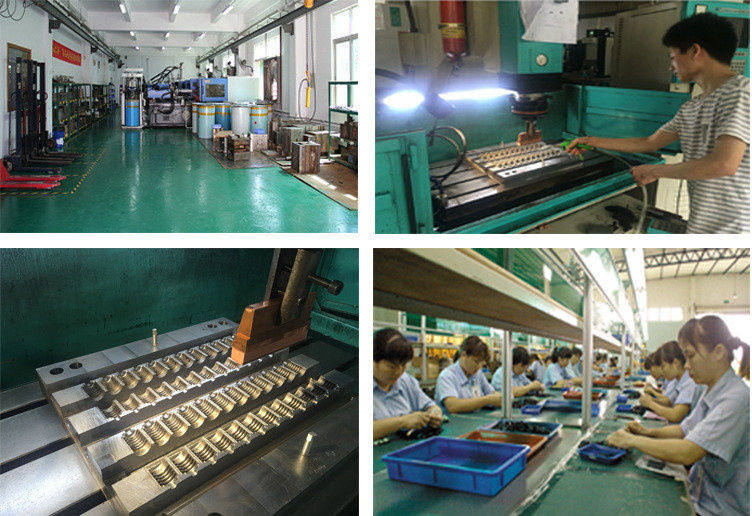

1.We have excellent complete production line with advanced production and test equipment
 Adding First-class technicians, so that we can  offer you the competitive price and high quality ,fast delivery time .
2.We have a special drawing design department to design the correct drawing data meeting your requirements. Then, we will use CAD or other format drawing to carry on tracking the production of tooling, sample ,mass goods. To avoid something wrong to each process. To make sure all of dimension are correct.
3.We also has special production supervision department. The engineer staff will Supervise  each process from the manufacture of tooling to the production of mass goods.
Reduce something wrong happened, finally offer you parts meeting your technology requirement.
4. All of Raw material are past quality certification,In the meantime, we will first delivery test report of rubber part when all of mass goods are finished. And make sure the quality meet your requirement, then make shipment.


 Packing and shipment
Prod Model: zm-bushing
Process Technology: Molding or Injection
The Name Of Enterprise: Manufacturer
Certification: FDA, SGS, Reach, RoHS, etc
OEM: Welcome
Usage: Household
Material: EPDM, Nr, NBR, Silicone, PVC, FKM, Eptetc
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
