| Price: | US $ 9.5-10/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union |

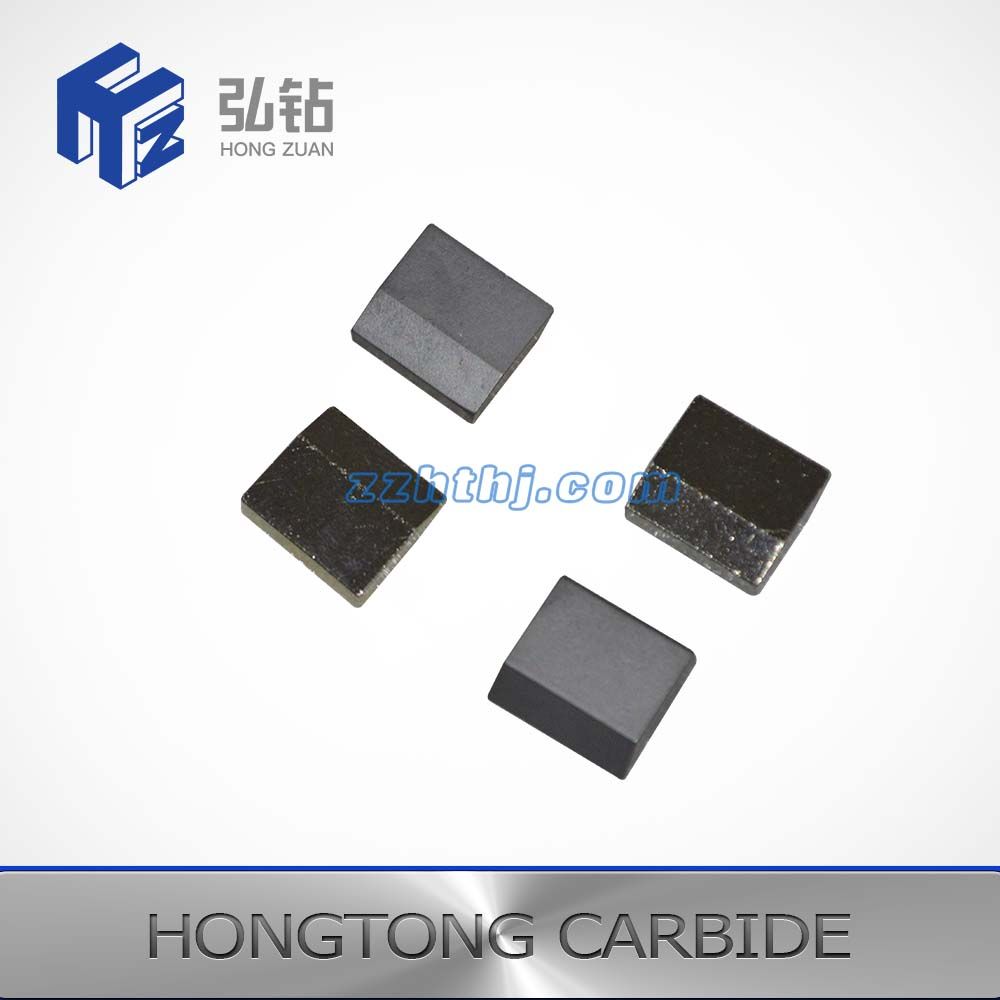

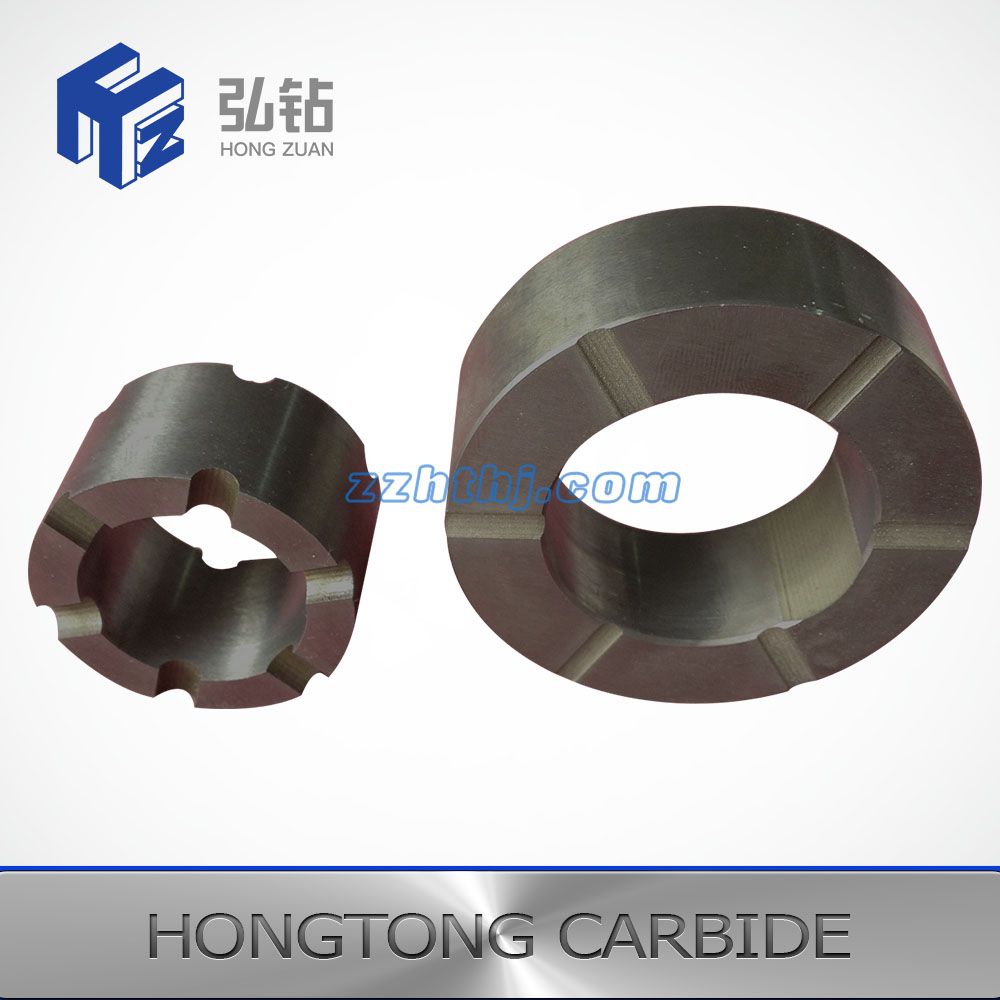

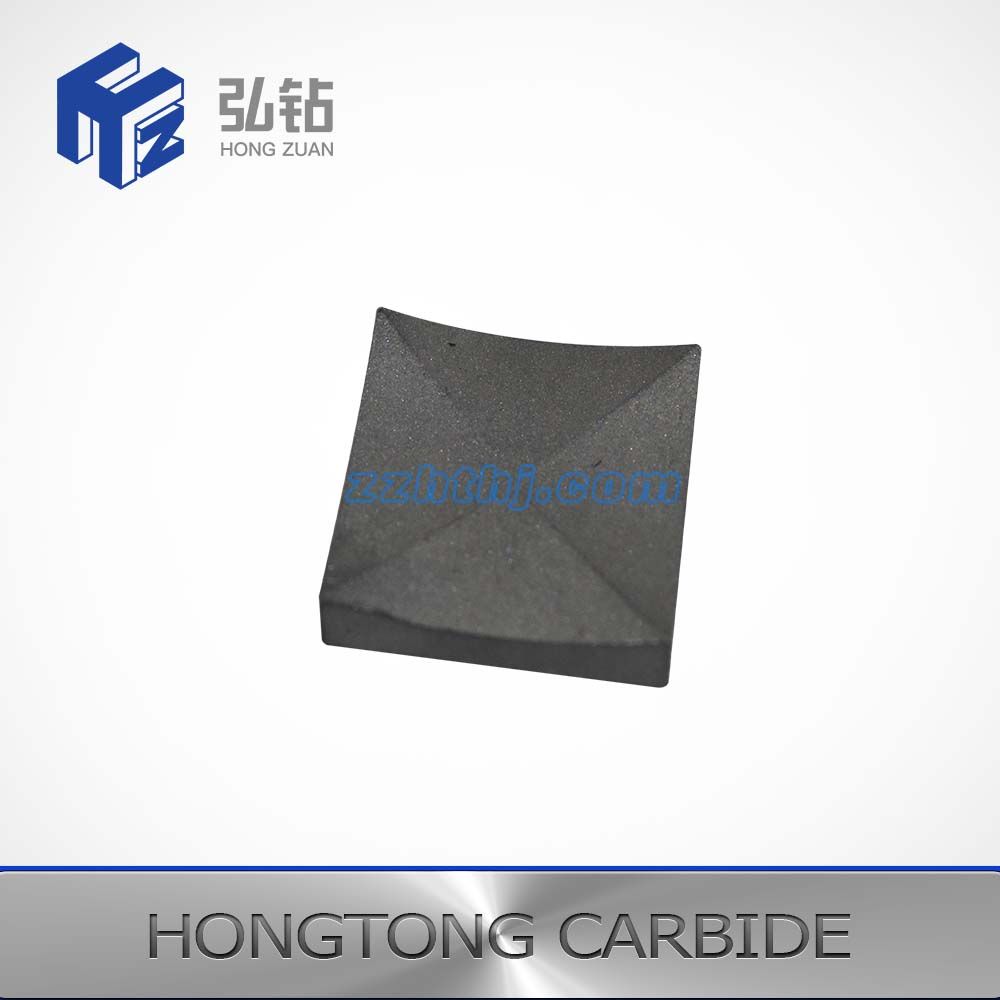

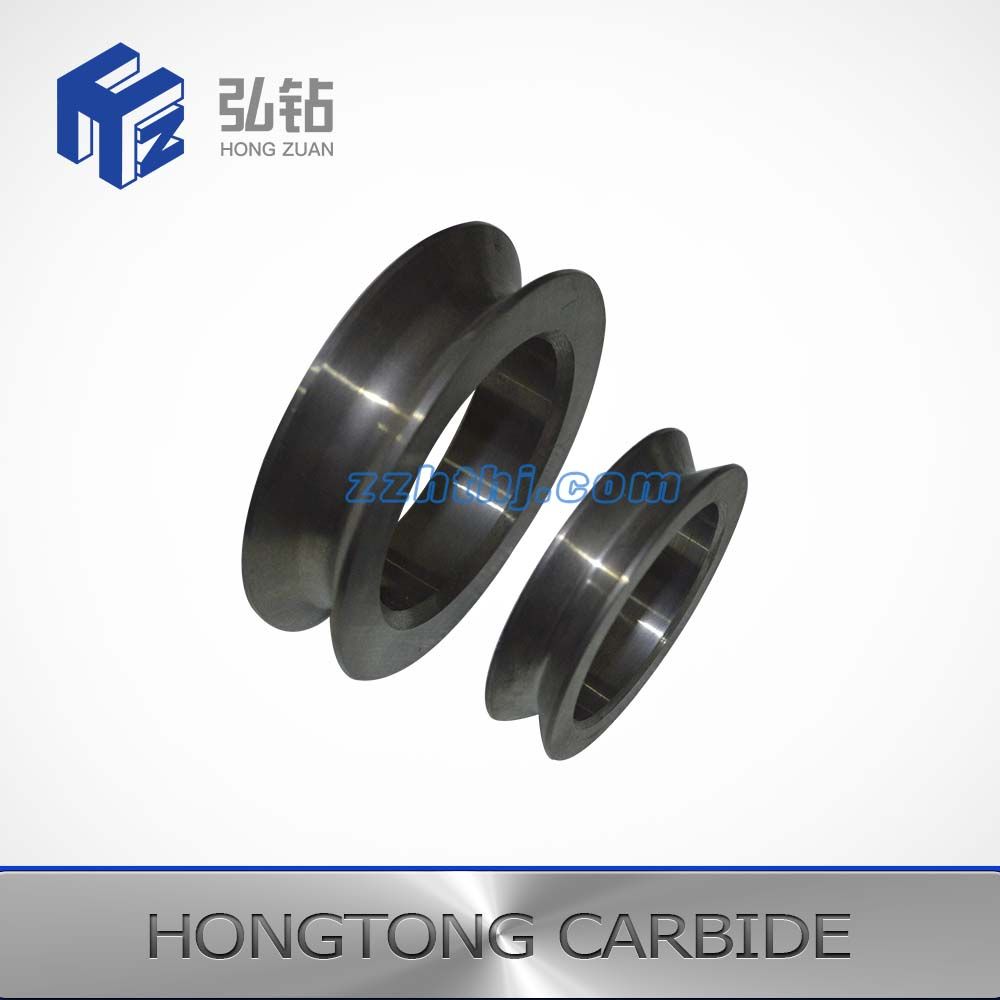

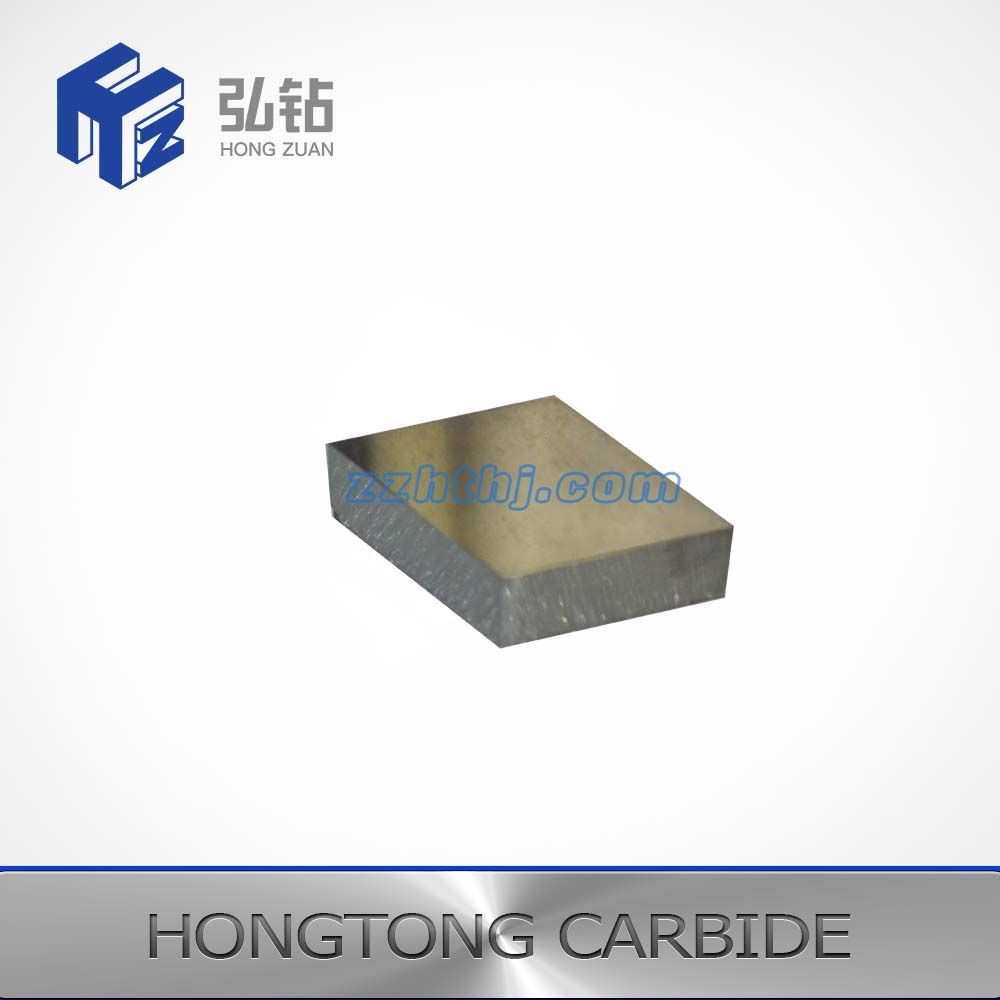

Non-Standard/Customized Tugsten carbide products
Application.
Process.
Firstly, we make raw material powder according to customer's requirements. Secondly, we press the powder to the shape and size clients required. Thirdly, the dies are sintered in the oven. Fourthly, some need post-handle if customer need.
Properties.
--100% raw material
--HIP sintering
--Superior wear resistance
--High hardness and mechanical strength
--Good corrosion resistance
--High precision for tolerance
--Quality Control System and strict inspection.
--Feedback within 24 hours
--Flexibility of payment term
--Fast delivery
--Exellent after-sale service
Professional info.
Zhuzhou Hongtong, a professional Chinese manufacturer of tungsten carbide products. We supply tungsten carbide ball/seat, seal ring,plate,strip,nozzle,rod,brazed tips,mining tips,inserts,disc cutter,wire drawing die,cold heading die,and so on. With more than 10 years experience, we can provide you more than you can image.
Grades recommend.
| Grade/ Properties / Application | ||||||||
| Grade | Equal to ISO Category Number | Performance | Performance&application recommended | |||||
| Density | Bend Strength | Hardness | ||||||
| G/Cm 3 | N/mm 2 | HRA | ||||||
| YG3 | K01 | 14.9-15.3 | ≥1180 | ≥90.5 | Sand-blasting nozzles qualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting n | |||
| YG3X | K01 | 15.1-15.4 | ≥1300 | ≥91.5 | ||||
| YK05 | 14.95 | 2500 | 90.5 | Mostly used as the buttons of small and bits medium sized percussion | ||||
| YG8C | 14.8 | 2400 | 88.5 | and as the inserts of rotary prospecting bits to cut soft and | ||||
| medium hard formations. | ||||||||
| YG6 | 14.95 | 1900 | 90.5 | For coring crowns,electric coal drill bits, coal cutting picks,oil | ||||
| cone bits and scraping knife bits,used in coal geological prospecting, | ||||||||
| mining and oil well boring. | ||||||||
| YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 | Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. | |||
| YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 | ||||
| YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 | Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. | |||
| YG8 | K30 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. | |||
| YG10X | 14.5 | 2400 | 91.5 | Fine grain alloy, good wear resistance,Used for processing hard | ||||
| wood, veneer board,PCB,PVC and metals. | ||||||||
| YG11 | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmental powders. | ||||
| YG11C | K40 | 14.4 | 2700 | 86.5 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium | |||
| hard, hard and very hard formations. | ||||||||
| YG15 | K40 | 14 | 2800 | 87.5 | For fabricating drawing dies of steel tubesand rods under high | |||
| compressibility ratio;punching,stamping,forging tools under large stress. | ||||||||
| YG15C | 14 | 3000 | 85.5 | For oil cone dril bits, for medium soft and medium-hard rocks. | ||||
| YG16C | 13.9 | 2900 | 85.5 | Impact resistance, hot&forging dies etc. | ||||
| YGH40 | 13.5-13.9 | ≥2450 | ≥83.0 | Mainly for making hot dies. | ||||
| YG20 | 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical | ||||
| instruments, battery jars,small sized steel balls,screws,screw caps. | ||||||||
| YG18C | 13.7 | 3100 | 84.5 | Impact resistance forging dies,hot-press forging dies and rollers. | ||||
| YG20C | 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. | ||||
| YG22C | 13.3 | 3500 | 83 | Nut forming dies and high impact resistance forging dies. | ||||
| YG25C | 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. | ||||
| YT15 | P10 | 11.1-11.6 | ≥1180 | ≥91.0 | Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel. | |||
| YT14 | P20 | 11.2-11.8 | ≥1270 | ≥90.5 | Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. | |||
| YT5 | P30 | 12.5-13.2 | ≥1430 | ≥89.5 | Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. | |||
| Prod Model: | various OEM |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
| Size: | Any Size of |
| Precision: | High |
| MOQ: | No |
| Sample: | Available |
| Delivery: | Fast |
| Guarantee: | 3years |
