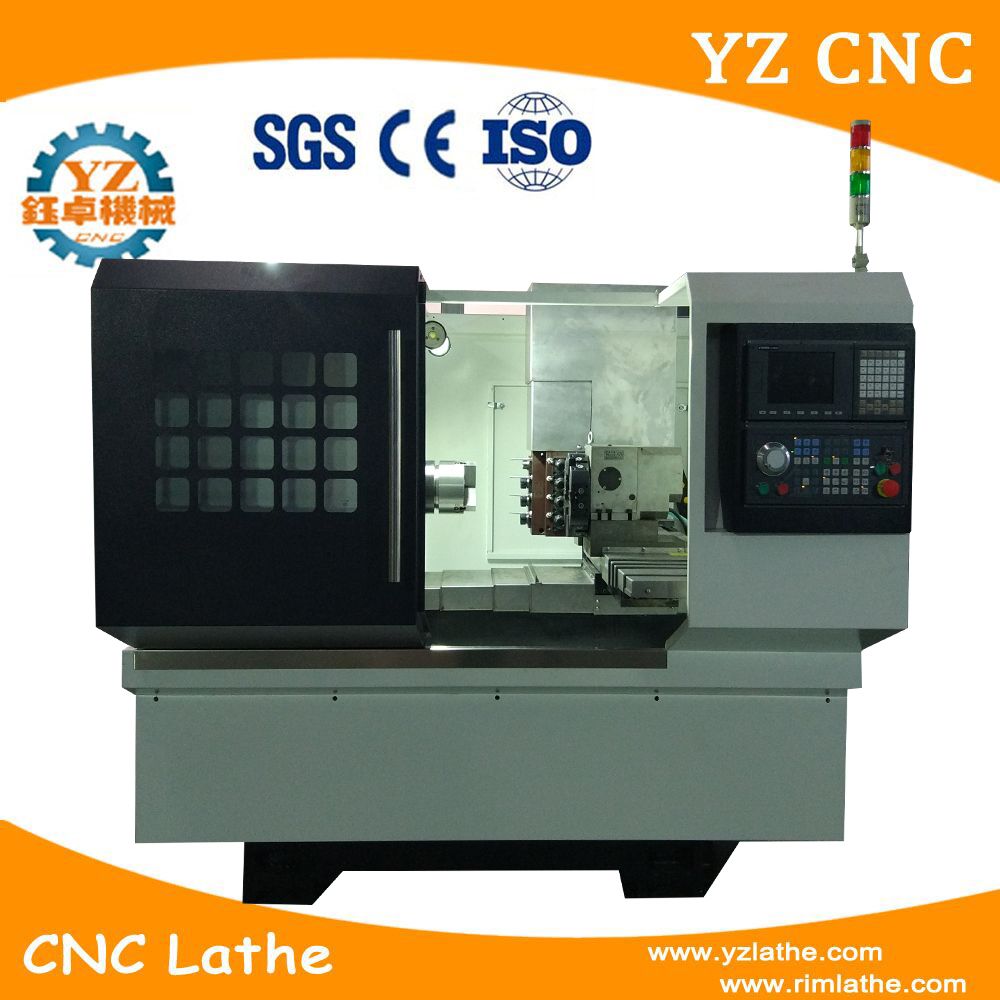

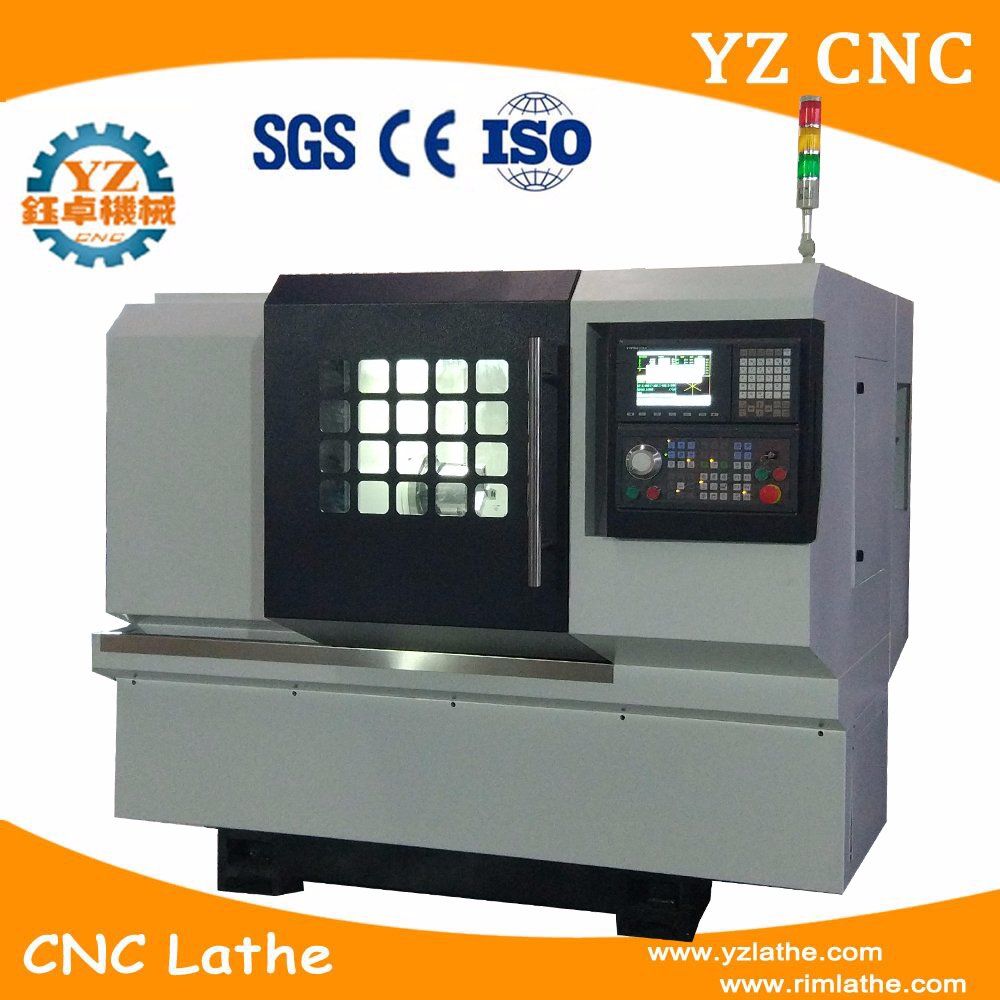

Customized CNC Lathe with Slant Bed and Power Turret

Customized CNC Lathe with Slant Bed and Power Turret
Price: US $ 15000-20000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Customized CNC Lathe With Slant Bed And Power Turret

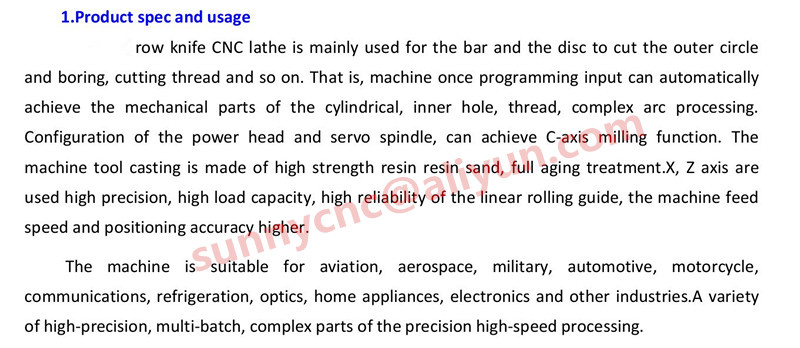

CNC series CNC turning center is a professional processing: Bearing; motor cover; gear economical, practical machine tools, a fixture all types of both ends of the plate parts molding process;  it is the largest amount of domestic use, the most extensive coverage of a CNC machine tools, machining widely used in the automobile, petroleum, military and other industries. machine complete varieties and specifications in the series, you can achieve internal and external surface of the disk type and short shaft type parts, conical, arc, thread, boring, reaming, can also be achieved non-circular curve processing. According to the needs of users, optional CNC systems and accessories.




Prod Model: TCK30
Max Swim Over Bed Diameter: 420mm
Spindle Bore: 56-62mm
Motor Power: 5.5kw
Spindle Speed: 1-4000rpm
CNC Controller: GSK, Siemens, Fanuc
Machine Bed Type: Slant Bed CNC Lathe Machine
Travel: X 240mm, Z 300mm
Linear Guide Width: 30mm

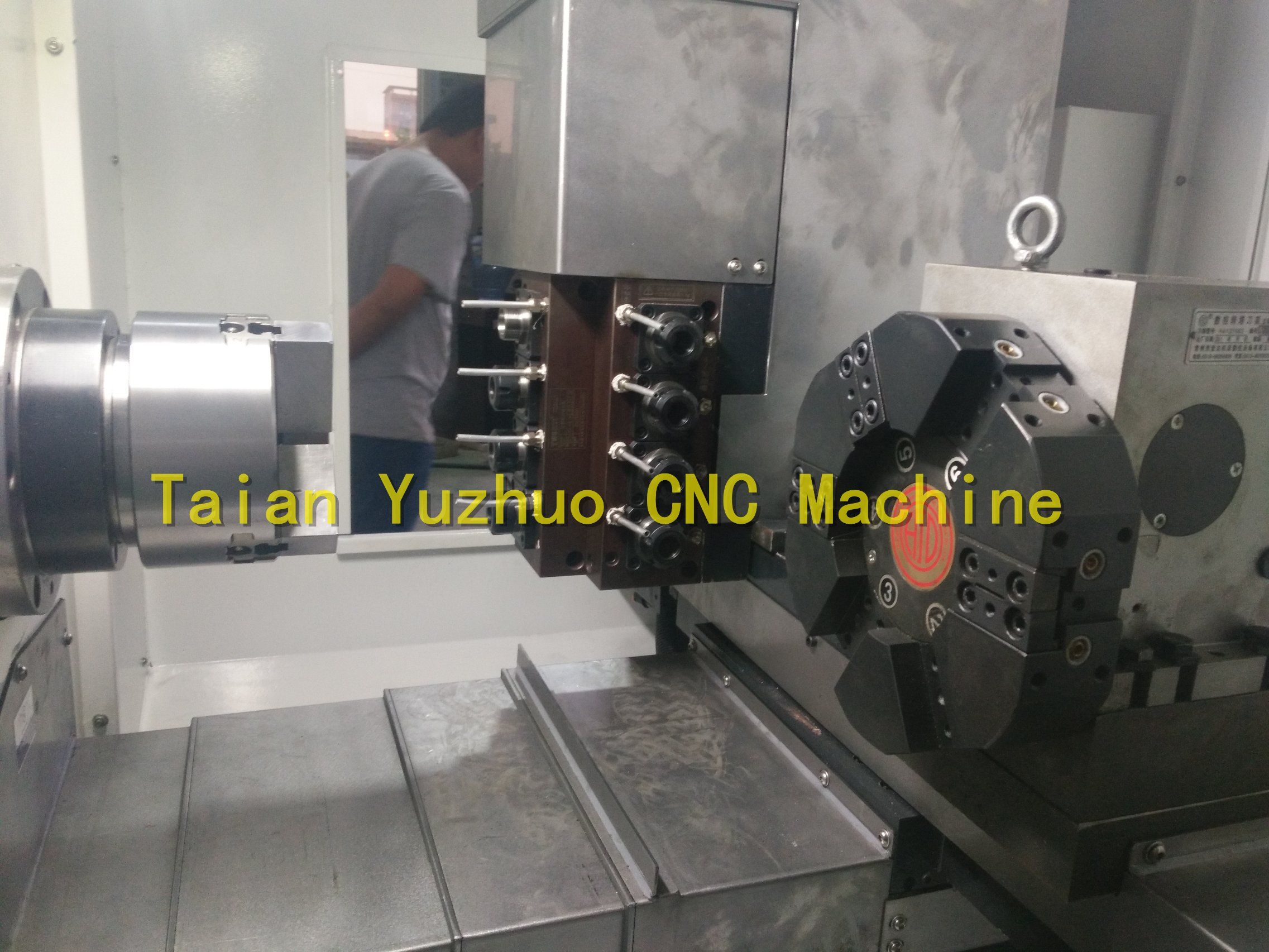

Turret Type: Gang Type Tool Carrier
Lighten System: LED
Process Usage: Metal-Forming CNC Machine Tools
Movement Method: Point to Point Control
Control Method: Open-Loop Control
Performance Classification: High-End CNC Machine Tools
Numerical Control: CNC
Tai'an YuZhuo Machinery Co., Ltd (as for "YZ CNC"), is a company including active and professional teams, specialized in CNC machining Center, CNC Lathe Machine, Wheel Lathe machine. Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
