Crimped Wire Mesh/Woven Screen Mesh/Vibrating Screen Mesh Used in Vibrating Stone Crushers
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Quarry Screen Mesh/Crimped Woven Wire Mesh/Manganese Steel Wire Mesh with High Impact Resistance and Abrasion Resistance
1. Raw Materials
2. Manufacture Method
The wires are crimped before they are woven. Our weave styles include, but not limited to, intermediate crimp weave in both W and F directions, lock crimp weave, flat top crimp weave, and crimp weave in both W and F directions and intermediate crimp weave in either W or F direction.
3. Specification

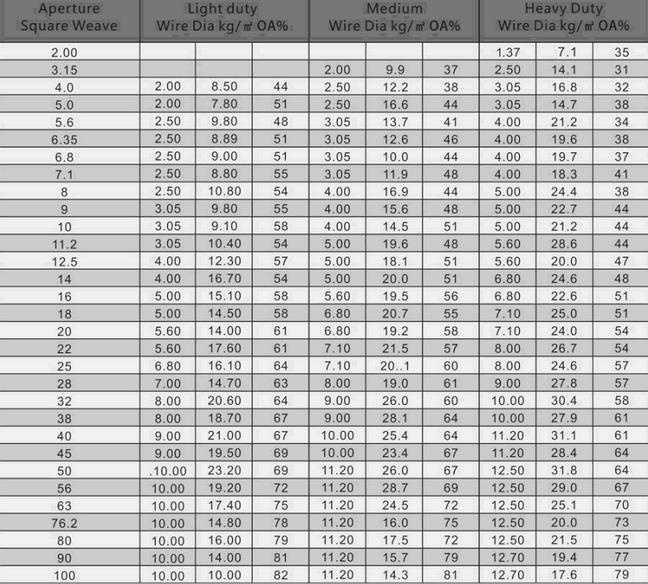

Wire diameter ranges from 1.37mm to 12.7mm, and aperture size 3mm to 100mm. The width and length of each mesh panel could be specified by the client. 4. Excellent Features
Screen mesh surface is smooth without snubby phenomena.
Mesh panel is square without obliqueity.
Overall structure is tight without looseness.
Mesh size is uniform with very small tolerance.
Service life is very long.
5. Uses
Quarry Screen Mesh is mainly used for primary filtration of mining, such as coal, iron ore, stones, etc. And also used in asphalt mixer equipment, mine vibrating screens, screen decks and trommels.
| Prod Model: |
Crimped woven type |

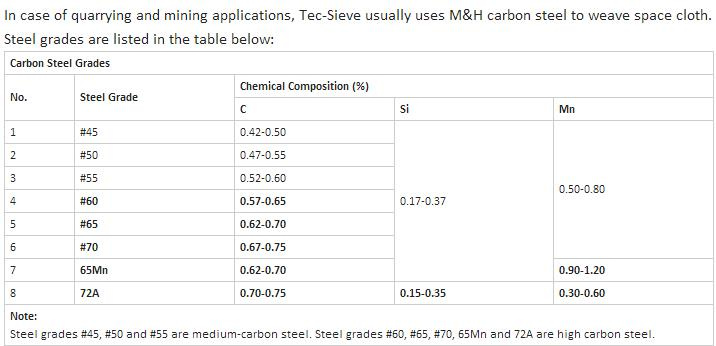

| Steel Grade: |
#45, #55 Steel, and 65mn Steel. |
| Manufacturing Process: |
Precrimping and Weaving |

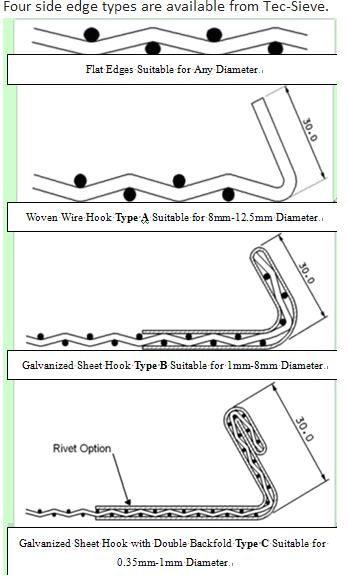

| Edge Type: |
Flat Edge or Hooked Edge |
| Wire Diameter: |
1.37mm to 12.7mm |
| Aperture: |
3mm to 100mm |
| Main Markets: |
Saudi Arabia, Jordan, Dubai and Australia |
| Weave Type: |
Plain Weave |
| Type: |
Mine Sieving Mesh |
| Hole Shape: |
Square |
| Material: |
Medium Carbon Steel and High Carbon Steel |
| Usage: |
Screening |
Hebei Tec-Sieve Wire Mesh Products Co., Ltd. (also known as "Tec-Sieve") is formed from a number of manufacturing facilities and sales offices in Hebei Province, China. It has been consistently developing through product expansion, acquisition and merger.
Tec-Sieve is one of the largest manufacturers and exporters in the industry of grating and mesh products in China. It is a legally registered exporter, and has been awarded the Export License by the competent authority of China.
Tec-Sieve Company supports nearly all sectors with its wide range of grating and mesh products, including but not limited to FRP grating & steel bar grating, expanded metal mesh & perforated metal mesh sheet, wedge wire mesh filter elements, slope protection wire mesh, stainless steel rope mesh system, multi-barrette weave mesh system, woven wire, stainless steel crimped wire mesh, wire screen media, mining & quarry 65Mn steel screen mesh, stainless steel, aluminium and brass woven wire mesh and wire cloth and stainless steel welded wire mesh panels, etc.
The manufacturing facilities use choice materials and always pay special attention to products detail, workmanship, finish, durability and functions, thus producing the best quality products to meet the exact requirements of the clients.
Tec-Sieve has exported its grating and mesh products to Europe, North America, South America, Asia, Australia and New Zealand, etc.
