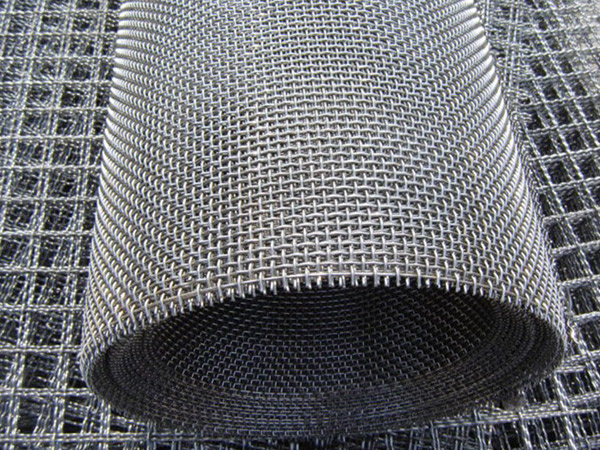

Pre-Crimp & Heavy Duty Wire Mesh

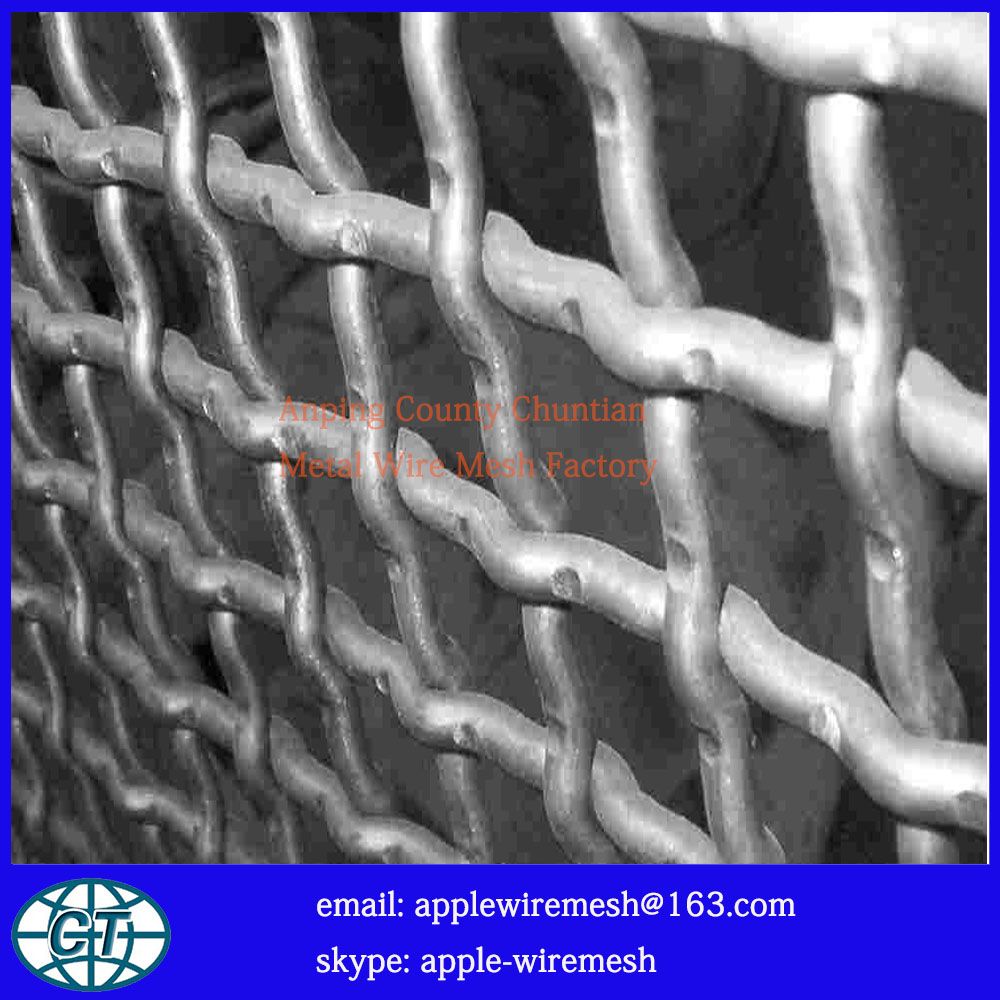

Wire, or space, cloth with a pre-crimp mesh is woven using wire crimped prior to weaving. The crimps are made at the points the shute and warp wires intersect which secures the wire, thereby stabilizing the wire cloth and preventing the wire from moving. Additional rigidity and strength can be obtained by adding crimps between the intersections, using an intermediate crimp. Crimped wire provides a more secure fit to the mesh, limiting movement of the space cloth. This results in more accurate and consistent opening sizes within the mesh

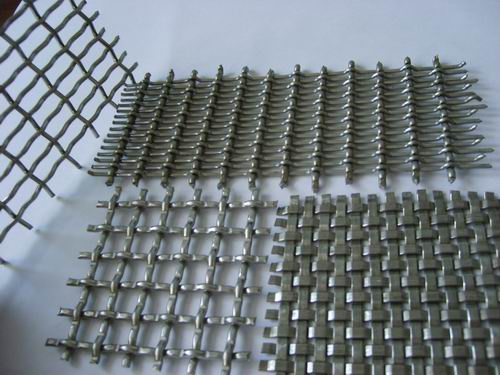

Pre-Crimp & Heavy Duty Wire Mesh Options
(1)Plain weaving
(2)Flat top

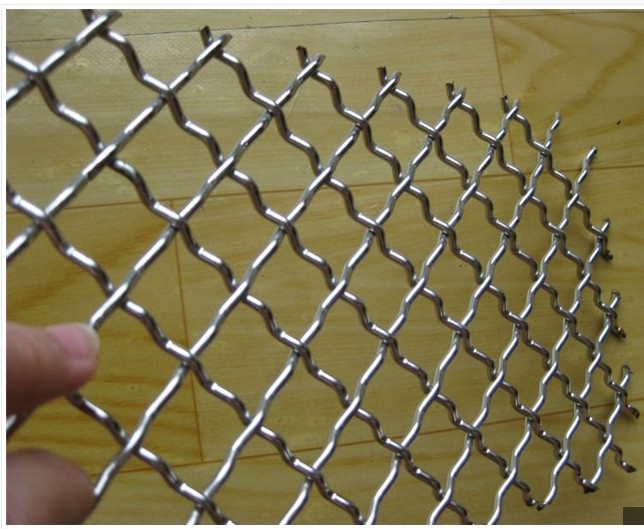

(3)Intermediate crimp also knows as inter-crimp and multiple crimp
(4)Lock crimp
Crimped wire mesh is used in the waste water, oil refining, mining, construction, safety and food processing industries for applications that require strength and large-hole filtering and screening. Pre-crimped wire cloth is also used in architectural and industrial design applications
| Opening | Type | Wire Dia | Weight Per Sq. Foot | Percent of Open Area |
|
|
|
|
|
| 2.00" x 2.00" | Clear Opening Space Cloth | .250" | 1.79 | 79.00% |
| 1.75" x 1.75" | Clear Opening Space Cloth | .192" | 1.22 | 81.20% |
| 1.50" x 1.50" | Clear Opening Space Cloth | .162" | 1.02 | 81.50% |
| 1.25" x 1.25" | Clear Opening Space Cloth | .120" | 0.68 | 83.20% |
| 1" x 1" | Clear Opening Space Cloth | .105" | 0.5 | 83.90% |
| 3/4" x 3/4" | Clear Opening Space Cloth | .092" | 0.65 | 79.30% |
| 1/2" x 1/2" | Clear Opening Space Cloth | .080" | 0.71 | 74.30% |
| 3/8" x 3/8" | Clear Opening Space Cloth | .080" | 0.91 | 67.90% |
| 1/4" x 1/4" | Clear Opening Space Cloth | .080" | 1.28 | 57.40% |
|
|
|
|
|
| .395" | 2 mesh | .105" | 1.442 | 62.40% |
| .420" | 2 mesh | .080" | 0.83 | 70.60% |
| .437" | 2 mesh | .063" | 0.512 | 76.40% |
| .453" | 2 mesh | .047" | 0.284 | 82.10% |
| .253" | 3 mesh | .080" | 1.264 | 57.60% |
| .270" | 3 mesh | .063" | 0.776 | 61.30% |
| .286" | 3 mesh | .047" | 0.428 | 73.60% |
| .170" | 4 mesh | .080" | 1.721 | 46.20% |
| .187" | 4 mesh | .063" | 1.048 | 56.00% |
| .203" | 4 mesh | .047" | 0.576 | 65.90% |
Our factory is situated in Anping County which has long been known as Homeland of Wire Mesh in China, Started since 1989, this factory has rich experience in iron wire and wire mesh.
Our production:
Wire system: Black annealed wire, galvanized wire, including coil wire, spool wire, and U type tie wire, cutting wire, wire sack ties and so on.
Wire mesh system: Welded wire mesh, hexagonal wire mesh, black woven cloth, stainless steel wire mesh, brass wire mesh and perforated metal, expanded metal, plastic wire mesh.
At present, we have been exporting to more than 80 countries, for example, USA, Canada, Uruguay, Brazil, Agentina, New Zealand, Kuwait, Pakistan, Singapore, Japan, the Netherlands, and so on
We have win high repulation by the high quality and quick delivery, and expanded ten times large export amount compare 10 years before.
We would like to win your long term businss by our high quality products and competitive price.
