1.Application
ISO 9001,BV,SGS

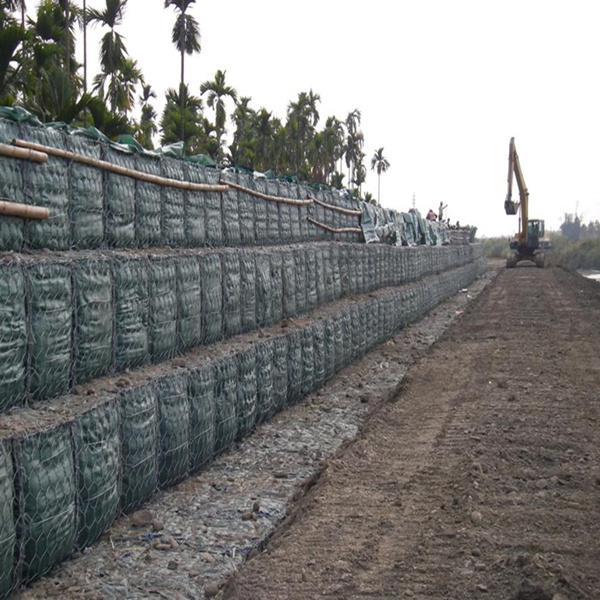

Gabion basket are wire fabric containers, uniformly partitioned of variable size, interconnected with other similar containers and filled with stone at the site of use to form flexible, permeable, monolithic structures such as retaining walls, sea walls, channel linings, revetments and weirs for earth retention.Gabion basketare cages, cylinders, or boxes filled with soil or sand that are used in civil engineering, road building and military application.
1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area
2.Surface Treatment:
Heavily zinc galvanised wire
As above plus heavy duty PVC coating
Galmac (galfan) coated with a 95%Zinc + 5% Aluminium Mischmetal Alloy
As above plusheavy duty PVC coating
3. Advantages of Gabion basket :
* Permeability of the front face, ensuring drainage of backfill and no hydrostatic pressures behind the wall
* Flexibility, ensures the woven mesh gabions accommodate different settlements unlike rigid systems, for example, welded mesh cages
* Monolithic and flexible structures
* Tolerates differential settlement
* Uniform wire coating for extra durability
* Permeable structures
* One of the most economical retaining systems on the market
* Incorporation as required of vegetation throughout the structure
4.Gabion Box
We can supply various gabion box including welded gabions and woven gabions, detailed assortment as follows:
Electro galv.gabion box/mattress
Hot dipped galv.gabion box/mattress
Galfan coated gabion box/mattress
Galfan then pvc coated gabions
Galvanized then Pvc coated gabion box
5.Gabion box packing
In bult ,pallet or as your demands.
6.Detailed Specification
1). Gabion box/basket/mattress
The gabion Box is divided into cells by means of diaphragms positioned at approximately 1m centers.
Wire: 2.0-4.0mm
Mesh: 50×70mm,60×80mm, 80×100mm, 100×120mm, 100×150mm, 120×150mm
PVC coating thickness: 0.4-1.2mm
Galfan weight: 200-600g/m2
Hot dip galvanized can reach 290g/m2
Gaboins size: 1×1×1m,1.5×1×1m,2×1×1m,3×1×1m,4×1×1m, etc
Standard Gabion Size
Standard Gabion Size |
Length(m) |
Width(m) |
Height(m) |
Cells |
1.0 |
1.0 |
1.0 |
1 |
1.5 |
1.0 |
1.0 |
1 |
2.0 |
0.5 |
0.5 |
2 |
2.0 |
1.0 |
0.5 |
2 |
2.0 |
1.0 |
1.0 |
2 |
3.0 |
1.0 |
0.5 |
3 |
3.0 |
1.0 |
1.0 |
3 |
4.0 |
1.0 |
1.0 |
4 |
4.0 |
1.0 |
1.0 |
4 |
Custom sizes are also available |
2). Welded Gabion box
Mesh(mm) |
Wire Dia.(mm) |
Usual Size(m) |
50×70 |
2.4 |
0.5×0.5×1 |
50×70 |
2.7 |
1×1×1 |
50×100 |
3.5 |
1×1×2 |
If you have any question pleade feel free to contact me !
Shijiazhuang Heshuo Metal Products Company Ltd is based in Hebei province, which occupied about 70% metal wire and metal wire netting products output of the world.Our factory is located in Shenze, where only two and half hours drive to Beijing.
During the past 15 years, we dedicate to produce high quality metal wire netting products at competitive price, offer professional services and customized services to worldwide customers.
Our leading products include gabion box, Reno mattress, heavy hexagonal wire mesh, concertina barbed wire, chain link fencing, welded fence, rolling of welded mesh, square mesh, Iron windows screen, plastic windows screen, hexagonal wire netting, crimped wire mesh, European fence, security fence and other fence.Our fence experience ranges from all phases of garden fence, residential fence, government fence and fence of projects.
We have our own R&D department and offer customized services.
Our QC departments carry on strict quality control procedure from raw material to cargo packing, checking cargo according to the customers' technical requirement and commercial contract.We have passed ISO9001:2000.
Understanding our customers, we care about the future of our business.Up to today, with reasonable price and good quality, all our products sell well in the international marketing.We want to ensure that you get our good service, only high quality and speedy delivery.We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams.Because professional, so trust!
Welcome to visit our factory.
