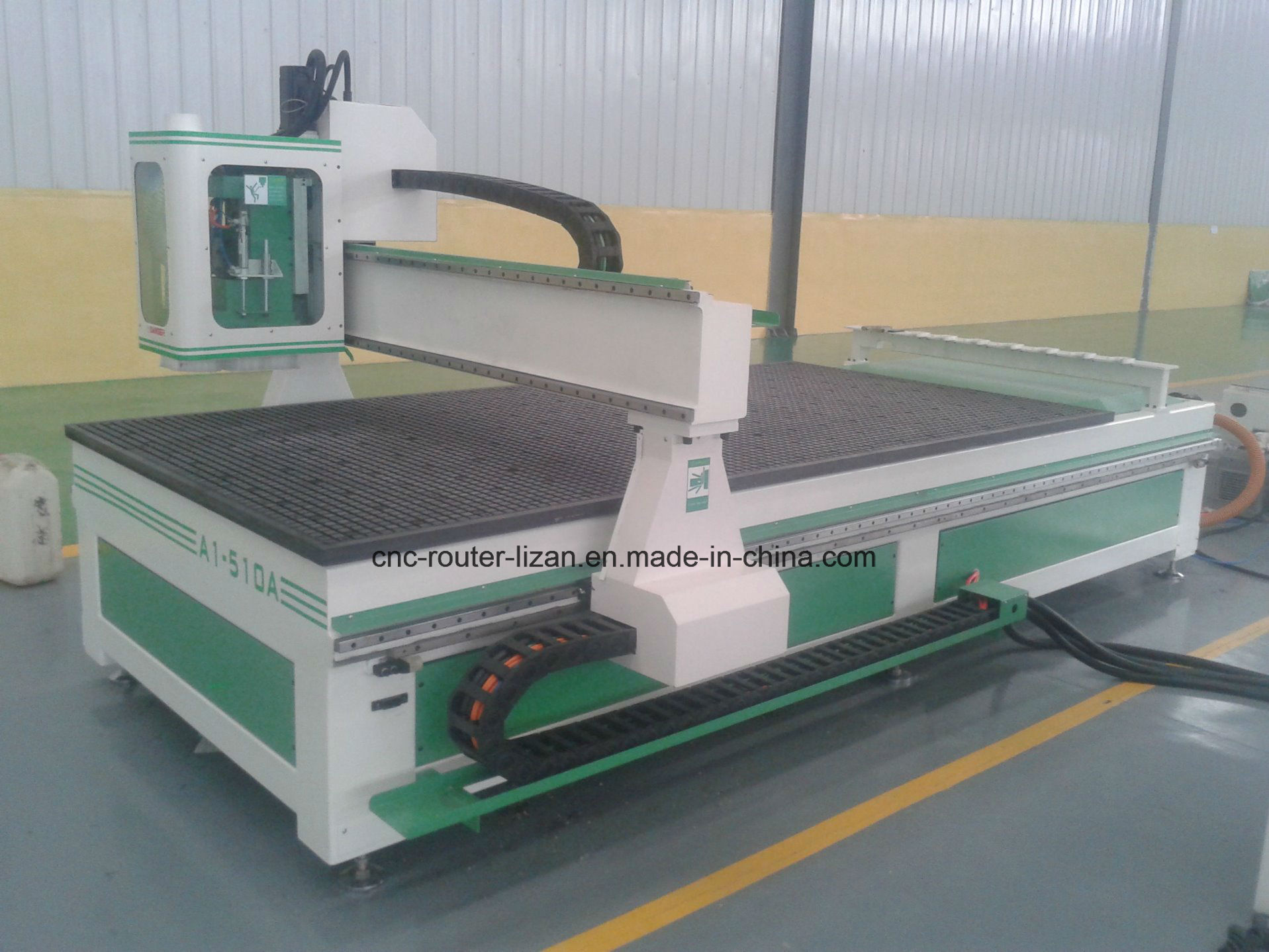

CNC Woodworking Machinery Tool Made in China Na-48

CNC Woodworking Machinery Tool Made in China Na-48
Price: US $ 17500-25500/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
NA-series is a light-duty entrance level CNC router with trustworthy quality and functionality that can fulfill the basic needs in advertising, woodworking and furniture industries. Equipped with ATC facilities, this model can greatly enhance the working efficiency and reduce labor cost.



The standard configuration of NA-48 is:

Spindle Power9kw HSD
ControllerSyntec
Motor400w Japanese Jaskawa servo motor
Gear ReducerJapanese Shimpo planetary gear reducer
TableCompact grade vacuum suction table
Vacuum Pump4kw German Becker pump
Tool MagazineISO-30 8-slot linear plastic steel tool magazine with tool setting blocks
SoftwareRouter-8
TransmissionPrecision helical rack and pinion drive & Z axis direct drive
Ball ScrewTaiwan PMI
Guide RailTaiwan AMT
Table Size1220x2440mm
Max. Traveling Size (X/Y/Z)2540x1320x200mm
Max. Workpiece Height150mm
Dimensions (X/Y/Z)3500x1800x2000mm
Net Weight1800kg

Upgrade:
Positioning air cylinder
Boring aggregate
Pushing device
Protection enclosure
Laser light screen
Spindle cover
Full-body cover
HSK-63F spindle
8-slot carousel plastic steel tool magazine
Movable vacuum suction chucks
+/-90°spindle horizontal processing design
OSAI controller
12KW air cooling spindle
Aluminum alloy tool magazine
Loading & unloading roller table
floating table

Applicable Materials: wood, solid wood, acrylic, PVC, MDF, brass, aluminum, etc.

Prod Model: NA-48
Spindle: 9kw Hsd Spindle
Controller: Taiwan Syntec Controller
Table: Double Layer PVC Vacuum Table
Rail: Taiwan Rail
Rack: Helical
Motor: Delta Servo Motor
Pump: 5.5kw Air Cooling Pump
Dust Collector: 3kw with Two Bags
Software: Type 3
Inverter: Fulling / Delta
Jinan DLM CNC Router Company with more than 5 years manufacturing experience in CNC non-metal computer machining center, and attachment technology research, machinery, parts procurement, production and assembly, software development, electric wiring, business sales, repair and after-sale service, etc. Owing abundant application experience and excellent technical team, can quickly resolve any technical issues about CNC equipment and provide the technical resources of CNC machining processing practice experience.

We offer a comprehensive range of highly-efficient products castering for the needs of different industrial sectors. All of our products feature solid structure, best quality components, superio machining techiques and complete reliability. We marketour products through a strong network extending to the whole world market, including but not limited to Russia, Australia, New Zealand, USA, Brazil, Middle East, South East Asia. Our machines are widely used in various industries, furniture manufacturing, electronic industries, construction industries, audio and musical instruments, stationary gifts, advertisenment engrave, mold, high-speed train, yacht and boats, aircraft industry, machine produce, etc.
