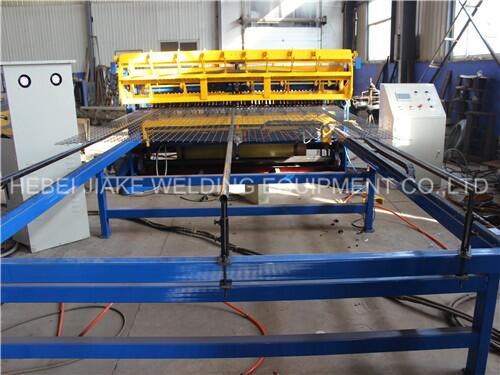

CNC Welded Wire Mesh Machine for Fence Panel

CNC Welded Wire Mesh Machine for Fence Panel
Price: US $ 10000-30000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Description

2.5mm-6mm fence mesh panel making machine


Technical parameter

Model

JK-RM-2500A

Welding electrodes

48pcs

Wire diameter

2.5mm-6mm

Welding speed

50/75times/min

Longitude wire space

50mm-300mm

Rated electrical power

125kva*6pcs

Cross wire space

25/12.5mm-300mm

Needed power

Min.160kva

Width of mesh

Max.2.5m

Weight

4.2T

Length of mesh

Max.6m

Overall size

5.4m*3.2m*1.7m

Longitude wire feeding

Pre-straightened&pre-cut

Cross wire feeding

Pre-straightened&pre-cut

Notes:when wire diameter is 2.5mm-5mm,the minimum longitude wire space is 50 mm.One transformer controls 8 welding electrodes,you can use max 48 pcs.   when wire diameter is 5mm-6mm,the minimum longitude wire space is 100mm.One transformer controls 4 welding electrodes,you can use max 24 pcs.

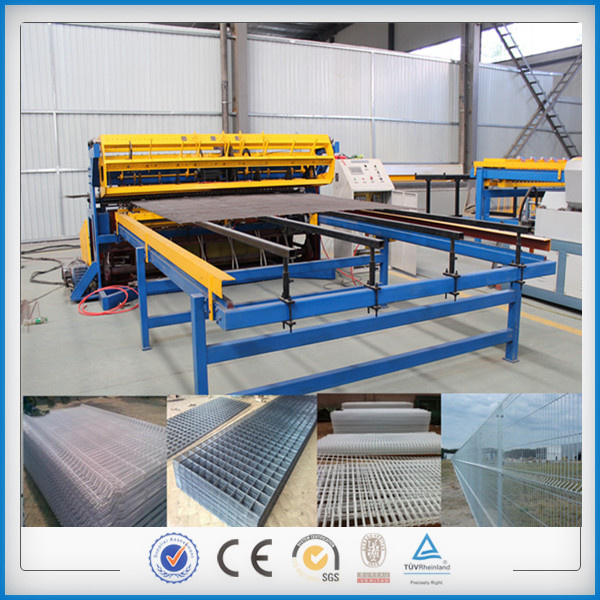

Finished mesh&Application

Certificate
Our Services


1.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.

2.Within guarantee time, if any components are broken under normal condition, we can change for free.
3.We can send our best technician to buyer's factory for installation, debugging and training.
4.Complete installation instructions, circuit diagram, manual operations and machine layout.
5.24 hours technical support by e-mail.

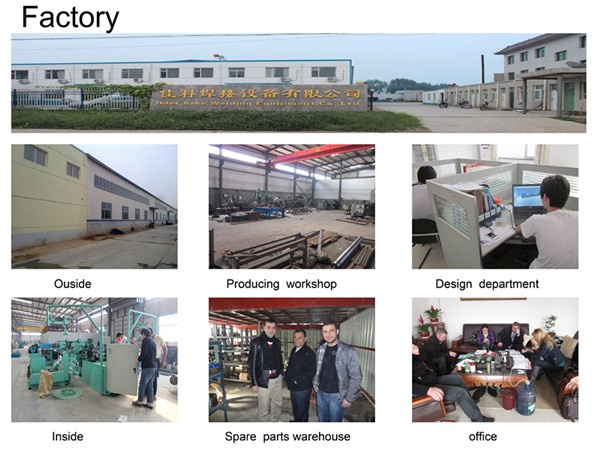

About us



Hebei Jiake Welding Equipment Co., Ltd .is engaged in designing, manufacturing and exporting metel &wire mesh processing machinery, different kinds of wire mesh weaving machine and wire mesh welding machine which locates in Shijiazhuang, Hebei,China. It's the leading manufacture of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.

 Contact info

Inquiry now,we will reply ASAP!

Prod Model: Jk-FM-2500B
Name: Automatic Welded Wire Fence Making Machine
Wire Diameter: 3-6mm
Speed Of Welding: 45-75times/Min
Control System: Japan Panasonic Intelligent PLC
Mesh Width: Max 2500mm
Longitude Wire Space: 50mm-300mm
Cross Wire Space: 25mm-300mm
Longitude Wire Feeding: Pre-Straightened & Pre-Cut
Cross Wire Feeding: Pre-Straightened & Pre-Cut
Color: Blur&Yellow
Hebei Jiake Welding Equipment Co., Ltd, founded in 2000, located at the junction of Bejing, Tianjin and Shijiazhuang----Anping county, which is famous as "Hometown of wire mesh" in China, is a professional manufacturer for wire mesh machines. The company has been developing smoothly and quickly and it has more than 100 employees. And the company has own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipments.

Our main products: Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, roll mesh welding machine, wedged wire screen welding machine, wire straightening and cutting machine, Chain link fence machine, barbed wire machine, nail making machine, wire drawing machine, expanded metal mesh machine, expanded metal machine, gabion mesh machine, hexagonal wire mesh machine, crimped mesh machine and so on.

Jiake's quality has been managed by standard of ISO 9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to Middle East, Kazakhstan, Vietnam, Philippines, India, Thailand, South Africa, Sudan, Polynesia, Russia and other countries and regions.

We stick to the business principle of "Favorable comments from high quality product and service", and thus we we supply a whole-process service from product designing, developing, producing, installing and after-sales servive for the clients with first-class techniques top-grade products. The company has been awarded the title of "Credible and Reliable Product & Service Supplier" by numerous users. We also keep developing on basis of superexcellent management level and advanced development consciousness so as to bring our machinery to both domestic and overseas markets.

We sincerely look forward to your cooperation in future & Warmly welcome your arrival to build our common beautiful future.
