cnc turret punch press, power press machine for package industry
1, high precison
2,Meet CE
Product Description
mechanical turret punch press, hydraulic turret punch press, turret punching press machine
The Machine Feature
A,Equipped with advanced combat head structure, lubrication sealing structure is reasonable, the static and dynamic response characteristics is good, impaction of temperature change is small, without environmental interference.
1,Stroke, speed adjustable
(1), can be automatically select punching stroke for different thickness, improve processing efficiency.
(2), in each point of every single mode on the trip, stamping speed adjustable, can realize fast move of zero stroke and low speed move of punch, improve the process quality, realize no noise.
(3), can be precisely controlled lower dead point, very convenient for special craft processing, such windows, knockouts, roll bars, roll scissors and so on.
2,Overload protection
3,Stable quality
B,Fiveaxis machining center with high rigidity and paired processing turntable, ensuring station hole, positioning hole location accuracy requirements. Ensure concentricity upper and lower dies, greatly extend the life of the mold; simplified turntable structure, extending the life of the turntable; can be equipped with long-oriented mold, improve guiding precision molds to extend die life.
C,International pneumatic components and electrical components to ensure the reliability of the overall performance.
D,Using high-quality production of large lead ball screws, linear guides ensure that the transmission accuracy.
E,With a hard brush and ball mixing table, the machine not only reduces the noise and vibration at work, but also played a very good surface protection for processing sheet.
F,Using the O-closed steel welded body, by the second aging treatment, making removal more thoroughly stress.
G,Use floating clamp, clamping force big, stable feeding; integral dovetail carriage, rigid, clamp easy to move.
H,System with automatic clamp protection, to avoid damage to the mold and clamp, ensuring the operation of the program continuity.
I,Overall beam structure, enhanced rigidity, accurate positioning, in the case of high-speed feeding more stable, eliminate the workbench X, Y axis dynamic offset situation.
J,Equipped with a centralized lubrication system, oil can be fed directly into the lubrication points, reducing the friction of movement to pay, improve life.
CNC system
7.5-inch LCD color monitor
Rear port: Connect the machine control panel USB interface, RS232C, distributed and integrated I / O
1, Axis, independent digital control of three-dimensional coordinate movement.
2, the servo motor controlled precision ball screw drive and locking.
3, the three-dimensional coordinates can be manually fast, slow moving and incremental movement.
4, the absolute coordinates and relative coordinates programming.
5, screw backlash software compensation.
6, decimal data input.
7, using ISO standard NC code programming.
8, recall, modify, delete, insert other editing functions.
9, the dry run self-diagnostics, the program displays an error.
10, overcurrent, overvoltage, overheating, wrong phase protection.
11, breakpoints continue processing functions.
12, clamp pneumatic control
13, operating software: compatible with windows
14 Lubrication system: automatic lubrication system
15, the speed setting: stepless
Turret Punching Machine Techinal Parameter
Parameter
|
Unite |
B32(Closed Type)
|
Nominal Force |
KN | 300 |
Max. Process
Plate Size |
mm |
1250*2500 |
Max. Process Plate Thickness |
mm |
≤6 |
Max. Punch Hole Size |
mm |
88.9 |
Max. Plate Weight |
kg | 150 |
Number of Station |
set | 32 |
Precision |
set |
±0.10 |
Max. Punch Frequency |
hpm |
stroke 8mm-500
Stroke 30mm-100 |
Max. Plate Move Speed |
m/min | 120 |
Rotating Speed |
rpm | 30 |
X Axis Stroke |
mm | 1250 |
Y Axis Stroke |
mm | 1250 |
Number of Control Axis |
set |
4 axis |
CNC system |
|
Germany Siemens |
Air Pressure |
mpa |
0.55 |
Dimension |
mm |
5200*3800*2200 |
Motor Power |
kw |
4.5 |
Machine Type |
|
Closed Type |

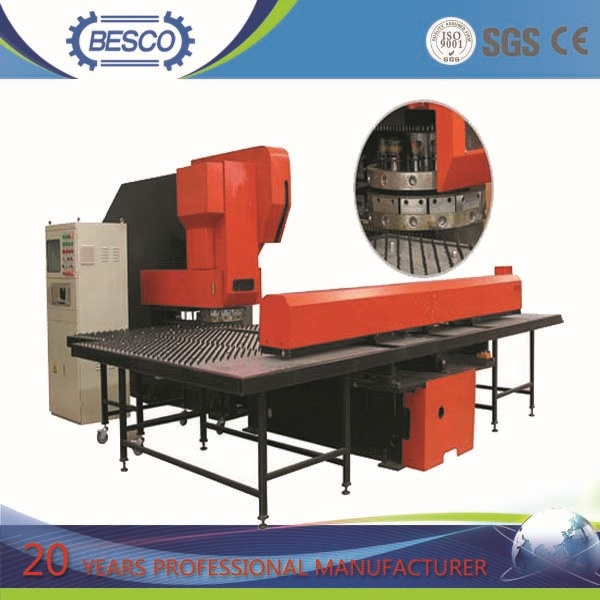

siemens systerm cnc turret punching machine/automatic hole punching machine/cnc punch press picture
Besco Machine Tool Limited established at 1997, located at Dongying City, Shandong Province China, is a professional machine manufacturer, our main product including press brake, shearing machine, bending machine, power press, hydraulic press, duct manufacture machine and so on.
Our company occupy 20000 square meters, the manufacture factory occupy 10000 square meters, annual manufacture value is above 80000000 yuan RMB, in which more than 25000000 yuan RMB are for exporting. Our company have perfect after sale service system, there are total 14 sale and after sale service agencies in different big cities, 26 technicians special for after sale service and machine maintenance. At oversea market, our company is going to establish departments at European and Middle Asia, to enlarge our service area.
All the times we put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include: Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers" as our target, hope to create the best future with old and new customers.
