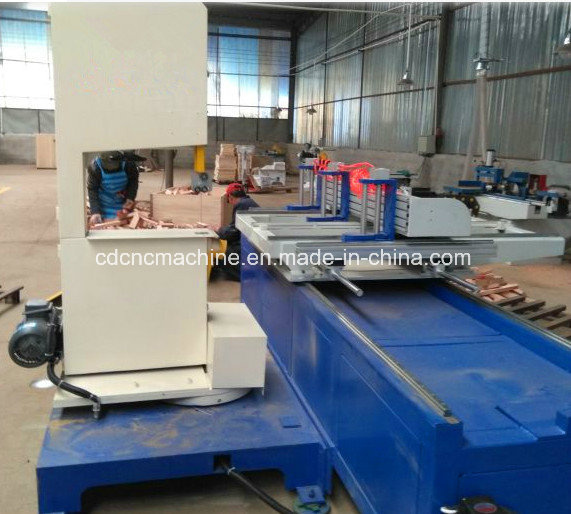

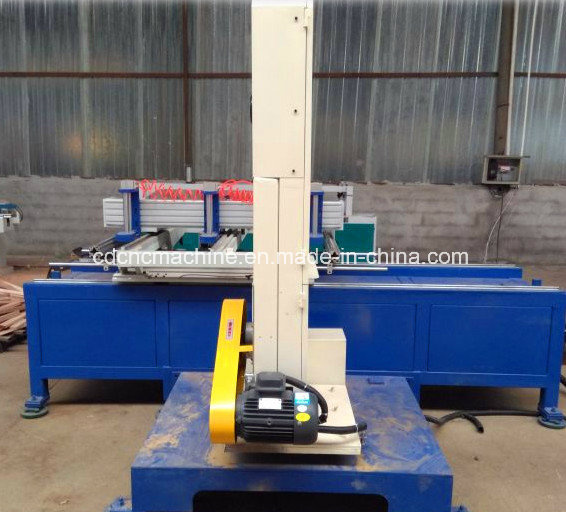

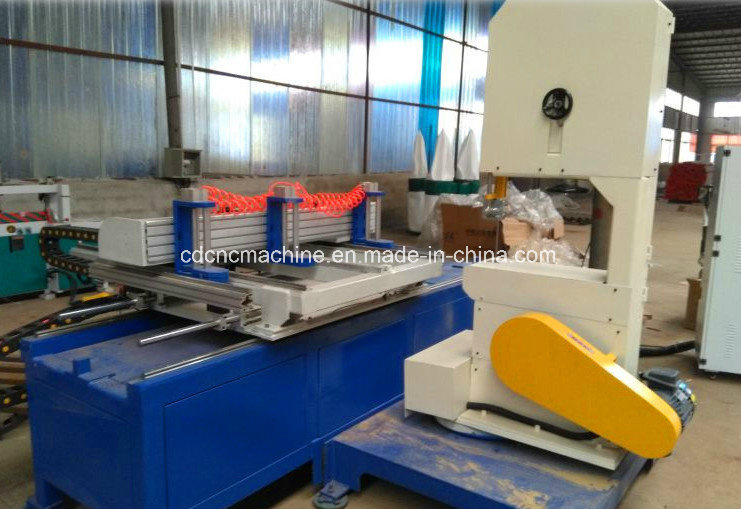

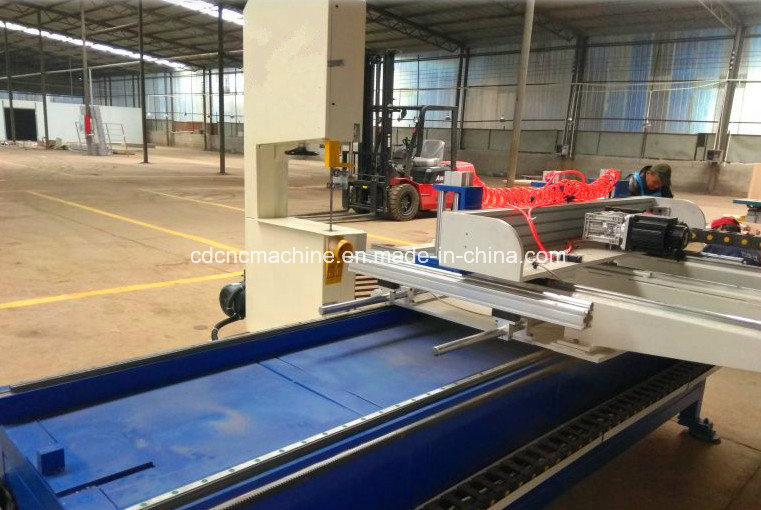

CNC Sliding Table Saw for Curve Wood Cutting

CNC Sliding Table Saw for Curve Wood Cutting
Price: US $ 7000/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Money Gram

cnc sliding table saw for curve wood cutting








Characteristics

(1).the processing efficiency is high, the processing work-piece surface is good quality and no need to be crossed.

(2).Save the timber, processing range is wide, automatic programming, theoperation is easy, man-machine division, it can reduce the risk of industrial injury, it is an ideal production equipment for wood furniture and other enterprises.

(3).This machine no need to rotate the saw blade, it can easily rotate 90' , and the used saw range is wide, the width is from 10 mm to 20 mm, scientific structure design avoids the loss brought by the saw breaking and loss, extend the life of the saw blade.

(4).Few area for this machine in the workshop, processing range is wide, but with high efficiency.
(5).It is an affordable and economy machine, it can solve the curve processing for hundreds of users.
(6).The open feeding platform is more convenient, and the sawing efficiency is higher. Strong cylinder fixtures, the clamping device is reliable, clamping rang e is wide, it can saw the multi-layer sheet synchronously.
(7).The saw clamping device can enhance its precision.
(8).Advanced numerical control system with special CAD software, automatic discharging, it can save the timber, and it is also easy to learn and operate.

Applications:

Chair legs,chair backs,dinning table,hatstand,desk,bed,home decorations etc

Parameters

Mode CNC1212 CNC1225
Max size of work-piece 1220*1220mm 1220*2500mm
Max working thickness 250mm 250mm
Saw wheel diameter 600mm 600mm
Saw length 25*0.9*4470 25*0.9*4470
Min cutting radius R80 or R95mm R80 or R95mm
Saw table jaws deepth 760mm 760mm
Saw tilting   ±90°   ±90°
X-Axis Motor 15n/m 15n/m
Y-Axis Motor 10n/m 10n/m
Z-Axis Motor 6n/m 6n/m
Spindle motor 4kw 4kw
X-Axis Maximum Speed 40m/min 40m/min
Y-Axis Maximum Speed 40m/min 40m/min
Z-Axis Maximum Speed 180 °/sec.3  180 °/sec.3
Processing Speed 1-25n/m 1-25n/m
Return speed 6-40n/m 6-40m/min
Air pressure 0.6-0.8mpa 0.6-0.8mpa
Dust outlet diameter  Φ100  Φ100
Net weight 2700kg 3000kg
Overall dimensions 2000*1400*2300mm 2000*1400*2300mm
  2400*2350*1500mm 3800*2350*1500mm

Warranty:

(1). The engineers of the original factory are available to do all kinds of the original factory are available to do all kinds of oversea machinery service. In some countries, we have oversea agents doing after sale service in time and professionally.

(2). we also  offer 24 hours heart to heart service on-line or mobile.

(3).Your technologists could attend the training in our factory and on-line which be free of chaege

(4).The warranty of CNC Curve Band Saw  is 12 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.

(5). We offer you best agent price and distributer price for our further cooperation  .

(6). we can offer special custom-made according to your request.




Prod Model: CDS-001
Type: Band Saw
Layout: Vertical
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Certification: ISO
