| Price: | US $ 0.15-2.16/Piece |
|---|---|
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Product name | 90 Deg BSP Female Flat Seat(22291) |
| Standard Plating | Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow |
| Salt Spray Test | > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours ) |
| OEM Service | Available.Customer only need to provide the product drawing or samples |
| Sample | Free sample. |
| PART NO. | Thread E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 22291-04-04 | G1/4×19 | 6 | 4 | 30 | 8 | 34 | 19 |
| 22291-06-06 | G3/8×19 | 10 | 6 | 35 | 9 | 41 | 22 |
| 22291-08-08 | G1/2×14 | 12 | 8 | 41 | 10.5 | 48 | 27 |
| 22291-12-12 | G3/4×14 | 20 | 12 | 65 | 13.5 | 63 | 32 |
| 22291-16-16 | G1×11 | 25 | 16 | 76 | 15.5 | 70 | 41 |
| 22291-20-20-W | G1.1/4×11 | 32 | 20 | 91 | 15.5 | 82 | 50 |
| 22291-24-24-W | G1.1/2×11 | 40 | 24 | 109 | 17.5 | 98 | 55 |
| Note:1.For use with braide hoses.2.if use with spiral hoses,hose fitting series number is 22292-xx-xx | |||||||
| 1.Ferrule | FERRULE for SAE 100R1AT/EN853 1SN HOSE |
| FERRULE for SAE 100R1A EN853 1ST HOSE | |
| FERRULE for SAE 100R2AT/DIN20022 2SN HOSE | |
| FERRULE for SAE 100R2A/EN853 2SN HOSE | |
| FERRULE for SAE 100R1AT- R2AT,EN853 1SN-2SN and EN 857 2SC | |
| FERRULE for 4SP,4SH/10-16,R12-06-16 HOSE | |
| FERRULE for 4SH,R12/32 HOSE | |
| 2.Swaged Metric Fittings | Mertic Flat Seal Fittings. |
| Metric Multiseal Fittings | |
| Metric 60°Cone Seal Fittings | |
| Metric 74°Cone Seal Fittings | |
| Metric 24°Cone O-RING Seal L.T. Fittings | |
| Metric 24°Cone O-RING Seal H.T.Fittings | |
| Metric Standpipe Straight Fittings | |
| JIS Metric 60°Cone Seal Fitting | |
| 3.Swaged British Fittings | BSP O-RING Seal Fitting |
| BSP Flat Seal Fittings | |
| BSP Multiseal Fittings | |
| BSP 60°Cone Seal Fittings | |
| BSPT Fittings | |
| JIS BSP 60°Cone Seal Fittings | |
| 4.Swaged American Fittings | SAE O-RING Seal Fittings |
| ORFS Flat Seal Fittings | |
| NPSM 60°Cone Seal Fittings | |
| JIC 74°Cone Seal Fittings | |
| NPT Fittings SAE Flange L.T. Fittiings | |
| SAE Flange H.T.Fittings | |
| 5.Staplelok Fittings | Banjo Double connection |
| Interlock Hose Fittings | |
| 6.Metric Adapters | Metric Thread O-RING Face Seal Adapters |
| Metric Thread Bite Type Tube Adapters | |
| JIS Metric Thread 60°Cone Adapters | |
| Metric Thread 74°Cone Flared Tube Adapters | |
| 7. British Adapters | BSP Thread 60°Cone Adapters |
| JIS BSP Thread 60°Cone Adapters | |
| BSPT Thread Adapters | |
| 8.American Adapters | ORFS Adapters JIC 74°Cone Flared Tube Adapters |
| NPT Thread Adapters. |
| Volume | 0.022m³ for one carton |
| Weight | According to your order |
| Packaging Details | The normal package is carton box(Size:L*W*H). The carton can hold 300 big size ferrules and 500 small size ferrules. Or we can pack it according to customers special request. |
| Shipping Service | 1.Orders will be dispatched in 30 days after payment, depending on quantities. 2.We Always choose the most economical and reliable shipping company to make sure you receive the goods in time. 3.The tracking number will be offered once the consignment is shipped. 4.Professional customer service to answer your questions regarding you |

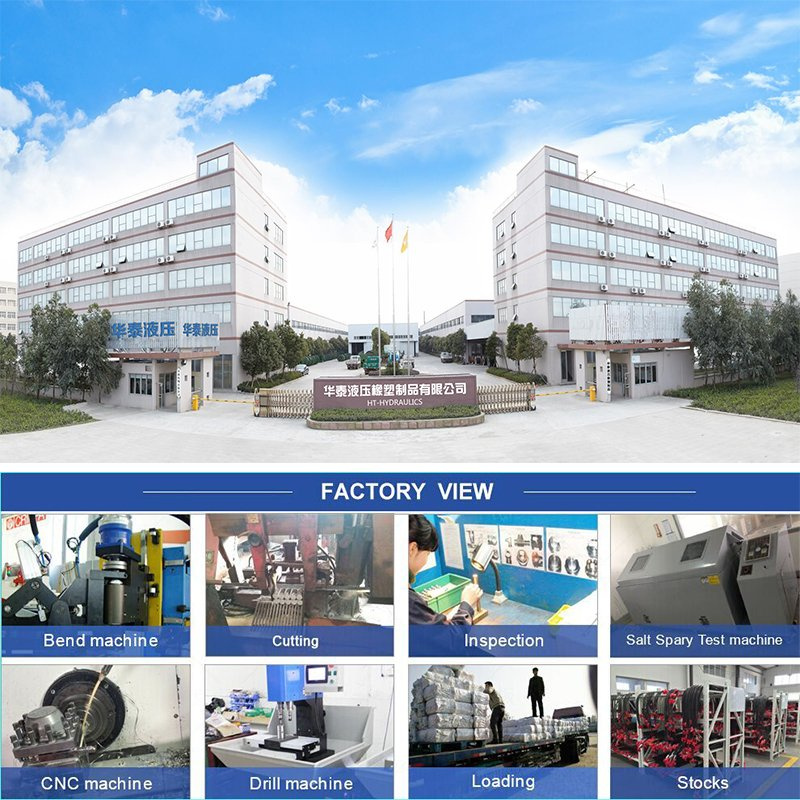

Jingxian Huatai Hydraulic Rubber Co., Ltd is located in Jingxian, Hebei Province which is well known as the hometown of hydraulic hose and tube. The company enjoys a superior geographical location, 300km far from the capital city Beijing and 1 hour by high speed rail train; 1000km far from Shanghai and 4 hours by high speed rail train. Moreover, the location is close to Tianjin and Qingdao ports and convenient for import and export.

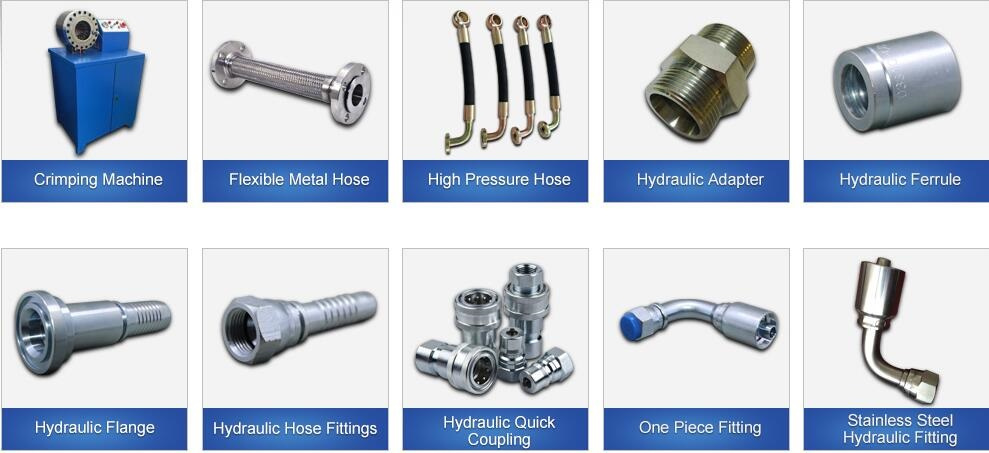

We specialized in making Hydraulic fittings, Hydraulic adapters, Hydraulic couplings, Hydraulic hose fittings, Hydraulic ferrule, Hydraulic flange and so on, with high quality and the best price.
Our products are used in precision parts,machinery accessories,truck and auto parts,industral parts,mining accessories,off-shore applicances,agricultral facilities and construction material ect…
Other standard hose fittings are available according to customer's requirements.If you have any questions about our products , please contact me any time. Any suggestion about our factory or our products is appreciated! Welcome to visit!
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
| Prod Model: | 22291 |
|---|---|
| Technics: | Hot Forged, Zinc Plating, Nickel Plating, Cr3, Cr6 |
| Type: | Coupling |
| Application: | Hydraulic Systems Gas, Oil, Water |
| Color: | White, Yellow |
| Thread: | DIN, Jic, BSPP, BSPT, NPT |
| Brand Name: | Hua Tai |
| Service: | OEM ODM Service |
| Main Port: | Tianjin, Ningbo, Guangzhou, Shanghai |
| Business Type: | Manufacture |
| Salt Spray Testing: | 72hours |
| Standard: | BSW |
| Material: | Medium Carbon Steel |
| Connection: | Female |
