| Price: | US $ 48000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| 1 | Cutting capacity | Round bar | 20mm--90mm |
| Angle material | 20mm--60mm | ||
| Round tube | 20mm--72mm | ||
| Square tube | 20mm-60mm | ||
| Remnant material length | 55mm(min.) | ||

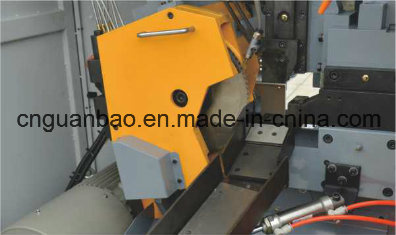

| 2 | Head Spindle | ||
| Application of TCT tungsten carbide circular saw blade | Φ315x2.0mm/Φ315x2.0mm | ||
| Application of HSS high speed steel circular saw blade | Φ250-Φ285/Φ2.0-2.5mm | ||
| Rotation number of cutter | 30-2180rpm(stepless speed regulation) | ||

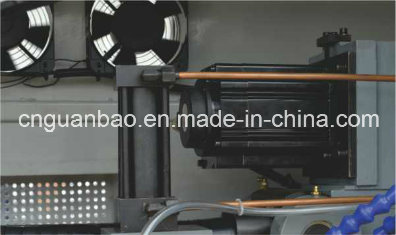

| Spindle driving motor | 7.5KW/6P variable frequency motor | ||
| Tool gap compensation device | Magnetic powder brake | ||
| Tool shock proof parallel block | Tungsten carbide | ||
| Tool chip cleaner | Round steel brush | ||
| Cut-off feeding way | Rock type/AC servo motor | ||
| Clamping way | Hydraulic/ Horizontal and vertical each one | ||

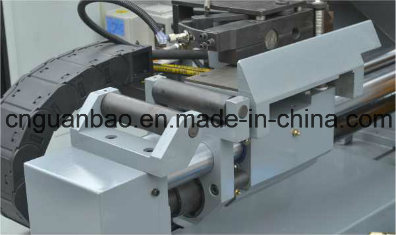

| 3 | Sizing Feeding (GFC) mechanism | ||
| Driving way | AC Servo motor/Precision ball screw | ||
| Clamping mode | Horizontal hydraulic | ||
| End cutting length | 8-99mm | ||
| GFC feeding amount | 4-550mm(single time)/9999mm(multi-times) | ||
| 4 | Automatic feeding device | ||
| Material length | 2000-6000mm | ||
| Material placing area | 980mm | ||
| Feeding way | Hydraulic lifting material | ||
| Angle material slip device | Optional | ||
| 5 | Hydraulic device | ||
| Driving motor | 3.75KW(5HP)/4P | ||
| Driving pressure | 70kg/cm2(7Mpa) | ||
| Oil capacity | 90 L | ||
| 6 | Air pressure device | ||
| Working air pressure | 4-6kg/cm2(55-85psi) | ||
| 7 | Machine size and weight | ||
| Size(LxWxH) | 7100*2200*1880 | ||
| Weight | 2800kgs | ||
| 8 | Equipment & device | ||
| Automatic lubrication system | Timing forced oil | ||
| Automatic distributor | Pneumatic reciprocating | ||
| Chip conveyor | Chain plate | ||
| Oil mist cooling device | Oil mist lubrication sprayer | ||
| Cutting fluid cooling device | 0.09kw/2p/cycle cooling | ||
| Working lamp | Quartz lamp/ waterproof and dust-proof | ||
Welcome ODM or OEM business!
FAQ: |
1) Q: Can i have your quotation? A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine 2) Q: Do you have overseas service? A: No,but we normally help our customers to solve the problems through phone,Email, skype, internet video. high efficiency. We offer one year guaranteen, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client 3)Q: What is the voltage and Hertz in your country? A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the voltage and Hertz according to your requirment. 4) Q: How about the payment term A: T/T 30% deposit, 70% of balance paid before shipment. |
| Prod Model: | GB-90S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Speed Cutting: | CNC Circular Saw |
| Saw Type: | Circular Saw |
| Application: | Metal Saw |
| Type: | Fixed |
| Power Source: | Electricity |
| Brand: | Zodel |
