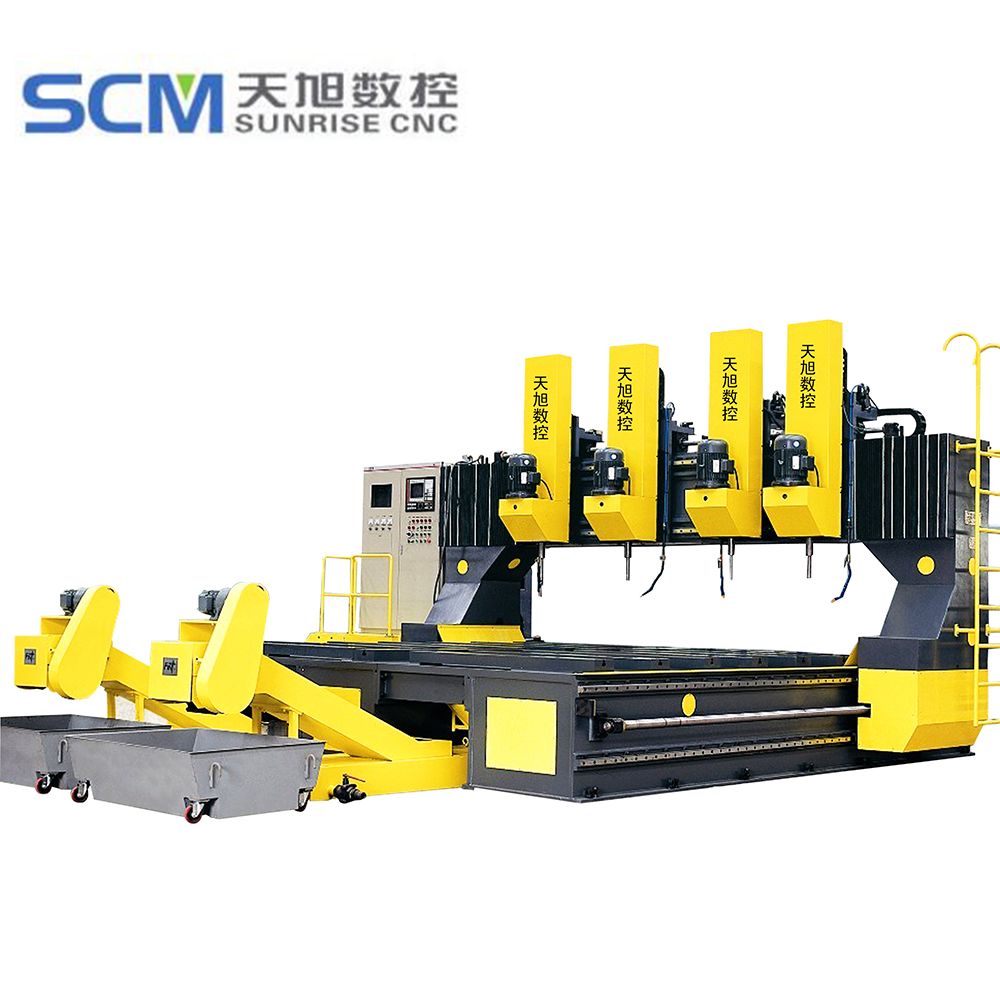

CNC Gantry Moving Plate Drill Machine

CNC Gantry Moving Plate Drill Machine
Price: US $ 105000-115000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Applicable Industry:
Used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. and large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.
This equipment consists of lathe bed work table, movable gantry, longitudinal slide carriage, numerical control slide board, drill power box, automatic chip cleaner and circulation cooling system, electrical system etc.

Product feature:
1. Servo slide drilling unit heads, with the function of drilling holes, reaming, chamfering, milling of groove, can work together, or work separately.
2. Automatically find pot to dill holes in X,Y axis. Spindle rotation speed and feed velocity are stepless adjustment.
3. T-groove is set on lathe bed, using pressure plate to clamp workpiece.
4. Equipped with the edge finder device to find the center of workpiece.
5. Programming software based on WINDOWS with CAD, fast and convenient programming, and visual previewing.
6. Automatic chip removal, coolant circulation cooling.
7. Key machinery, hydraulic pressure, electric components all famous brands.
8. First choice equipment of tube plate drilling in heat exchange, chemical & mechanical industry.
9. Controlled by PLC system; Shown by LCD screen of LENOVO computer.





Specifications:
ModelTPLD2020TPLD2525TPLD3030
Max. workpiece size (mm)2000x20002500x25003000x3000
Max.thickNess (mm)200
WorktableWidth/distance of T slot22
Drilling spindleQuantityOne or more (By customer's request)
Max. diameter of drillingΦ50mm
Morse taper of spindle#4
Rotating speed (rpm)120-560 frequency conversion
Max.feed stroke (mm)350
Feeding speed (mm/min)0-4000Stepless adjustment
Motor power (kW)5.5
Positioning precisionX,Y axis<=0.1mm/ (full length)
Re-positioning precisionX,Y axis0.1mm/ (full length)
Motor power (kW)Servo motorsX axis2x1.8 kW (Dual drive)
Y axis1.3 kW
Z axis0.85 kW
Motor of scrap cleaner0.75
Motor of cooling pump0.43
Type of chip-conveyorChain-plate type
Quantity of chip-conveyor1
Chip-removal speed (m/min)1
CNC systemSpain FAGOR8055 CNC system
Net weight (Kg)About 16000About 20000About 24000
Overall dimensions(L×W×H) (mm)About 4590×5050×3200About 5090×5550×3200About 5590×6050×3200
Other models can be made by customers' request.






  Main Components List:
NO.item modelManufacturer
Main electric components
1CNC system8055Spain FAGOR
2Servo motor1.8KwJapan YASKAWA
 Servo driver 1.8kW
3Servo motor1.3kW
 Servo driver1.3kW
4Spindle motor7.5kWJapan SUMITOMO
5frequency transducer of spindle7.5kWREXROTH or SIMENS
6low-voltage apparatus German SIEMENS
7Business computerLCDLenovo
8Proximity switchAUTONICS
Main hydraulic components
1Main magnetic valve Italy ATOS
Main mechanical parts
1ball-screw Taiwan HIWIN
2Linear guideX/Y axisTaiwan HIWIN
3Linear guideZ AxisTaiwan HIWIN
Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.




Spare Parts List:
No.Code NameNameQuantityRemark
1 Air gun1
2 Tools in Common Use(including:a set of inner hexangular wrench, adjustable wrench, solid wrench)1 batch
3OpenProximity switch1AUTONICS
4CloseProximity switch1AUTONICS
55#-4#, 4#-3#, 3#-2#, 2#-1#Reducing sleeve 1 set
6Quick change wrench for drill head  1
7¢18high speed steel handle twist drill1
8¢60high speed steel handle twist drill1
9Connection pole 1
10¢80 1
11 Upper computerProgram CD1
12 Standby paint2 pail1pail for main color and 1pail for warning color
13 Quality Certificate,Packing List1 each
14 Instruction manual(mechanical part, electric part and hydraulic part)2 each
Prod Model: TPLD3025
Structure: Vertical Drilling Machine
Layout: Vertical
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
JINAN SUNRISE CNC MACHINE Co., Ltd. Located in Jinan Economic Development Zone, is a specialist company dedicated to developing, studying, designing, manufacturing, and selling CNC machines, for example, drilling machine, punching machine, band sawing machine, shearing machine, bending, beveling, chamfering, milling, welding machines and other optical-electro-mechanical integration equipments, which mainly used for processing angle steel, metal plate, H-beam, channel steel, box steel, round steel, flange plate and etc in power tower, transmission tower, telecom tower, steel structure, central air-conditioner, automobile, household appliance, petrochemical, construction, bridge, boiler and chemical engineering industries.

We are a team of experienced and dynamic professionals who are experts in handling precision work through scientific processes. The professional excellent talents unite a powerful and creative team of design, research and development, which build our solid technical strength and competitiveness. And our company is developing fast and supply specialized service to all customers.

Manufacturing customer oriented products has always been our supreme concern. We believe that quality is the soul of an enterprise forever. Therefore, we never compromised with the quality of our products. We adopt advanced, scientific modern management ideas and system to realize supervisory control among all aspects of produce, inspection, sale and service etc., which help control quality, increase work efficiency and guarantee products' stability, reliability and precision. Therefore, the enterprise can achieve rapid and sustainable development.

SUNRISE is focus on quality and company's image. We win market with good quality and service. The company has already passed International Quality Management System ISO9001: 2008 certification for many years and smoothly got the title of High and New Tech Enterprises. And has more than ten own intellectual property rights and patent technology. We have own import and export right. Our products exported to America, Russia, Ukraine, Albania, Romania, Iran, Israel, Jordan, Turkey, Uzbekistan, Egypt, UAE, Saudi Arabia, Lebanon, Mexico, Argentina, Brazil, Morocco, South Africa, Kenya, India, Australia, Indonesia, Vietnam, Sri Lanka, Singapore, Malaysia, Thailand, Myanmar etc.

Quality make brand, honesty win market, harmony converge talents, and innovation promote development. Our ability to consistently provide innovative, high quality products that outlast and outperform the competition, is why we are the one of the most successful companies offering the most advanced and productive solutions in the CNC machine industry.

With the development of SUNRISE, now our company has occupied important position in this industry. Due to the orders and sales performance is continuously improving, in order to better development, to meet customer's demand, and to provide customers high-quality equipment with the shortest time, our company have bought the new site, the area about 50, 000 square meters, this will make sufficient preparation for development of our company and every customer.
