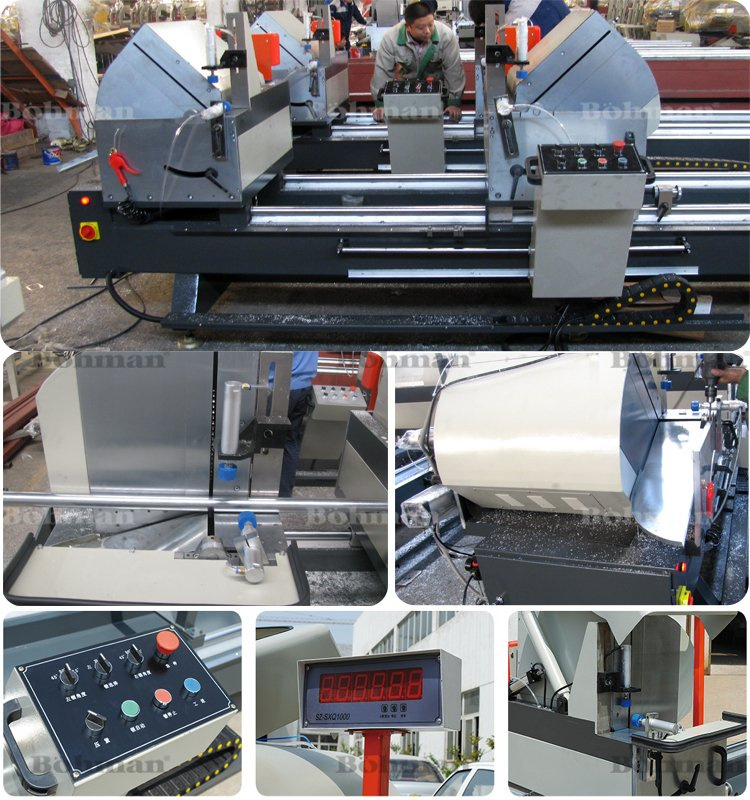

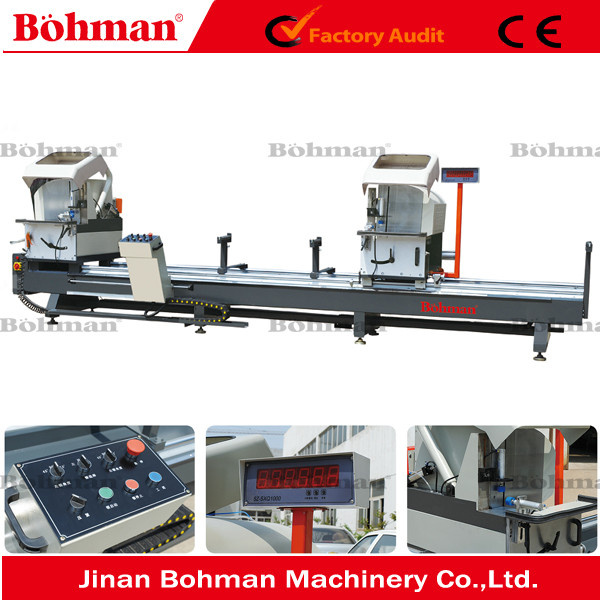

CNC Digital Display Double Head Precision Cutting Saw for Industrial Aluminum Profiles

CNC Digital Display Double Head Precision Cutting Saw for Industrial Aluminum Profiles
Price: US $ 8800-10000/Set
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal

Production Name: Aluminum Digital Display Double Mitre Saw

Features:

  1. Imported carbides blase is of accurate processing and high endurance.

2.Saw blade rotates smootjly due to gigh accurate main spindle.

3.Uniformspeed feeding and smooth motion is due to air hydraulic damping cylinder.

4.Saw blade rotates smoothly due to high accurate main spindle.

5.The feeding system adopts the importecd linear guide pair,with high accuracy and stability.

 6 Two saw heads are adjustable and cut the profiles in 67.5,45 and 90 freely..

7.Auto-opening shield maked the operation safety.

8.The machine adopts digital display device,the length is more accurate,more intuitive to operate.

Technical Parameters:

Power supply380V 50Hz
Power2x2.2Kw
Operation air pressure0.5-0.8Mpa
Motor speed2800r/min
Blade specificationΦ500xφ30mmx4.4xZ120
Max. Cutting length400-4200mm
Cutting angle90º~67.5~45º
Cutting widthxheight135mmx200mm
Overall dimension5530*1650*1500
weight1850kgs





Service

1.All equipments is 12 months guarantee,lifetime maintance.
2. Engineers available to service machinery overseas.
3. Make specialized solutions for clients.
4. 24-Hour on line by Email , Skype ,WhatsApp or call .
5. Can get spare parts quickly from our Agency or Headquarters



Payment Terms
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union
Quality Testing
Before delivery ,our engineer must make the Testing for every machine, to make sure thatour machines can work with high performance!

Prod Model: LJZ2X-500*4200
Weight: 1850kgs
Jinan Bohman Machinery Co., Ltd., located in West-high Speed Railway Station, Jinan City, Shandong Province, is a high-tech enterprise specialized in the research, manufacture and sale of aluminum-plastic door & window production equipment, high and medium grades of insulating glass production equipment and CNC router. Our products sell very well in China and are exported to many foreign countries and regions. We have many experienced technical engineers and experts who have been worked in this industry for many years. We are familiar with the situation of this industry at home and abroad. We have mastered the latest technique of the similar equipment, and have got strong ability of product research and technique support.

Based on the modern technique, we have produced all kinds of aluminum-plastic door & window production equipment and high and medium grade insulating glass production equipment, with modern technology and stable performance. Our main products are saw cutting equipment, milling equipment, angle seam cleaning equipment, angle joint equipment, various specifications of vertical insulating glass production lines, glass curtain wall production lines, LJT butyl coating machines, GT03 bicomponent rubber spreading machines, compound sealing spacer insulating glass production lines and all kinds of auxiliary equipment.

By virtue of specialized production, good quality and excellent after-sales service, Bohman has got wide recognition and praise from customers at home and abroad. Since the establishment of our company, we have taken "being an honest enterprise, producing the best equipment" as our tenet and taken the quality of our products as the lifeline of our enterprise. We also focus on the research and development of energy saving and environmentally friendly products, try to make the best equipment for manufacturing aluminum-plastic doors & windows and insulating glass and make Bohman a world famous brand.
