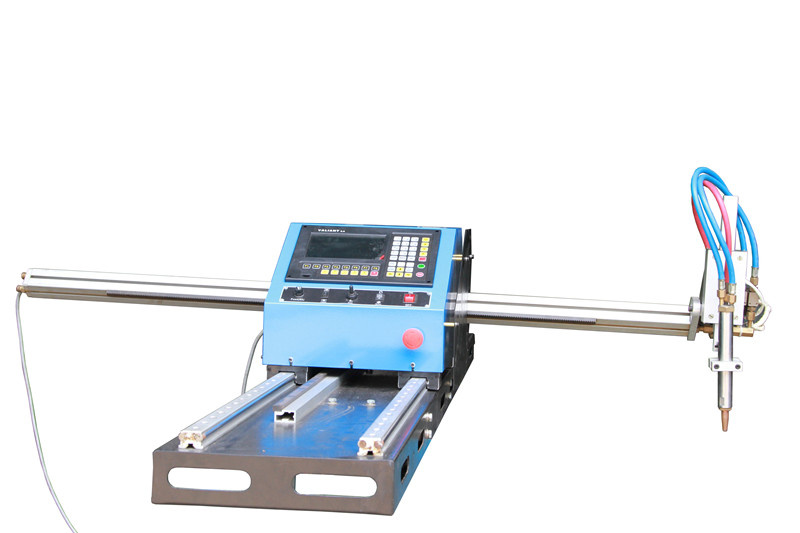

CNC Cutting Machine for Metal Gas Cutting CNC Gas Metal Working Cutter

CNC Cutting Machine for Metal Gas Cutting CNC Gas Metal Working Cutter
Price: US $ 2000-2500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Description

Technical Data of CNC PLASMA CUTTING ZNC-1500

Effective cutting width 1500mm1500mm
Effective cutting Length2500mm3000mm
Rail can be lengthened as per user's demandRail can be lengthened as per user's demand
Longitudinal Rail Length3000mm3500mm
Rail can be lengthened as per user's demandRail can be lengthened as per user's demand
Cutting ModeFlame only; Plasma only; Flame and PlasmaFlame only; Plasma only; Flame and Plasma
Drive ModeSingle-sideSingle-side
Drive MethodRack and pinion drive for X and Y axesRack and pinion drive for X and Y axes
Flame Cutting Thickness6~100mm6~100mm
Plasma Cutting Thickness1-60mm
(Refer to data of plasma power source)
1-60mm
(Refer to data of plasma power source)
Cutting Speed10-3000mm/min10-3000mm/min
Moving Precision0.01mm per step0.01mm per step
Nesting Software
 (optional)
FastCAM PortableFastCAM Portable
Flame Cutting Gasacetyleneacetylene
Plasma cutting gasPressed air, , N2Pressed air, , N2
Marking ToolYesYes

Feature1. Affordable, especially for small and medium enterprises.
2. Small size, light weight, can be moved and do not take up fixed place.
3. The built-in graphics database, can store more than 1000 files to be cut.
4. Reserved plasma cutting function interface, support for plasma cutting.
5. Important parts such as motors, drives, solenoid valves etc. are used well-known brands.
6. Cutting torch electronically controlled automatic lift, convenient and quick.
Note1.  Thickened steel rail.
2.  7-inch color display with FastCAM Portable Edition nesting software.
3.  Effective cutting length up to 7.5M.
4.  Reserved plasma cutting function interface, support for plasma cutting.
5.  Torch electronically controlled automatic lift, convenient and quick.
Function1. It can cut any arbitrary planar complex graphics, support for flame and plasma cutting.
2.Alternative to hand torch, semiautomatic cutting and profile cutting machine upgrade products.
3. Especially suitable for mass production of precision and complexity of planar graph,
4. Greatly improve cutting efficiency, reduce secondary processing and production costs.

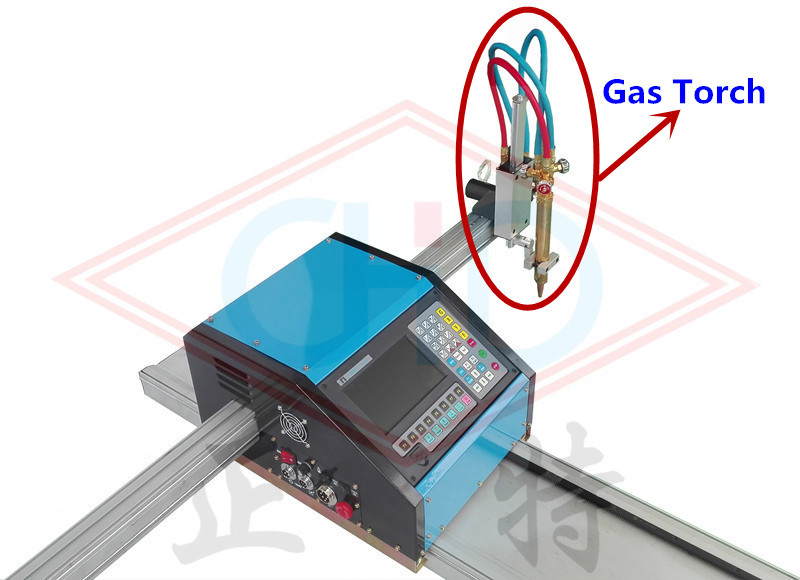

CNC Gas cutting machine  (CNC cutting machine +Gas Torch)

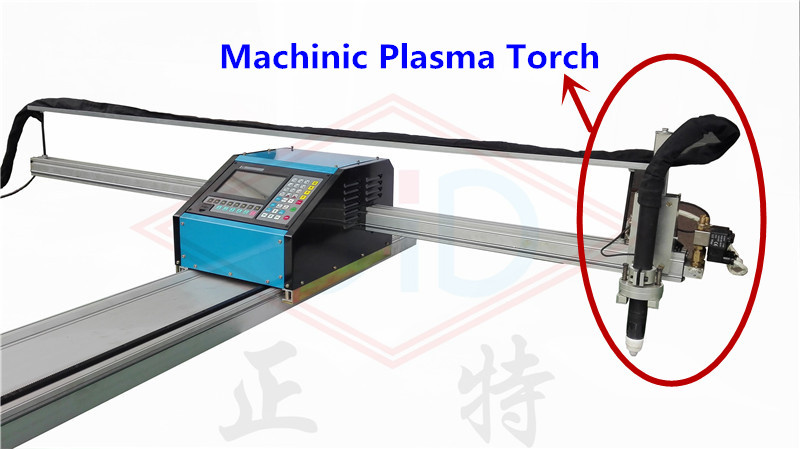

CNC Plasma cutting machine (CNC cutting machine +Machinic Plasma Torch +Plasma Source)

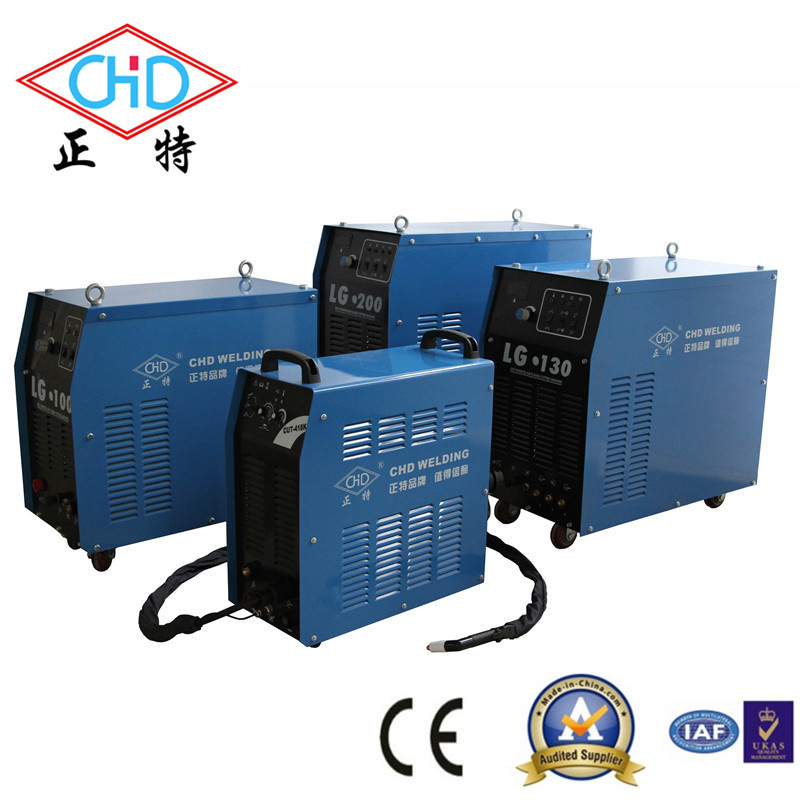

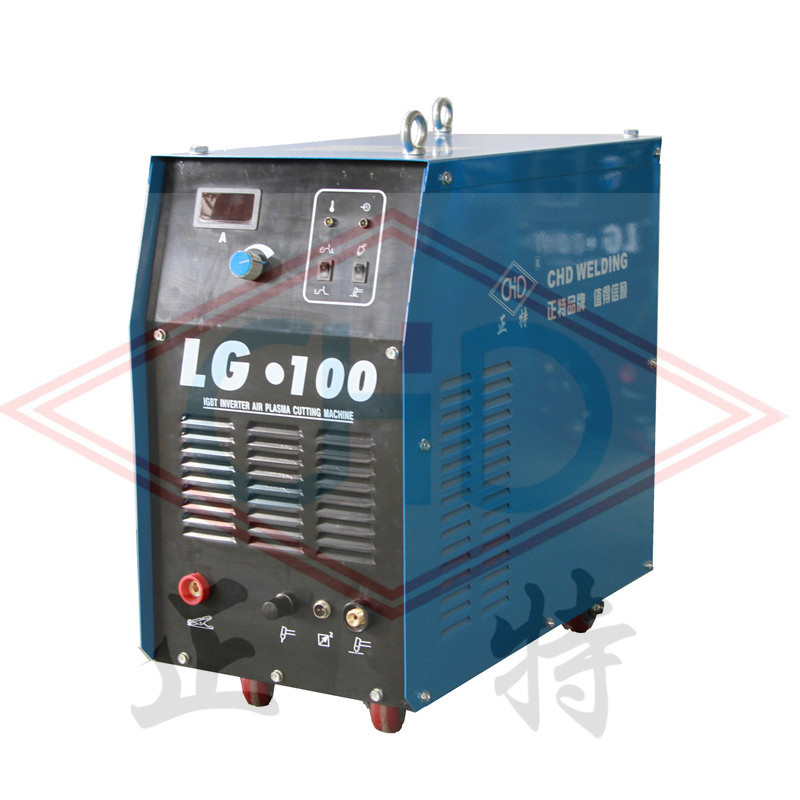

Related Links of Plasma Source

http://chdcutting.en.made-in-china.com/product/rKaxNmqZrOhS/China-Inverter-Air-CNC-Plasma-Cutter-for-Plasma-Metal-Cutter.html




FAQ:

Q: Are you a manufacturer or trading company?
A: We are manufacturer with the plant area of 24,000 square meter in Shanghai, and we have also production bases in Wenzhou and Chengdu.

Q: What material could the machine cut?
A: all kinds of metal plate, includes carbon steel, stainless steel, aluminium, copper and Zinc etc.

Q: what's the lead time or delivery time?
A: 7 to 20 working days

Q: what's Warranty?
A: 12 months

Q: How is your after-sales service?
A: Consumable parts will be supplied in free, shipped to you with your purchased machine.

Q: Is there oversea engineer available?
A: Our engineer could service you 24 hours online by Skype, or on cellphone, and they can   go to your country to service you if necessary.

Or you can tell us the following info of cnc plasma cutting machine, we'll suggest you the best item needed.
  1. Material you'll cut.
  2. Thickness of Material.
  3. Cutting range (Length, width) you want.
  4. Handheld torch or automated machine you prefer.

CHD Brief Introduction





Advantages of CHD:

1. Over 20 years experience. CHD was founded in 1989, is a High-Tech Enterprise which integrates R&D, Production,     Sales and Service of cutting machine.
2. Certificates including ISO9000, SGS, CE, CCC, etc.
3. Large Production Capacity. 16 R& D stuff, 120 Workers, 3 Production Bases,Plant of 53000 Square Meters. 10 Production Lines.
4. Full line of Products. Cutting Machine, Plasma Power, Welding Machine, Beveling Machine, Circular Cooling Water Tanks, Consumables.
5. Honesty. All parameters (cutting thickness & precision) are actual operation parameters without overstate.
6. Good after service, not one-off business.
7. One year guarantee. Free spare parts service on base of order amount. Engineer oversea service.
8. Adjustable Short Lead Time.




Prod Model: ZNC1500
OEM: Yes
Color: as Per Customer's Requirement
Rail: Thickened Steel Rail
Screen: 7" Color Screen
Plasma: Yes
Nesting Software: Fastcam
Cutting Thickness: as Per Plasma Source
CHD was founded in 1989, is a High-Tech Enterprise which integrates R&D, Production, Sales and Service of cutting machine.

CHD, as one of the largest metal cutting machine manufacturers, headquartered in Shanghai, China. With 3 production bases, totally plant area of more than 53, 000 square meters, respectively located in Shanghai, Chengdu and Wenzhou.

CHD focus on quality control, has passed many certification audits including ISO9000, SGS, CE, CCC, etc., was one of the world's largest manufacturer's partners of steel plate cutting equipment. CHD cutting machines have already been exported to more than 100 countries in the past 20 years.

Products

CNC Cutting Machines, ZNC Portable Cutting Machine, Air Plasma Cutting Machine, Gas Cutting Machine, Pipe Cutting Machine, H-Beam Cutting Machine

Comapny Honor

20 years experience in cutting machine and welding machine market

20 years continuous title"A promise-keeping&Faithworthy unit"

Drafter of the national standard of the arc welding machines

Drafter of the national standard of the welding coupling equipments

"Hope Award"unit of the Chinese welding industrial

"Keeping&Developing Award" unit of the Chinese welding industrial

"Most improved Award" unit who boost the welding industrial

"Developing potential Award" from Shanghai Developing zone

Great contribution Award" from Essen Welding&Cutting fair

Recommended products from Chinese electrical equipments industrial association

ISO9001 certified enterprise

CCC certified enterprise

CE certified enterprise

The supplier of Beijing Olympics' welding equipments

The partner of the 60% of the national Hardware&Electrical Mechanical sales agent

Supplier of the consumables for the 80% of national well-known welding enterprise

The partner of the welding machineweldingwelding technologymodern welding

The member of the Chinese Welding Association

The member of the Chinese Welding machines Association

The member of the CHMECC organization

The member of the Shanghai Association of International trade service
