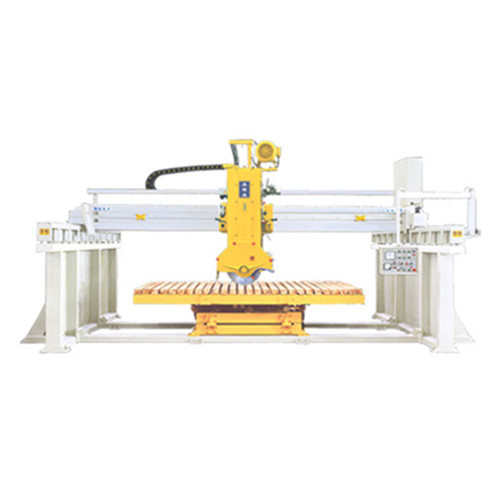

CNC Bridge Saw for Processing Floor Tiles/ Counter-Tops

CNC Bridge Saw for Processing Floor Tiles/ Counter-Tops
Price: US $ 18000-27000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Automatic Granite Bridge Cutter with Laser Guide

Product No.:HQ400-600-700v
1. ISO, CE Certification.
2. Good services and warranty.
3. High power and easily operation.

Working Video:     HQ400600   http://youtu.be/9HcXYJilfO0
                           HQ700      http://youtu.be/MciWoGjgob0




Basic info:
The bridge saw works by industiral computer with programs for automatic cut, and also capable of manual operation. All the operations are achieved from the touch screen panel.
It is able to cut 3.2 m length and 2 m width with laser guide sensor for cutting guide.
The table tilts up to 85° for easy load of big slabs and also turns 90/360 degree to change the cutting direction.


Features:
1. Long bridge structure for cutting big slab.
2. Titling table for easy load of big slab.
3. Automatic cut by program on PLC system.
4. Precise movements on X, Y, Z axis ensuring cutting accuracy +/-0.2mm
5. Electric parts from Japan for stability and long service time.
6. Main parts made of cast iron for heavy duty work and stable performance.

Details:



Packing:



Specification:
Model400600700
Blade SizeΦ300-Φ450 mmΦ300-Φ600 mmΦ300 - Φ700 mm
Blade TiltingN/AN/A0°- 45°
Table Size (L×W)3200×2000 mm  126"×79"
Table Rotation0°- 90° / 360°0°- 360°
Table Tilt0°- 85°
Max. Cut size3200×2000 mm  126"×79"
Spindle Motor15 Kw  20HP15 Kw  20HP18.5 Kw  25HP
Size (L×W×H)6×4.8×2.9 m6×4.8×3 m6×5.7×3.5 m
Weight6,300 Kg6,500 Kg7,500 Kg


Guarantee & after sale service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.



Company Introduction:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw,block cutter,polishing machine as well as equipments for other construction stones.The equipments have been successfully exported to world stone market in U.S.A.,Canada, Europe, Mid East, Egypt, India,etc.


Product of AGA:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.



Contact us:
Nora
Mobile/Whats.App:+86 182 5946 5572
Http://www.againdustry.com/ http:www.MarbleGraniteMachine.com
Prod Model: HQ400/600/700
Table Tilting: 0-85 Degree
Dimention (L*W*H): 6*5*3.5m
Max. Cut Thick: 230mm
Max Cut Size(L*W): 3200*2000
Blade Tilting: 45°
Payment: T/T
Type: CNC Cutting Machine
Usage: Marble
Application: Stone Industry
Source Voltage: 380V
Automation: Automatic
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in USA, Canada, Europe, MID east, Egypt, India, etc.

AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. Our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
