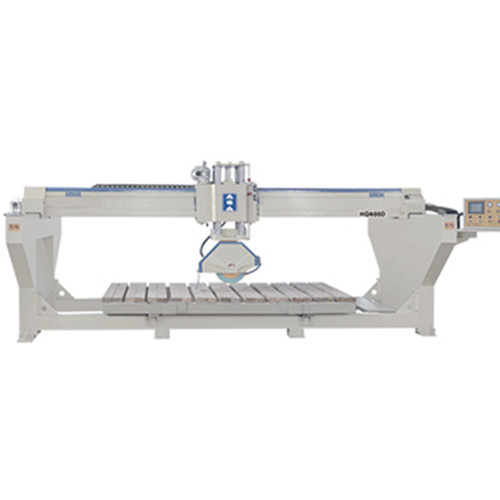

CNC Bridge Saw for Marble and Granite Bridge saw four pistons
Product No.:HQ600DBasic Info:Bridge saw cutting machine for marble granite stones.
Bridge saw of mono structure with Four Pistons.
A strong bridge saw cutting granite, marble and diversified stones.
It is able to cut 3200 mm length and 2000 mm width and 180 mm thick (126"×78"×7").
The laser guide and sensors provide high accuracy for the machining tolerance.
The blade travels along the bridge and is able to turn 90 degree automatically to make square cut.
The table tilts 0 - 85 degree hydraulic for easy load of the material.Specification:| Blade size | 400-600 mm 16"-24" |
| Cut length | 3200 mm 126" |
| Cut width | 2000 mm 78" |
| Cut thick | 180 mm 7" |
| Blade rotate | 0 - 90° |
| Table tilt | 0 - 85° |
| Spindle motor | 15 Kw 20 HP |
| Size (L×W×H) | 5.9×3.5×2.6 m |
| Weight | 6,200 Kg |
Pictures
Product DescriptionThis saw is computer control and able to program for up to 999 repeat cuts automatically and also capable of manual operation.
The mechanical body is made of very strong cast iron for stability and long lifetime.
All the functions are achieved from the control panel that make it very user friendly.

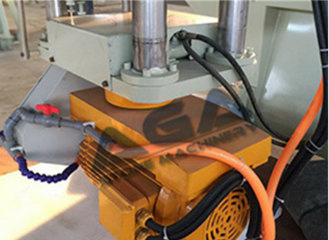

The machine head is with four strong pistons which brings very stable performance.
Wireless remote control is included for easy operation.
Blade tilts 45 degree for miter cuts is optional.
It is applicable on cutting and trimming slab, countertop, vanity, steps, etc.
The bridge saw works by industiral computer with programs for automatic cut, and also capable of manual operation. All the operations are achieved from the touch screen panel.Company Introduction:AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. the products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. the equipments have been successfully exported to world stone market in usa, canada, europe, mid east, egypt, india, etc.Products of AGA:Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.Contact us:Nora
