| Price: | US $ 2500-5000SET |
|---|---|
| Min Order: | 1SET |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
G4235 metal band sawing machine description:
the Features of G4235
the Functions of G4235
the Attentions
Our factory other model metal band sawing machine technical parameters:
| Item | G4028 | G4228 | G4235 |
| Control Model | Electronic Control | ||
| Max Process Standard (mm) | Round300 Square:300*280 | Round420 Square:700*420 | Round420 Square:500*420 |
| Process Speed(m/min) | 20-80 | 20-80 | 20-80 |
| Saw Band Specification (mm) | 5110*1.3*34 | 5320*1.3.34 | 34*1.3*4910 |
| Main Motor Output(kw) | 4.0 | 4.0 | 4.0 |
| Oil Pump Motor(kw) | 0.55 | 0.55 | 0.55 |
| Coolant Motor(kw) | 0.04 | 0.04 | 0.04 |
| Working Clamping Method | Hydraulic | Hydraulic | Hydraulic |
| Saw blade Tensioning From | Manual | Manual | Manual |
| Size of Output (mm) | 2700*1280*1650 | 2780*1280*1680 | 2600*1280*1650 |
| Weight (kg) | 1700 | 1800 | 1600 |
| MODEL# | G4220 | G4228 | G4235 | G4240 | G4250 |
| Cutting Capacity (mm) | 200-200×200 | 280-280×280 | 350-350×350 | 400-400×400 | 500-500X500 |
| Blade Speed (mm/min) | 27 \ 45 \ 69 | 27 \ 45 \ 69 | 27 \ 45 \ 69 | 5000×41×1.3 | 5800X41X13 |
| Blade size (mm) | 2800×27×0.9 | 3505×27×0.9 | 4115×34×1.1 | 27 \ 45 \ 69 | 27 \ 45 \ 69 |
| Motor main (kw) | 1.5 | 2.2 | 3 | 4 | 5.5 |
| Motor hydraulic (kw) | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 |
| Coolant pump (Mpa) | 0.04 | 0.04 | 0.04 | 0.125 | 0.125 |
| Workpiece clamping | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Dimension (mm) | 1400×900×1100 | 1860×1000×1400 | 2000×1000×1300 | 2500×1300×1600 | 2800X1300X2000 |
Our factory service:
1.Your inquiry will be replied in 24 hours
2.8 years Gold supplier continuously in this Alibaba. And there is more industry technology experience for
25 years with our manufactures
3.To offer free spare parts and service within 14 month of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Advantage
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder (Long Contract).
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional drilling rig and its parts manufacturer.
Q2: What does your company produce?
A: The main products of our company include rotary drilling rig, Kelly bar, drilling bucket, drilling auger, casing oscillator, desander and tricone bit, etc.
Q3: How about your delivery time?
A: Normally the delivery time is about 35 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C, Western Union or as customer requested
Q5: What is the MOQ?
A: Small trial order is acceptable, like 1 set, 2 sets…
Q6: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
How to contact with us:

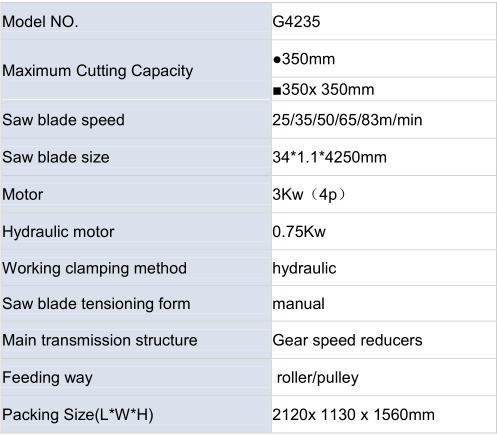

| Prod Model: | G4235 |
|---|---|
| Product Name: | CNC Automatic Type 220V 380V Electric Stainless St |
| Max Cutting Capacity: | 350*350mm(Square Materials);350mm(Round Materials) |
| Motor: | 3kw(4HP) |
| Saw Blade Speed: | 25/35/50/65/83m/Min |
| Saw Blade Size: | 34*1.1*4250mm |
| Working Clamping Method: | Hydraulic |
| Dimension: | 2120*1130*1560mm |
| Delivery Time: | Our Factory Have Machine in Stock |
| Warranty: | 3 Years |
| Certificate: | ISO,Ce |
| Type: | Band Sawing Machine |
| Controlling Mode: | CNC |
| Automatic Grade: | Automatic |
| Precision: | High Precision |
