X SERIES PRODUCT FEATURES:1. Aluminum magnesium alloy material.
. Lighter weight material than die-casting aluminum .
2. Light weight and ultra slim cabinet:
. 5.5kg only per cabinet / 68mm thickness.
3. 500x500 and 500x1000mm compatible.
. 500x1000mm cabinet is more quickly to make big screen, and 500x500mm cabinet is to meet customer's different requests.
4. Smart cabinet handle design.
. Easier to take and more convenient for installation.
5. Fast locking system.
.Fast installation to save labor cost and time.
PRODUCT SPECIFICATIONS: | NO. | Parameter | Specifications |
| 1 | Model | P3.91-SMD2020 indoor rental screen |
| 2 | Pixel Pitch(mm) | 3.91 |
| 3 | LED | SMD2020 |
| 4 | Screen Resolution | 65536 |
| 5 | Scan Method | 1/16 |
| 6 | Cabinet size(L*H*W) | 500X500X88mm / 500x1000x88mm Compatible |
| 7 | Cabinet(Kg) | 5.5KG / 11KG |
| 8 | Viewing angle | H:140° V:140° |
| 9 | Grey Scale | 14-16bit adjustable |
| 10 | Refresh rate(HZ) | ≥1920 |
| 11 | Module size(mm) | 250*250 |
| 12 | Brightness(nits) | ≥1500 |
| 13 | AVE. power consumption (W/sqm) | 200 |
| 14 | MAX. power consumption(W/sqm) | 600 |
| 15 | IP grade | IP31 |
| 16 | controller | Linsn/Nova |
| 17 | Working humidity | 10~90%RH |
| 18 | Input Voltage | AC 110V-220V +/-10% |
| 19 | Working temperature | -30ºC~60ºC |
| 20 | Compliance | CCC / CE / RoHS |

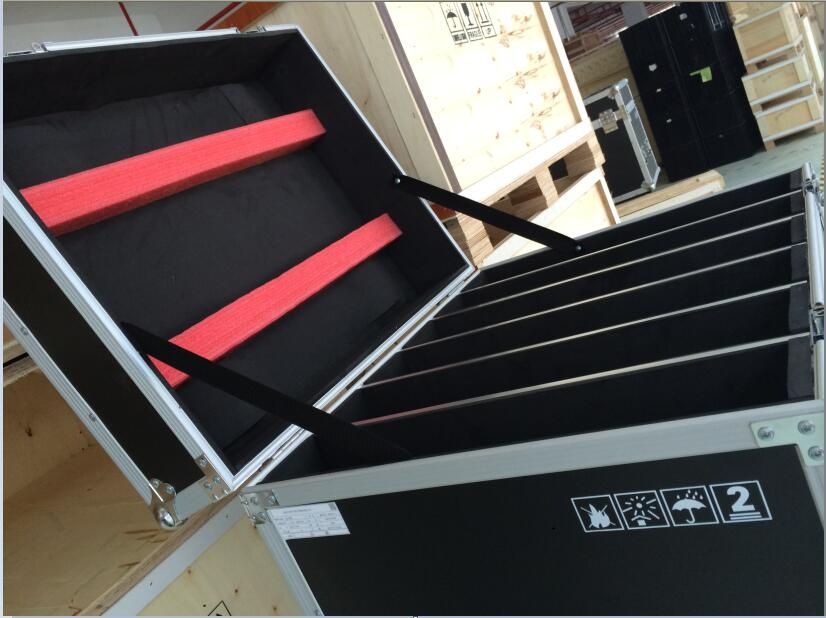

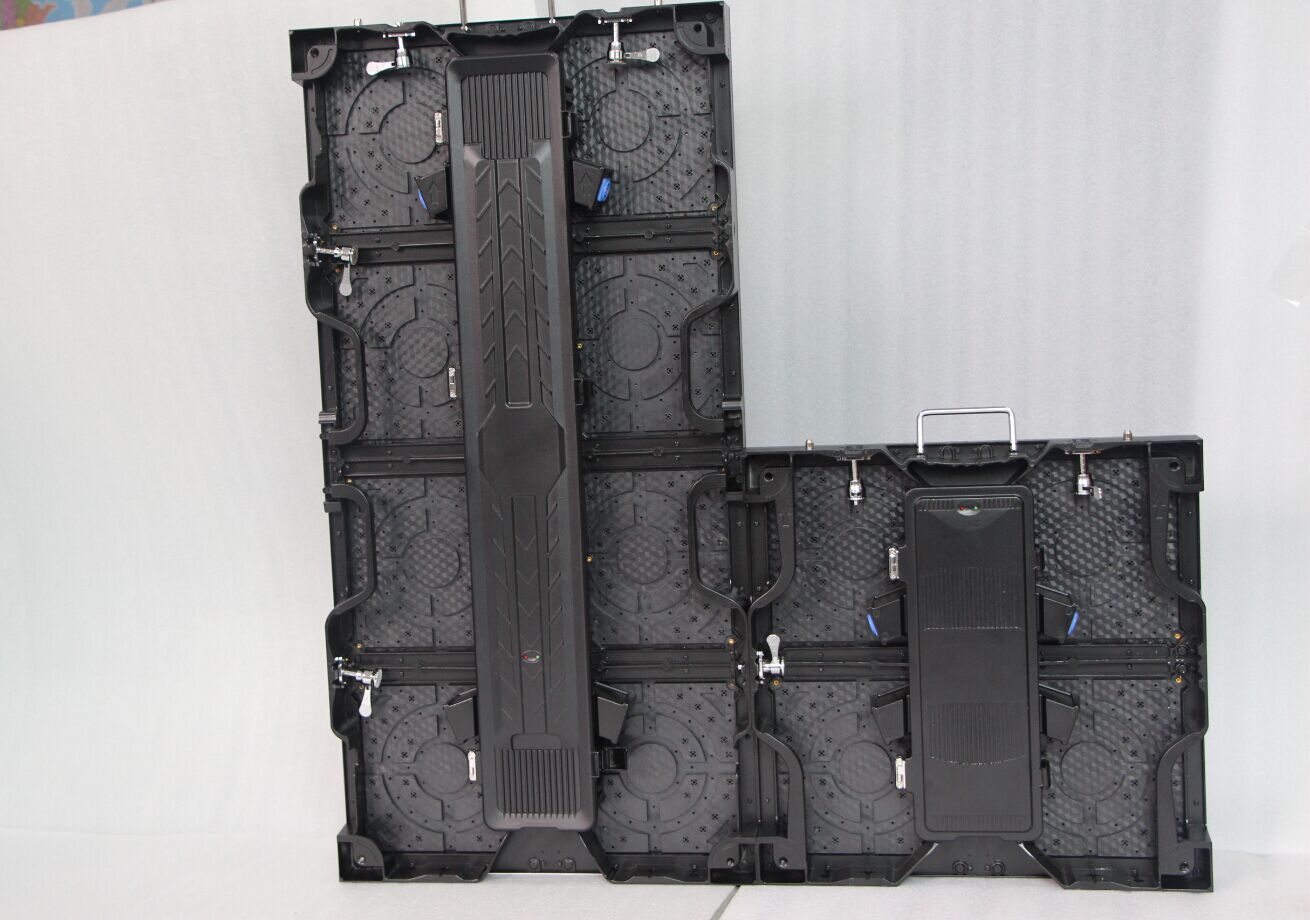

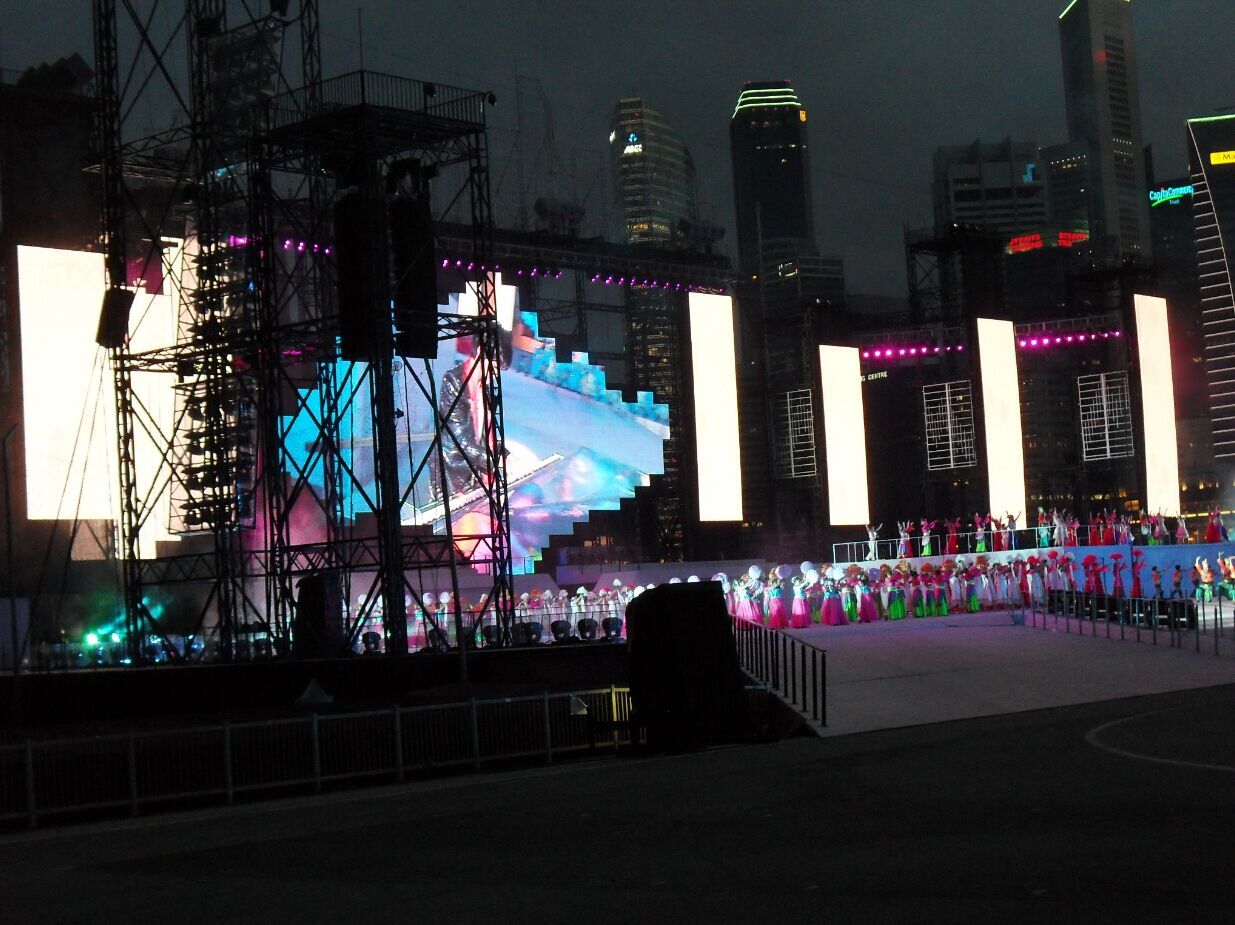

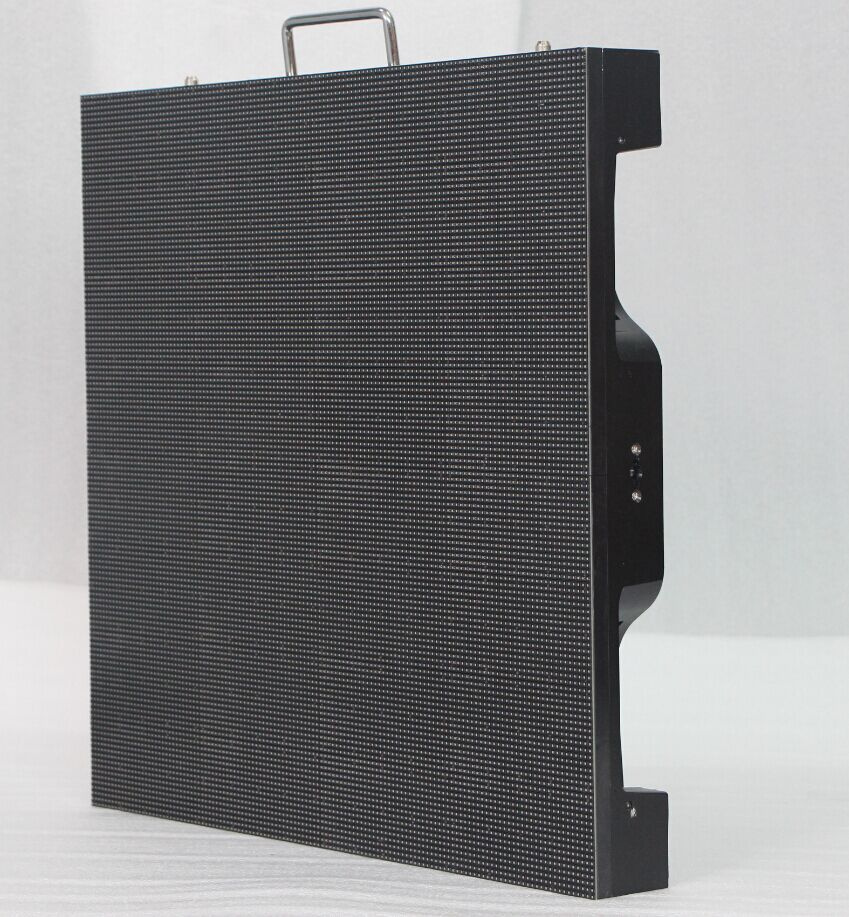

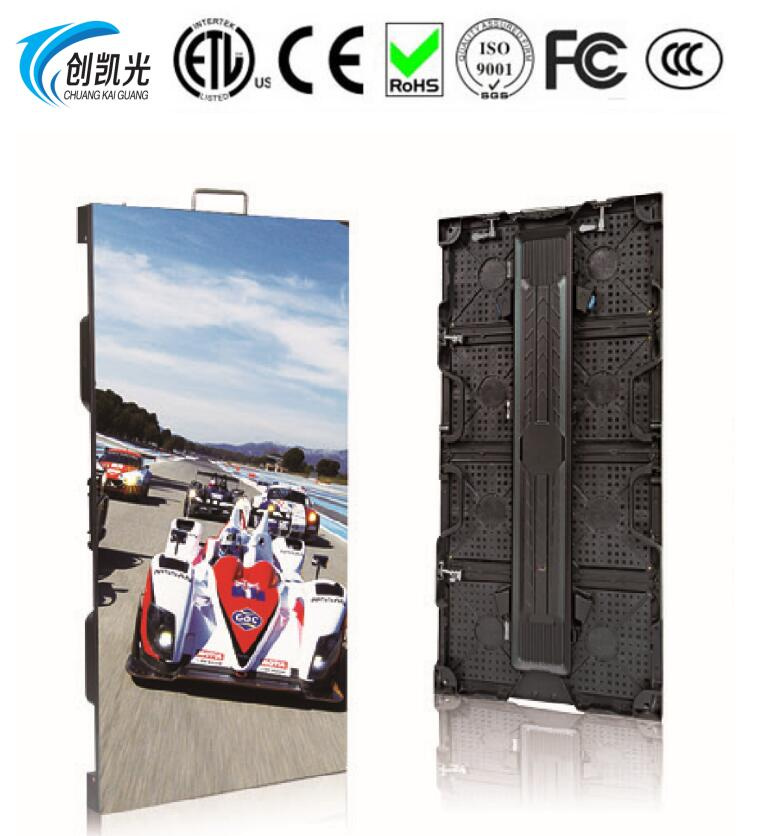

PRODUCT PHOTOS:
Shenzhen Chuangkaiguang Co., Ltd (known as CKGLED), a professional LED display factory who specializes in R&D / DESIGN / PRODUCTION / SALES, was Established in 2012 with a registered capital of more than $ 12 Million. CKGLED product ranks are indoor/outdoor rental LED displays, Ultra small pixel pitch LED displays, indoor/outdoor fixed installation LED displays, sports /stadium LED displays, traffic LED displays etc.
CKGLED is based in Shenzhen and since it's establishment until this day, CKGLED owns two production bases with over 400 employees, which ensures our capacity of 6000sqm every month. Equipped with a team of professional& experienced technicians and most advanced Siemens & Panasonic production machines, CKGLED aims to produce stable quality products with the highest cost-effectiveness for our global customers.
CKGLED's product quality management is strictly adhering to the ISO9001: 2008 certifications system and 7S management standards. Thanks to those efforts, our products have passed certificates of CE, RoHS, CCC, FCC, ETL etc. With an outstanding business performance and good social reputation, CKGLED's LED displays have been sold all over the world both in and out of China to America, Germany, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Brazil, Spain, Thailand, Dubai, India etc. More than 50different countries.
With our long-term development strategy plans, sticking to our "GRATITUDE, INTEGRITY, INNOVATION" enterprise management philosophy, CKGLED intend to become the biggest LED display international solution & service supplier by working & developing together with our customers.
Here we promise that every client, every order and every feedback will be valued by CKGLED. Let's hold our hands in hands, considering"Showing the beauty of the world" our mission, and creating a more colorful and brighter world.
