| Price: | US $ 9999-29900/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |

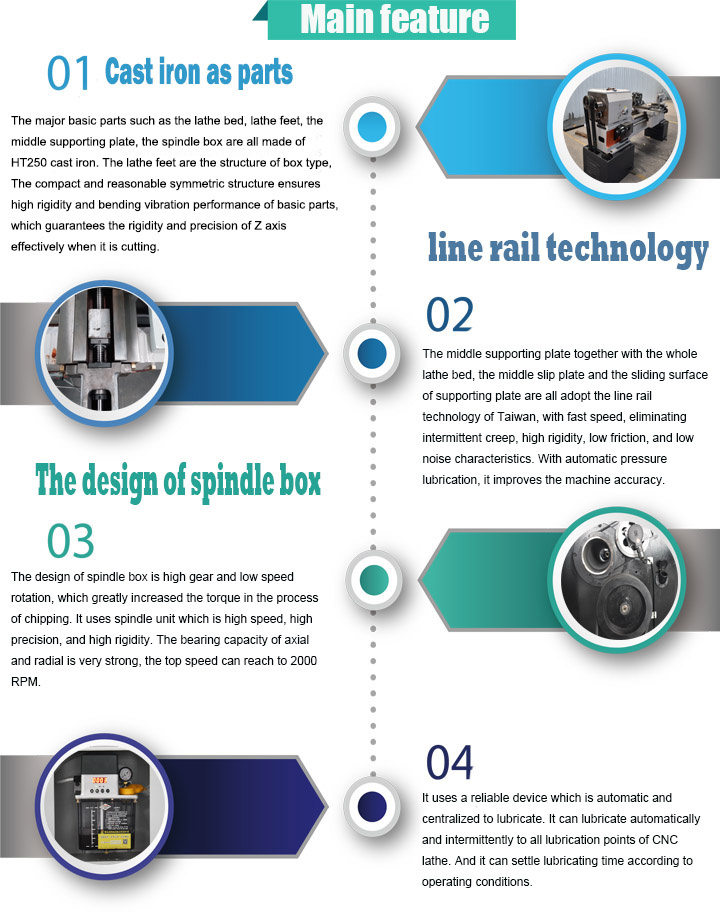

Main feature:
| ITEM | Parameter | unit | CKNC6163 | CKNC6163A |
| Processing Range | Max.swing over bed | mm | 630 | 630 |
| Max.swing over slide | mm | 350 | 350 | |
| Max. processing length | mm | 1500 | 1500/3000 | |
| Feed | Guideway Width of bed | mm | 550 | 550 |
| X axis travel | mm | 400 | 400 | |
| Z axis travel | mm | 1000,1500,2000,3000 | 1000,1500, 3000 | |
| X/Z axis lead screw | 4/7 | 4/7 | ||
| X/Z axis rapid speed | mm | 0.025/0.03 | 0.025/0.03 | |
| X/Z positioning precision | mm | 0.01/0.015 | 0.01/0.015 | |
| X/Z repositioning precision | IT6-IT7 | IT7 | ||
| Processing precision | 0.01 | 0.01 | ||
| Surface roughness | Ra1.6 | Ra1.6 | ||
| Spindle | Spindle speed range | Three steps frequency, 40~125,110~350,290~950 | Hydraulic shift 4 steps, 17-1000 | |
| Spindle head type | C11 | D11 | ||
| Dia. Of spindle thru- hole | mm | 105 | 105 | |
| Spindle hole tapper | mm | 1:20 (metric system) 120 | 1:20 (metric system) 120 | |
| chunk | mm | 320(12") optional 400, 500 | 320(12") optional 400, 500 | |
| Spindle Motor power | kw | 11 | 11 | |
| Tool Holder | Tool holder type | Electric 4 stations | Electric 4 stations | |
| Turning tool size | mm | 30*30 | 30*30 | |
| Tailstock | Tailstock sleeve travel | mm | 250 | 250 |
| Tailstock sleeve dia. | mm | 100 | 100 | |
| Tailstock sleeve taper | mm | Morse5 | Morse5 | |
| controller | SIEMENS(standard),FANUC, KND, GSK (optional) | SIEMENS(standard),FANUC, KND, GSK (optional) | ||
| Dimesion | N.W | kg | 3600 | 3900 |
| Dimesion | mm | 3700*1500*1600 | 3700*1600*1700 |
Our Sales Service
1.24 hours on Internet and Telephone, free instruction and problem solving.
2. Free training how to use.
3. User-friendly English manual or operating video for machine using and maintaining.
4. on-the-spot training and installation can be met if required.
5. We always deliver machinery on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers' requirement.

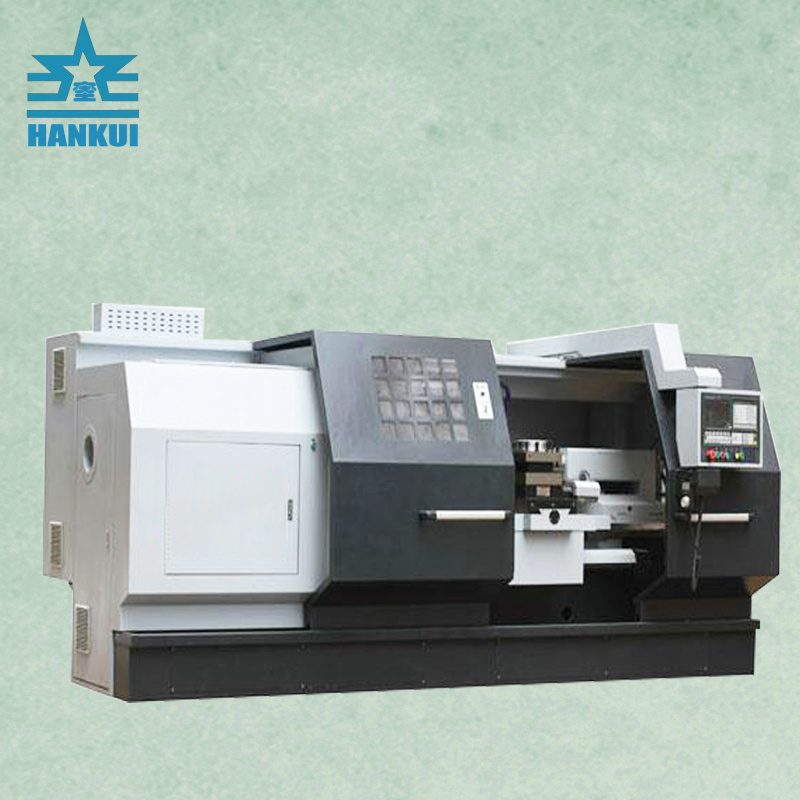

| Prod Model: | CK6163 |
|---|---|
| Max.Swing Over Bed: | 630mm |
| Max.Swing Over Slide: | 350mm |
| Max. Processing Length: | 1500mm |
| Guideway Width Of Bed: | 550mm |
| X Axis Travel: | 400mm |
| Z Axis Travel: | 1000,1500,2000,3000mm |
| X/Z Axis Lead Screw: | 4/7m/Min |
| X/Z Axis Rapid Speed: | 0.025/0.03mm |
| X/Z Positioning Precision: | 0.01/0.015mm |
| X/Z Repositioning Precision: | It6-It7 |
| Type: | Horizontal Lathe |
| Processing Accessory: | Chuck CNC Lathe |
| Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Electric |
| Controlling Mode: | CNC |
| Automatic Grade: | Automatic |
| Setting Mode: | Floor-type |
| Precision: | High Precision |
