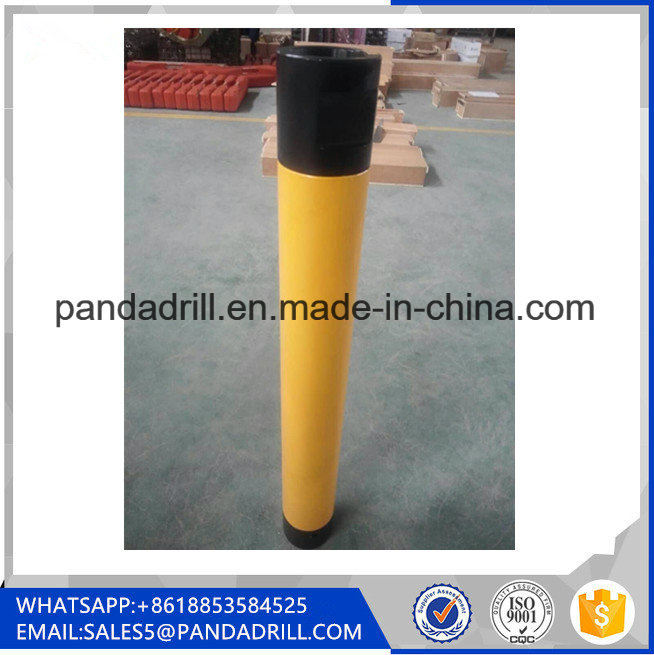

CIR170A Low Pressure DTH Hammer

CIR170A Low Pressure DTH Hammer
Price: US $ 100-1000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Product Description:

Panda CIR series DTH Hammer, a kind of valve equipped low air pressure hammer with a single piston, a plate valve and a central exhaust structure.

The compressed air is adopted as the driving force. To get a better performance and prevent dust pollution, some high-pressure water may be added into the air for wet rock drilling.

Advantage:

1.The strong energy of single impact and the low energy consumption in rock crushing.

2.Smooth performance and long service life of CIR,HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

3.A good performance in central air exhaust and cutting discharge, which reduces the repeated crushing of rock.

4.Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.


Specification:
TYPELENGTH(MM)TOP SUB THREADOUT DIA(MM)WEIGHT(KG)BIT DIA(MM)WORKING PRESSURE(BAR)AIR CONSUMPTION(M3/MIN)
CIR50628F32*8 PIN445504~104~8
CIR65745F42*10 PIN6113654~106~10
CIR76811F48*10 PIN6613.5764~106~10
CIR90855F48*10 PIN802290~1204~128~12
CIR90A840F48*10 PIN802290~1204~128~12
CIR110A871API 2 3/8 REG BOX9833110~1506~128~12
CIR130A890API 2 3/8 REG BOX11248.5130~1756~128~12
CIR150A904F70*10 PIN13670150~2006~1210~16
CIR170A1030F100*28 PIN15696170~2508~1412~18
CIR200A1058F100*28 PIN182130200~2508~1416~20

Details:





FAQ:

Q1: Can I have a sample for testing?

A:Samples are still to be paid but discounted price can be provided.

Q2: Do you have the inspection procedures?

A:100% strict inspection and testing for every order before packing.

Q3: How can i get the after sale services?

A:Free replacement will provide once the problems casued by our product quality.

Q4: Can I have a visit to your factory before the order?



A: Sure, welcome, here is our address: Yantai, Shandong.


CONTACT:



Prod Model: CIR170A
Diameter: 44-182mm
Series: CIR75,CIR90,CIR110,CIR130,CIR150,CIR170
Material: Tungsten Carbide, High Manganese Steel
Processing Type: Forging
Pressure: High Pressure
Transfer: Air/Sea/Express
Color: Request
Advantage: High Performance
Product Name: Down The Hole (DTH) Hammer
Inserts Design: Spherical; Ballistic; Parabolic
Certification: API
Condition: New
Type: Drill Tools
Application: Well Drilling,Coal Mining,Quarry Drilling
