Home Toolbuy Products China Top Drill Bit Manufacture DTH Hammer 5 Inch Bit

China Top Drill Bit Manufacture DTH Hammer 5 Inch Bit

China Top Drill Bit Manufacture DTH Hammer 5 Inch Bit
Price: US $ 580-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
OVERVIEW

Material: tungsten carbide

Color: blue, black, golden, red

Model: china top drill bit manufacture dth hammer 5 inch bit

Application: mining industry, energy, metallurgy, geology, coal, water conservancy, chemical industry and road construction.

DOWN THE HOLE DTH HAMMER SPECIFICATION:

Specification of dth hammer button bits:Diameter: (mm)
1-2 inch low pressure DTH bits64/70/76/80/82/90
3 inch high Air pressure DHT bits85 / 90 / 95 / 100 / 105
4 inch high Air pressure DHT bits105 / 110 / 115 / 120 / 127
5 inch high Air pressure DHT bits133 / 140 / 146 / 152 / 165
6 inch high Air pressure DHT bits152 / 165 / 178 / 190 / 203
8 inch high Air pressure DHT bits195 / 203 / 216 / 254 / 305
10, 12 inch high Air pressure DTH bits254/305/318/330/356/381


DOWN THE HOLE 5'' DTH DRILL BIT FOR 4 INCH DTH HAMMER SPECIFICATION:


Drill BitBit Diam.No. Air holesGauge ButtonsFront buttonsWeight kgPart-No.

HD25

7626xφ135xφ103.6HD25-76
8226xφ144xφ114.0HD25-82
9028xφ125xφ124.2HD25-90




COP32

8526xφ134xφ124.2COP32-85
9026xφ144xφ124.5COP32-90
9526xφ144xφ134.7COP32-95
10026xφ145xφ125.0COP32-100
10526xφ145xφ135.3COP32-105




HD35(IR3.5, COP34)

8526xφ134xφ124.2HD35-85
9026xφ144xφ124.5HD35-90
9526xφ144xφ134.8HD35-95
10026xφ145xφ125.0HD35-100
10526xφ145xφ135.5HD35-105




HD45(DHD340A, COP44)


10526xφ145xφ138.5HD45-105
11027xφ146xφ138.8HD45-110
11527xφ146xφ139.0HD45-115
12028xφ147xφ139.8HD45-120
12728xφ147xφ1311.0HD45-127


HD55(DHD350, COP54)



13527xφ186xφ1415.0HD55-135
14027xφ187xφ1416.0HD55-140
14627xφ187xφ1417.0HD55-146
15228xφ188xφ1417.5HD55-152
16528xφ188xφ1618.5HD55-165




HD65(DHD360, COP64)


15228xφ187xφ1622.0HD65-152
16528xφ188xφ1626.0HD65-165
17128xφ188xφ1627.0HD65-171
19039xφ189xφ1628.5HD65-190
20339xφ1811xφ1629.5HD65-203





HD85(DHD380, COP84)


203210xφ1810xφ1640.0HD85-203
216210xφ1812xφ1649.0HD85-216
241212xφ1818xφ1664.0HD85-241
254312xφ1821xφ1671.0HD85-254
305412xφ1829xφ1695.0HD85-305






DELIVERY
- We can delivery in 2-3 days if we have products in stock, special design and customize products need 20-30 days.
- We can delivery according to customers' requirement, by sea, by air or express. We have long cooperation with DHL, TNT, EMS, UPS, FEDEX.

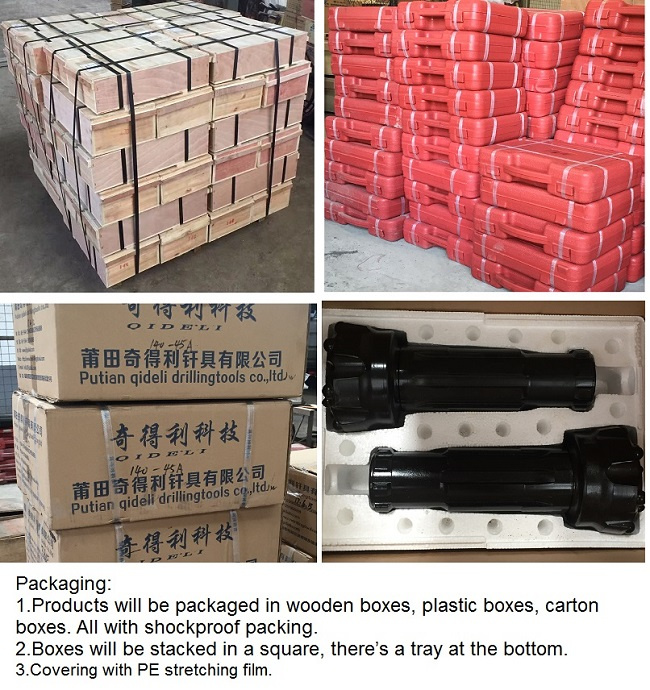

- Standard export packing. Wooden boxes, plastic boxes, carton packing, all with anti-collision foam.





OUR MAIN PRODUCTS


OEM SERVICE

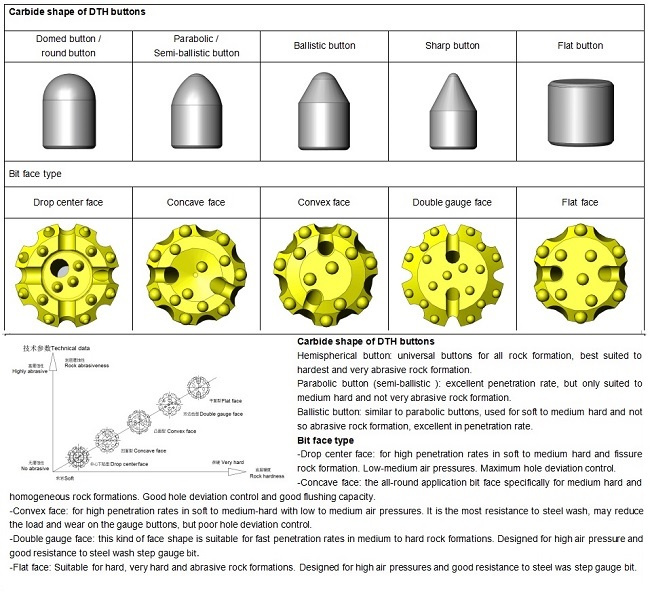

CARBIDE BUTTON & FACE SELECTION




24 Hours service hotline:
Engineering equipment Dept.
Sophie Cheng
Cell: +86 18760510520








Prod Model: hd55, cop54
Formation: Soft-Hard Formation
Advantage: Ore Mining, Coal Mining, Well Drilling
Application: Rock Drilling, Core Mining, Well Drilling
Usage: Small Hole Drilling, Gas Deep Hole Drilling, Boreh
Color: Blue, Golden, Black, Red, Customize
Name: Chinchina Topa Made DTH Hammer Bit HD55A Drill Bit
Putian Qideli drilling tools Company was founded in 2010, is specialized in the production and operation of mining drilling tools, research and development-oriented enterprises. 20 years, the production of chisel-bits, cross-bits, button bits, thread bits, PDC bits high and low air pressure DTH bits, DTH hammer, drill rods, etc, are widely used in energy, metallurgy, geology, coal, water conservancy, chemical industry and the mining, road construction, has been unanimously endorsed by the majority of users. Basing on our complete product and excellent quality, We have a certain domestic markets, also export to Russia, Japan, Southeast Asia and other regions alsowhile.

Where there is a will, there is a way. Putian Qideli drilling Tools Company diligently and wholeheartedly committed to drilling tools for mining research and development, with so many years learning of drilling tools for mining, and had attracted many of the domestic first-class drilling technology experts and experienced engineers to work for company, constant Close to the market, in-depth customer technology-LED, market-oriented, the market potential demand for the direction of development, actively planning an enterprise development strategy, focusing on product innovation and grasp the credit markets and technology to enhance the credibility of business products and services, constantly to enhance the core competitiveness of enterprises, in order to enhance the comprehensive advantages of products in the market.

"Continues to provide you with better products", which is the macro Dag keep business purposes, we sill make constant efforts to adhere to yesterday's achievements as a starting point, whole-heartedly to create first-class products and good services for all customers, in order to create the endless space and wealth for all customers.

Putian Qideli drilling tools company is authorizes the registration by the National Related Department the enterprise. Depends on a abundant fund strength, reasonable prices, excellent service, we establish long-term cooperative relationship with lots of enterprises. We are sincerely welcome your visit, investigate, and do business.

In March this year my company has registered a trading company in xiamen China: Xiamen Atlas trading Co., Ltd., this company will be a full range of services in foreign trading. The full import and export qualification for foreign customers with the convenience about import and export of products and services.
