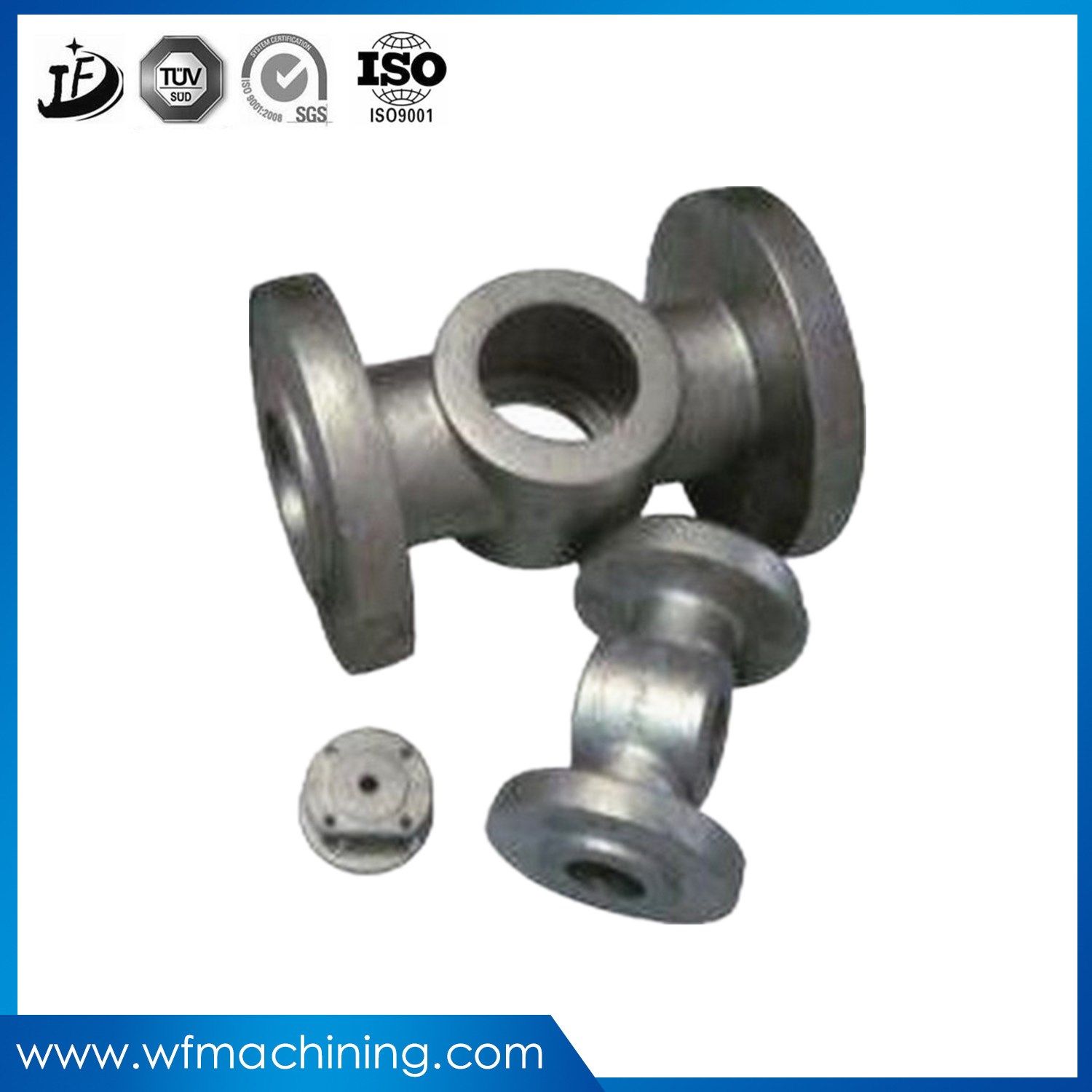

China Sand Iron Casting Control Valve with Home Foundry Process

China Sand Iron Casting Control Valve with Home Foundry Process
Price: US $ 5-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
China Sand Iron Casting Control Valve with Home Foundry Process


valve,casting valve ,sand casting valve,valve supplier
We can offer you investment casting parts, railway casting parts, railway parts, excavator machinery parts, mining machinery parts, engineering machinery, agricultural machinery parts, sand casting, bucket tooth, auto parts, stamping & forging, and valve parts. We are capability in manufacture non-standard metal machining.

1. Investment casting sand casting/ lost wax casting/precision casting/gravity casting/stainless steel casting/carbon steel casting/ die casting/cookware handle casting/pan handle casting/home hardware casting;
2. Materials: Carbon steel, stainless steel, alloy steel and duplex steel, wcc, wcb, lcc, color metal etc;
3. Surface treatment: Heat treatment, machining, polishing, anodizing, hard anodizing, galvanized, enp, chrome plating, powder coating and painting;
4. Software for specification drawings: Pdf, auto CAD, solid work, proe;
5. Main production equipments: Wax injection, CNC-machine, heat treatment furnace;
6. Quality assurance in accordance with ISO9001: 2008, strict material inspection and exact dimension control, 100% quality control.
7. OEM order is welcome;
8. The parts can be made completely based on your specifications such as drawing, design, sample etc.
9. Export Markets: Australia Investment Casting / Precision Casting, America, United States. U. S. A. Investment Casting / Precision Casting, Canada Investment Casting / Precision Casting; U. K. England, Britain Investment Casting / Precision Casting, Germany




China Sand Iron Casting Control Valve with Home Foundry Process
1.Ductile Iron Castings:
molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0. 5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25
,EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949

feature- TS 16949 certified
- 3 sets automatic moulding lines, flask size from 450x400 till 850x700
- 15 units of induction furnaces ranges from 1 ton/hour till 5 ton/hour
- 15 units CNC machining cernters for further machining process
- Spectrum + metalloscope
annual casting capacity40,000tons
unit weight of castingfrom 0.1kg/pc till 120kg/pc
material spec.various grade nodular cast iron and grey cast iron
we are currently casting- Grey cast iron types: EN-GJL-150, GJL-200, GJL-250, GJL-300, GJL-350, GG15, GG20, GG23, GG25, GG30
- Nodular/Ductile cast iron types: EN-GJS-400-18-LT, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2, GGG40, GGG40.3, GGG50, GGG60, GGG70, GGG70, GGG80, GGG90
-Austempered ductile iron: ADI 800-10, ADI 900-8, ADI1050-6 , ADI1200-3, ADI 1400-1

Item China Sand Iron Casting Control Valve with Home Foundry Process

MaterialTechnical Process
1Ductile iron
castings
ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2;
Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting
2Grey iron
castings
ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350;
Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting
3Carbon steel
castings
ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205, 450-240, 485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446), GS-52(1.0552), GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370
Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Lost foam cast
Shell-core cast
Electric-furnace smelting
4Stainless steel
castings
ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001)
G-X20Cr14(1.4027), 1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M
Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)

Electric-furnace smelting
5Alloy steel
castings
DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4
Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting
feature- TS 16949 certified
- 3 sets automatic moulding lines, flask size from 450x400 till 850x700
- 15 units of induction furnaces ranges from 1 ton/hour till 5 ton/hour
- 15 units CNC machining cernters for further machining process
- Spectrum + metalloscope
annual casting capacity40,000tons
unit weight of castingfrom 0.1kg/pc till 120kg/pc
material spec.various grade nodular cast iron and grey cast iron
we are currently casting- Grey cast iron types: EN-GJL-150, GJL-200, GJL-250, GJL-300, GJL-350, GG15, GG20, GG23, GG25, GG30
- Nodular/Ductile cast iron types: EN-GJS-400-18-LT, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2, GGG40, GGG40.3, GGG50, GGG60, GGG70, GGG70, GGG80, GGG90
-Austempered ductile iron: ADI 800-10, ADI 900-8, ADI1050-6 , ADI1200-3, ADI 1400-1
China Sand Iron Casting Control Valve with Home Foundry Process

Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized valve parts?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.


Quality First, Price Best, Service Foremost!

We assure you of ourbest services at all times!
Prod Model: WF-JF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item: China Sand Iron Casting Control Valve
Raw Material: Carbon Steel, Stainless Steel
Technics: Sand Casting+CNC Machining
Model Number: OEM Pump Impeller
Brand Name: Shengao, OEM
Toerance: +-0.5mm
Testing: Magnetic, Particle Inspector CMM
Weight: 5-90kgs
Performance: Explosion-Proof Pumps
Shipping Port: Qingdao
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transportation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers.

We mainly undertake the forging parts, stamping parts, casting parts, machining parts and other machinery spare parts. The main products we could do are gears and gear boxes, manhole covers, bucket teeth, flywheels, stove fireplace, cookwares, pump and valve spares, engine spares...Our products have been exported to the United States, Denmark, Italy, Russia, Australia etc for more than 15 years.

The material we can adopt is included various kinds of cast steel and cast iron, heat-resistant steel, carbon steel, alloy steel, alloys and other customized materials. We have strong processing capacity, we own MAZAK, HSS, YOUJI and other brands machining centers from the abroad, we also have lathes, NC lathes, NC milling, boring, grinding, drilling, broaching and wire electrode cutting machines, which are used to ensure we can fulfill different machining requirements from our customers.

We can produce according to the drawings of customers. Our Import and Export Department have many years experiences of foreign trading and our products are mainly exported to the United States, Denmark, Italy, Russia, Australia, Iran, Pakistan, South Africa etc.

Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with domestic and overseas, new and old customers and establish eternal friendship to create a bright future. Sincerely welcome your drawings and samples or any other kinds of designs, our team will try the best to serve you and satisfy all the requirements you have.

Why choose us to produce your parts?

1) Experienced staffs will reply you in 24 hours.

2) Welcome OEM, ODM and Smaller quantity.

3) Exclusive and unique solution can be provided to you.

4) Special discount and protection of sales area.

5) Random quality inspection during production.

6) Delivery on time.

7) At a competitive price from our own factory.
