China Professional Manufacture Steel Material Grid Coupling

China Professional Manufacture Steel Material Grid Coupling
Price: US $ 95-100/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal



Tanso is pleased to be able to provide quality grid couplings covering a large number of industry standard sizes and lengths. The Tanso grid style coupling has proven itself in performance and popularity over a wide range of applications.

Tanso's grid style coupling design has demonstrated its ability to dampen vibration by as much as 30% and can cushion shock loads that could cause damage to both the driving and driven equipment. The tapered grid spring design absorbs impact energy by spreading the energy out over the full length of the grid spring thus reducing the magnitude of the torque spikes.

The Tanso design uses a curved hub tooth profile which creates a progressive contact with the flexible grid spring as the application torque increases. This feature provides a more effective and efficient transmission of power in properly aligned couplings.

Tanso's versatile design of industry standard hubs and grid springs for both horizontal and vertical cover styles allow Tanso couplings to be interchangeable with other industry standard grid couplings and components.

Proper grid coupling installation and maintenance can add to a longer coupling life. Grid spring replacement is simple and can be performed at a fraction of the cost and time of a complete coupling.

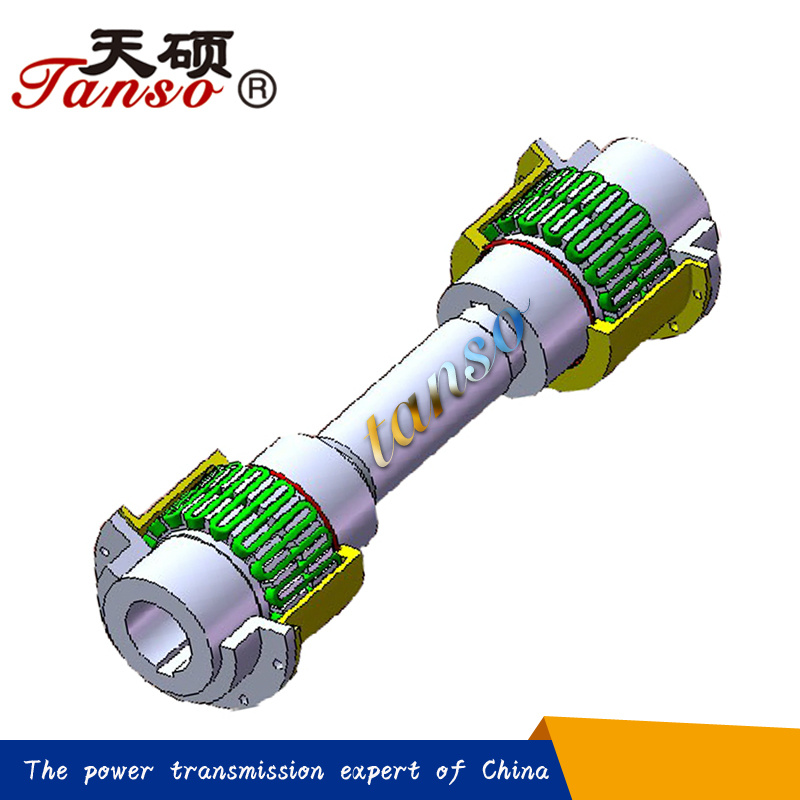

JSJ spacer grid coupling:

Double-piloted design for connecting equipment where the distance between shafts is too large for a spacer-type coupling.

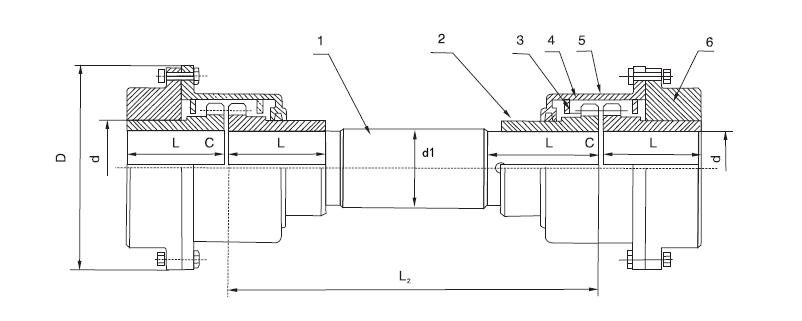

TypeNominal torqueBore diameterd1LL2DCMass
Tn/d(one side)
N·m m
  /kg
JSJ114022,24284816211633.9
25,28
30,32,35
JSJ240032,35,3835601951588.85
40,42,45,48,50
JSJ390048,50,55,56507621318315.6
60,63,65







Prod Model: JSJ
Cangzhou Tanso Couplings Co., Ltd. (the former Botou Tianshuo Couplings Factory) specializes in the research and production of expansion coupling sleeve, mechanical drives and mechanical seals. Thanks to our years of experience in research and development of couplings, and favorable conditions and dominant advantages in research and development of high-precision products and mass production, the company can meet customers' demands. The company has passed the certification of ISO9001-2000 Quality Management System, and realized CAD computer aided design and information management, integrating research, development and manufacturing. The company boasts its rich manufacturing experience, strong technical force, complete testing meanings, complete range of specifications and stable and reliable quality. Since its establishment, the company has sold its products throughout China, winning wide appreciation from customers. Based on credit principle, the company has established long-term cooperative relationships with a number of customers. At present, the company, by further strengthening staff training, improving technology level and injecting high-tech contents into products, strives to offer products of top quality and preferential prices.

Our main products include rubber tire couplings, roller chain couplings, safety couplings, diaphragm couplings, drum gear couplings, star-shaped flexible coupling, rubber-cushioned sleeve pin coupling, oldham coupling, plum-shaped flexible coupling, roller chain couplings, flexible pin coupling, flexible pin gear coupling, and so on. In order to meet customers' demands, we, with rich experience, also undertake the plotting and manufacturing of other types of couplings. Under the tenet of "Develop by Technology, Survive by Quality, Benefit by Customers", the company makes all efforts to provide customers with quality products and satisfactory service through advanced production management and strict quality requirements".
