China New Electric Vertical Drilling Machine Price (Z5030)

China New Electric Vertical Drilling Machine Price (Z5030)
Price: US $ 1300-3200/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

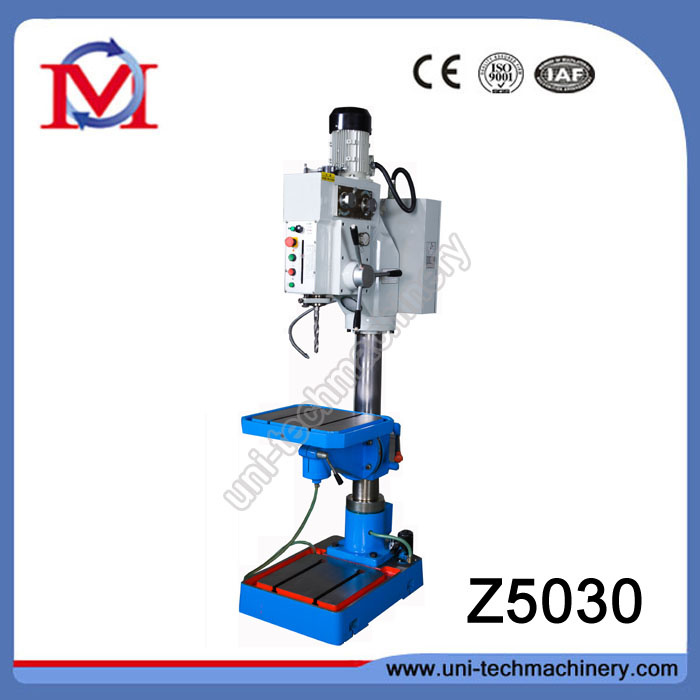

China new electric vertical drilling machine price (Z5030)

This China new electric vertical drilling machine price (Z5030) is used for drilling, counter boring, reaming, tapping and spot facing, with advantages of large drilling capacity and wide scope of processing parts, therefore not only used on the products workshop but also repairing workshop .

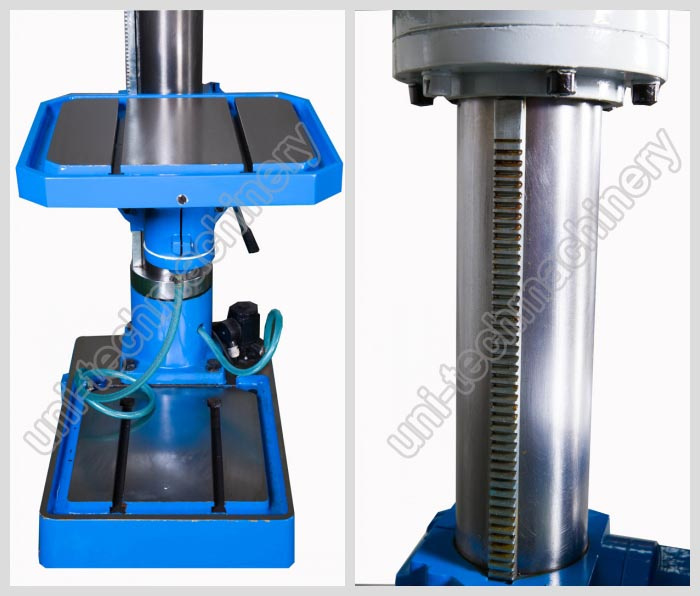

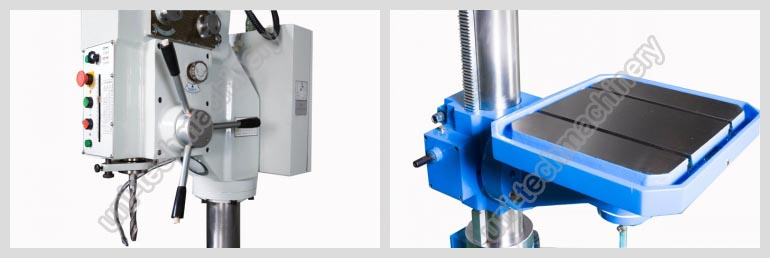

Drilling machine worktable support can up and down along the column, also can be rotated ±180º around the column. The table can be rotated ±180º in the table support, also rotated ±45º horizontally with support base .So the operation of this drilling machine is portable, flexible and reliable.


Main Features:
1.New-designed, pleasing appearance, compact construction,  wide speed change range, easy to operate.
2.Easy operation with its unique workable, and both motor-drive and manual-operated lifting device.
3.The working table can be rotated 180° and can be tited +45° and -45° also,  it is reliable and easy job can be done.
4.Equipped with coolant system and tapping mechanism.
5.Equipped with short cut and overload protection, its electric system with powerful spindle motor,  it designed according to IEC standard.
6.Characteristic protection device, small batch and mass production for drilling, counter boring, reaming, tapping, spot facing, etc.

Main specification
ModelZ5030
Max. drilling capacity(mm)30
Max. taping capacity(mm)M20
Distance from spindle axis to of column(mm)320
Max. distance from spindle nose to  work table surface(mm)550
Max. distance from spindle nose to base(mm)1100
Max. spindle travel(mm)135
Swivel of table and table reat±45°
Spindle bore taper(Morse)MT3
Spindle steps12
Spindle speed(r/min)65-2600
Spindle feed steps3
Spindle feed range(mm/r)0.1,0.2,0.3
Column diameter120
Dimension of worktable(mm)500x440
Dimension of base (mm)400x390
Power of Main motor(kw)0.85/1.1
Overall height(mm)2050
Packing size(cm)108x62x215
N.W./G.W.(kg)495/450

Standard Accessories:
1.Drill chuck
2.Arbor
3.Taper sleeve
4.Drift
5.Eyelet bolts
6.Wrench
Optional Accessories:
1.Multi-spindles
2.Angle vice
3.Safety guard

Standard Accessories:
1.Drill chuck
2.Arbor
3.Taper sleeve
4.Drift
5.Eyelet bolts
6.Wrench
Optional Accessories:
1.Multi-spindles
2.Angle vice
3.Safety guard




Z5030 China new electric vertical drilling machine price for metal
Packing size: 1080x620x2150mm
Package: export standard plyw/case

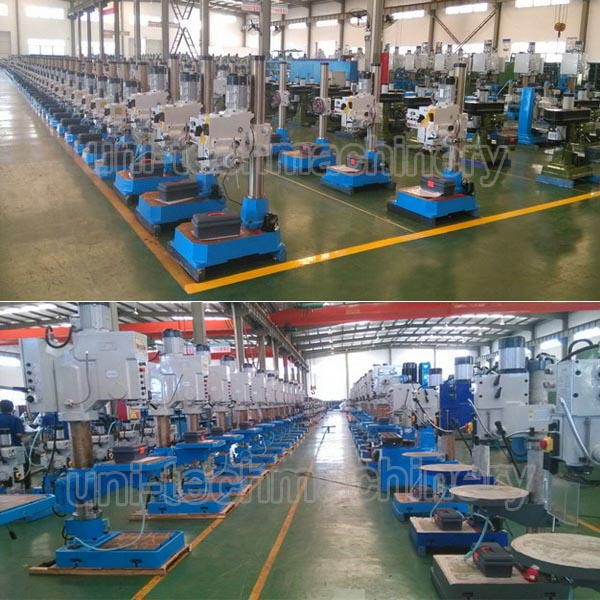

Tengzhou Uni-tech machinery Co. Ltd , have more than 20 years export experiences, company grew up very fast and became a successful company in the machinery industry, using numerous machine tools.  Specially in the range of supplying different vertical drilling machine with CE certificate. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.

After-sales service:
We guarantee that product could be used with free of defect in one year from the date of purchase. During our guarantee period, all customers enjoy free service of repairing of changing any defective parts. This guarantee does not apply to those defects directly or indirectly due to improperly use and repairs or maintenance.

We also would like to let you know our warranty about our Z5030 China new electric vertical drilling machine price for metal:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
   1) Our quality guarantee time is 12 months since the machine on board
   2) During this period, if the machine break down owing our machine itself quality problem,  we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
  3) If the break down is caused by the mis operation,  we of course will supply you the spare parts, but we have to charge you the costs prices.

Welcome come to contact us to get more details!
Canthy Guo
Tengzhou Uni-tech Co. Ltd
Tel:0632-5810216

Ph: +008618266249928


Prod Model: Z5030
Name: China New Electric Vertical Drilling Machine Price
Max. Drilling Capacity(mm): 30mm
Max. Taping Capacity(mm): M20
Distance From Spindle Axis To Of Column: 320mm
Max. Spindle Travel: 135mm
Swivel Of Table And Table Reat: 45 Degree
Spindle Bore Taper: Mt3
Spindle Steps: 12 Steps
Spindle Speed(R/Min): 65-2600
Column Diameter: 140mm
Structure: Vertical Drilling Machine
Layout: Vertical
Controlling Mode: Artificial
Automatic Grade: Automatic
Precision: High Precision
Tengzhou Uni-tech machinery Co. Ltd, specially in the range of supplying different machines, machine tools, machinery accessories. With long time exporting machines experience, we can not only supplying our customers stable quality products, but also more excellent service.

Supplying source:

1. As an machinery supplier for many years, we are aware whose quality is acceptable, whose quality is poor, we always can meet our customers requests, precisely. With the long time and deep relationship with the factory, as exporter, we can get better prices, which play a key role in the market competition...Ours development coming from customers growing.

2. We also follow the products developing, always can recommend the newly developed products to our customer to meet the changing market.

3. With the experience, we also can meet customers products improvements, for

Some place modifying, in order to meet exactly customer requests.

Quality Control

We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.

After-sales service

We guarantee that all products could be used with free of defect in one year from the date of purchase. During our guarantee period, all customers enjoy free service of repairing of changing any defective parts. This guarantee does not apply to those defects directly or indirectly due to improperly use and repairs or maintenance.

Customer-service

We can provide customers the fast after-sale service warranty. In order to meet this point,

What your requests, including the spare parts posting requests, quality modifying, price inquiry, delivery time checking, we will try our best to feed back within 24 hours.

CUSTOMER PROFITS IS ALWAYS THE FIRST, AS OWING TO CUSTOMER NEEDING, EXPECTING, INFLUENCE, UNIQUE, WE MUST BE CONSIDERATE, FASTER, FLEXIBLE, THEN WE CAN HAVE BRIGHT FUTURE.

We are engaged in manufacturing and supplying all kinds of metal workings machines, machine tools and accessories, measuring tools… … . With rich experience in exporting and manufacturing, we are always pay more attention to the Fast inquiry replying, Strict quality control, On time delivery time, Quick after-sales-service, also for the best price for our customers, we also have more certificate such as ISO, CE. Hope to take this chance to enter into direct business with you.

*manufacturing and supplying all kinds drlling and milling machine, turret

Milling machine,

*manufacturing all kinds of gap bed lathes and supplying different accessories.

*** manufacturing all kinds of manual metal sheet products
