China Jining Eaton Ja Seires Small Hydraulic Motor for Adjusting for Injection Mold Machine

China Jining Eaton Ja Seires Small Hydraulic Motor for Adjusting for Injection Mold Machine
Price: US $ 60-70/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

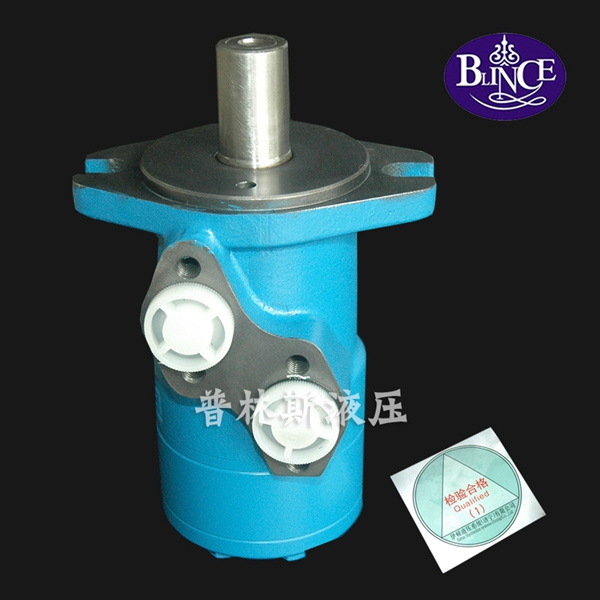

 China Jining Eaton JA seires small hydraulic motor for adjusting for injection mold

Eaton JA series hydraulic motor is an new and special model from Eaton China factory. This series hydraulic motor the same amounting dimension with OMP and OMR series orbital motor and the similar work specification. JA seires most use on Adjustment of injection molding machine and Sweeper

The specification:
      typeJA
100
JA
160
JA
200
JA
250
Geometric displacement (cm3/r)100160200250
Max.speed.(rpm)con.493307254219
 int.528329269234
Max.torque(N.m)cont.133190215260
 int.151225260306
Max.output(KW)cont.8.010.010.011.0
 int11.512.012.013.0
Max.pressure
Drop(bar)
cont.110979085
 int124115110100

Max.flow(L/min)
cont.53535353
 int.57575768

Item: hydraulic motor
Displacement(Cu.In./Rex.): 100cc/160cc/200cc/250cc
Shaft type: flat key  A8*7*32mm
Shaft Dia.(In): 25mm
Port Type:  G1/2

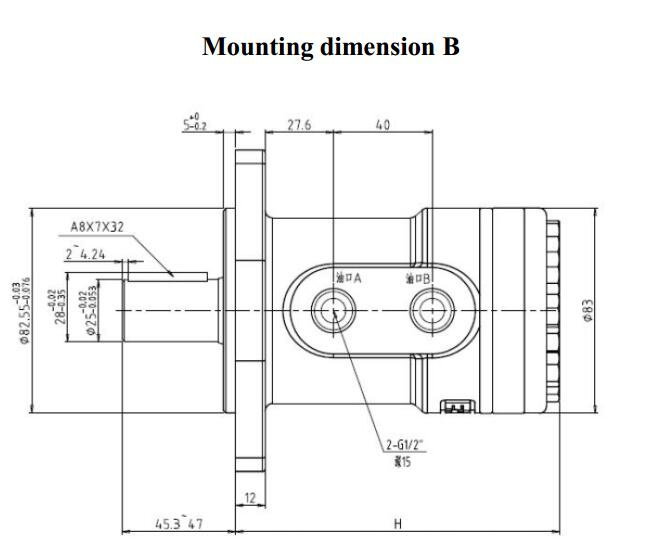

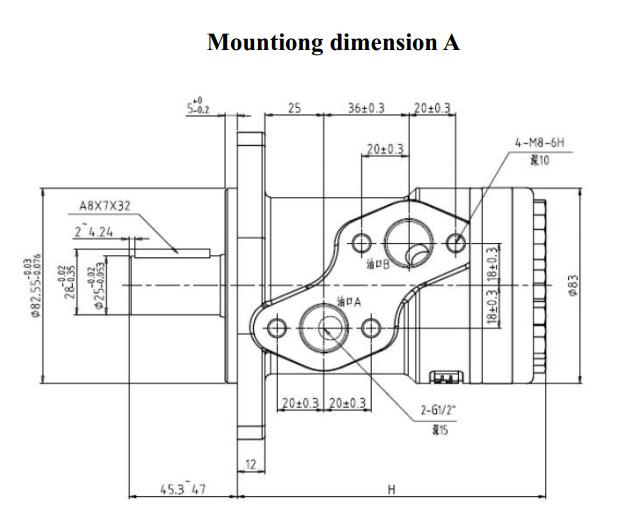

Flange Mount: 2 holes. Diameter: 106.4mm. pilot: 82.55mm

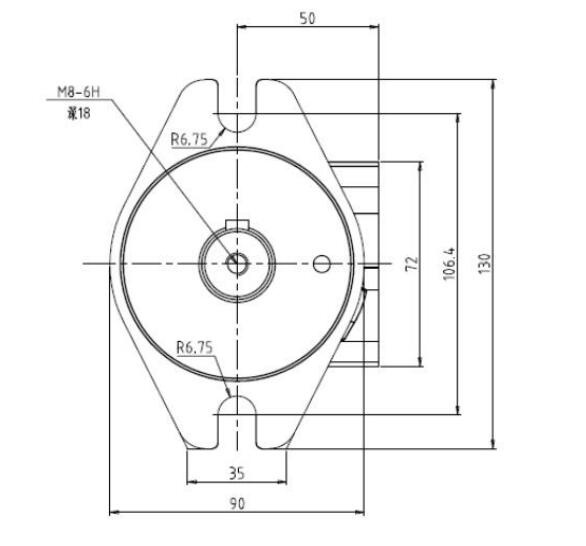

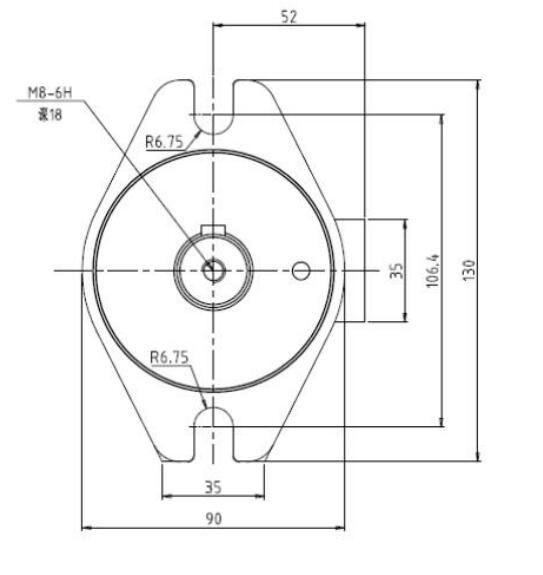

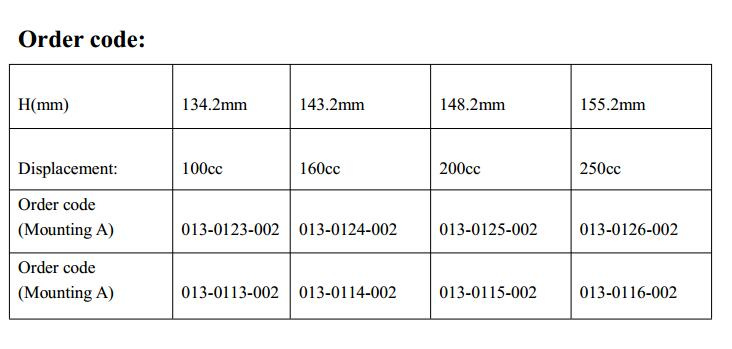

Please reference the drawing and the order code,choice the model you want !!!
Blince profssion supply all series hydraulic motor like OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY
/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V/VQ series / SQP series ) vane pumps. If you are interested in any our blince hydraulic motor pls contact me. Thanks! !


Amy chen
Tel: 86-0769-85156586
Mobile phone:+86-13560881920
Fax: 86-0769-85150786

Prod Model: Eaton JA motor
Usage: Hydraulic Oil
Application: Plastic Machine, Agriculture Machine
Motor Flange Shape: Square and Rhombus Flange
Motor Material: Cast Iron
Processing: Forging & Cutting &Phosphating
Motor Shafts: Straight, Splined and Tapered
Colour: Black/Gray or as Your Request
Warranty: One Year
Hydraulic Power Units: Vane Pump
Hydraulic Actuator: Hydraulic Motor
Established in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid m...MoreEstablished in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid motor, vane pump and hydraulic valve. Located in Changan, Dongguan, Guangdong, we enjoy convenient access to major transportation networks. Our company covers an area of 30, 000 square meters and has around 361 people staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. With stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Blince main product is orbit motor like (OMM/OMP/OMR/OMH/OMT/OMS/OMV), Radial Piston Motor(NHM 1/2/3/6/8/11/16/31), hydraulic pump (PV2R series, V/VQ series, SQP series) valve and a set of hydraulic system.

Our product widely application for fishing machinery, agricultural machinery, engineering machinery, mining machinery, industrial machinery, aviation and transport machinery et

Blince hydraulic motor Can perfect replace:

Danfoss: OMM/OMP/OZ/OMR/OK/OMH/OMS/OMT/OMV orbital motor

Eaton: J (129-) series, H(101-) series, S(103-) series, T(158-)series, 2000(104-) series, 6000 series orbit motor

White: MP/RS/MR/RG/HB/CE/RE series hydraulic motor

Parker: TE and TG series hydraulic motor
