China Factory Price High Quality Square Drive Torque Wrench

Features:

 Square drive stainless steel hydraulic torque wrench
360 º x 180 º rotating tubing connector, without the use of space limitations, easy to operate
Drive shaft Zhu button release, fast switching tighten and removal of the state
Cylinders and power head shape is small, light weight, compact structure, small operating radius
Single operation nut corner too fast cylinder mesh process. High working efficiency
The reaction force in a straight line, reducing the internal torque loss
The cartridges torque wrench entire work process provides high accuracy
Easy to maintain, requiring no special tools
Surface of the torque wrench is nickel plated, with good anti-corrosive

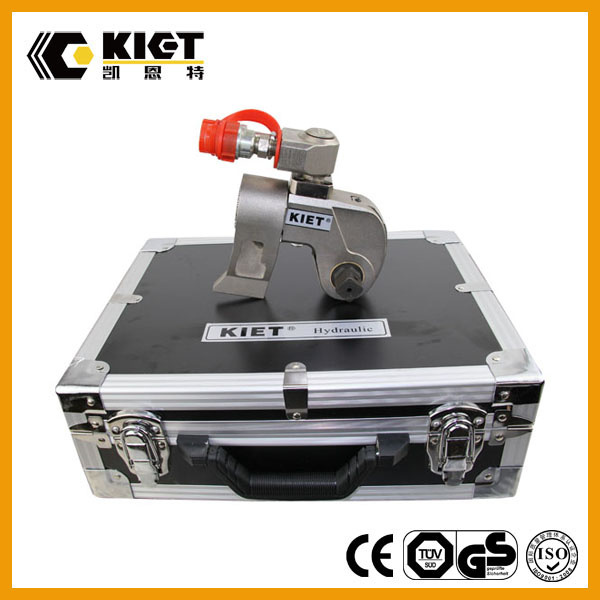

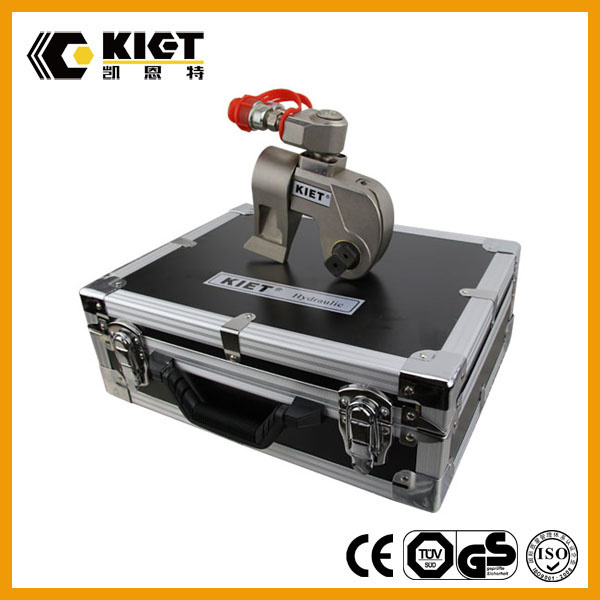

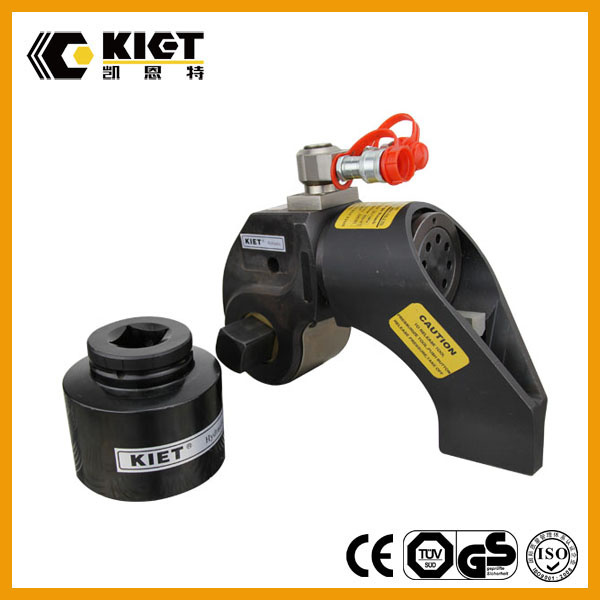

Photos for Square Drive Stainless Steel Hydraulic Torque Wrench:

Model No. for your feference.

Model Number	Socket range		Square Drive(Inch)	Max Nm under 700bar		Socket size
	mm	inch		NM	Ft.lbs	mm	inch
KT-S1500	15-50	5/8-1 7/8	3/4"	1898	1400	14-24	1/2 -2-1
KT-S3000	20-100	7/8-3 7/8	1	4339	3200	17-32	5/8-1 1/4
KT-S6000	41-155	1 5/8-6 1/4	1 1/2"	8144	6010	17-32	5/8-1 1/4
KT-S11000	41-155	1 5/8-6 1/4	1 1/2"	14914	11000	30-46	1 1/4-1 3/4
KT-S25000	60-255	2 3/8-10	2 1/2"	34079	25140	36-85	1 1/2 -2 1/4

Packaging & Shipping:



We provide Aluminum Alloy Lightweight Box , which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.





Our Service:

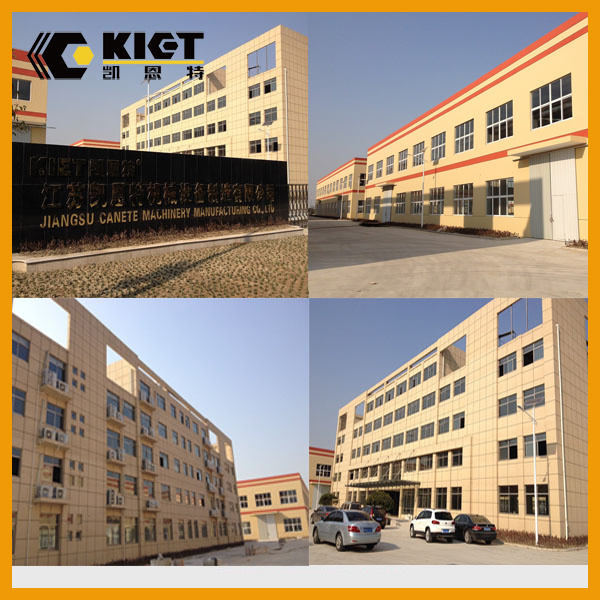

Brife information of KIET:

Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

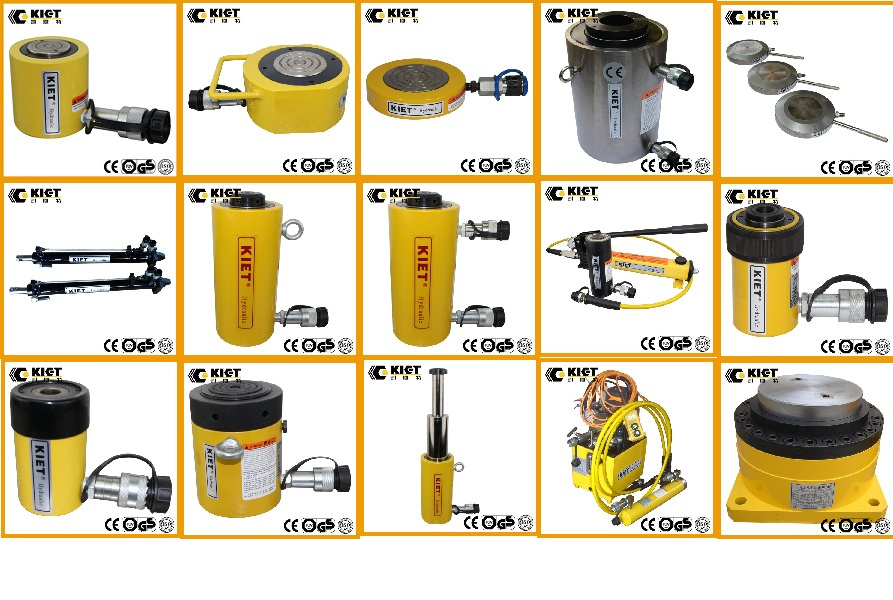

We are a manufacturer in tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;

Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);

Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)

Hydraulic pumps, manual and electric type (max up to 3000bar);

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)

Hydraulic nut and couplings. (M50-Tr1000)

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
