China Factory Full Color P6 Indoor/Outdoor LED Display Screen

China Factory Full Color P6 Indoor/Outdoor LED Display Screen
Price: US $ 210-260/Box
Min Order: 1/Box
Pay Type: L/C,T/T,Western Union,Paypal
China Factory Full Color P6 Indoor/Outdoor LED Display Screen


1.Most of our product use material as follow:
    MBI5124IC  Driver IC
    Refresh Rate:1920HZ
    pcb 1.6mm ,mask and base
    All our product have three years warranty
2. Product descripition:
Technical  Specifications
NOProduct name P6 led display
1Pixel Pitch(mm)6mm
2Pixel configuration1R1G1B/ SMD 3535
3Pixel density27777dots/m2
4Brightness 6000cd/m2
5Module size(W*H)192*192mm
6Module Resolution (W*H)32dots x 32dots
7Module weight500g
8Cabinet size (W*H)576mm×576mm
9Drive ICMBI5124
10Drive mode1/8scan
11Viewing Angle(V/H)140ºC
12Grey Scale65536 degree
13Life time>100,000 Hours (50%)
14MTBF>50,000 Hours
15Operating VoltageAC110V/220V±10%
17Screen Power ConsumptionMax: 680w/m2; Average:220w/m2
18Input Power Frequency50/60Hz
19Operating temperature -30--60ºC
20Humidity10%-95%
21Refresh Rate1920HZ
22Control MethodSynchronized with computer monitor
23Color Temperature6500K-9500K
24LED control systemLINSN,Nova-star,Colorlight is selectable
25Control Distance100 m (no repeating); Optical fiber transmission: 500m- 15km
26Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
27Systems Operating PlatformWindows Xp / Windows 7 / windows 8 /8.1 / windows 10













Prod Model: P6 led screen
Driver IC: Mbi 5124
Brightness: 6000CD/M2
Grey Scale: 65536 Degree
Life Time: More 100, 000 Hours (80%)
LED Display Mtbf: More 50, 000 Hours
Operating Temperature: -30~-60t
Refresh Rate: 1920Hz
Warranty: 3 Years Warranty
Tube Chip Color: Full Color
IP Rating: IP67
Pixel Configuration: 1R, 1G, 1B
Display Function: Market Display
Average Power Consumption: 180W / m²
Scanning Mode: 1/8 Scan
Display Type: LED Video Display
Application: Advertising
Certification: ISO9001 ISO14001 FCC
Pixel Pitch: 6mm
Pixel Density: 27777dots/M2
SHENZHEN HONGKINGLED OPTOELECTRONIC Co., Ltd, is one manufactuiers in SHENZHEN China, we product all kinds of full color indoor outdoor LED display, single color LED display, Di-color LED display,

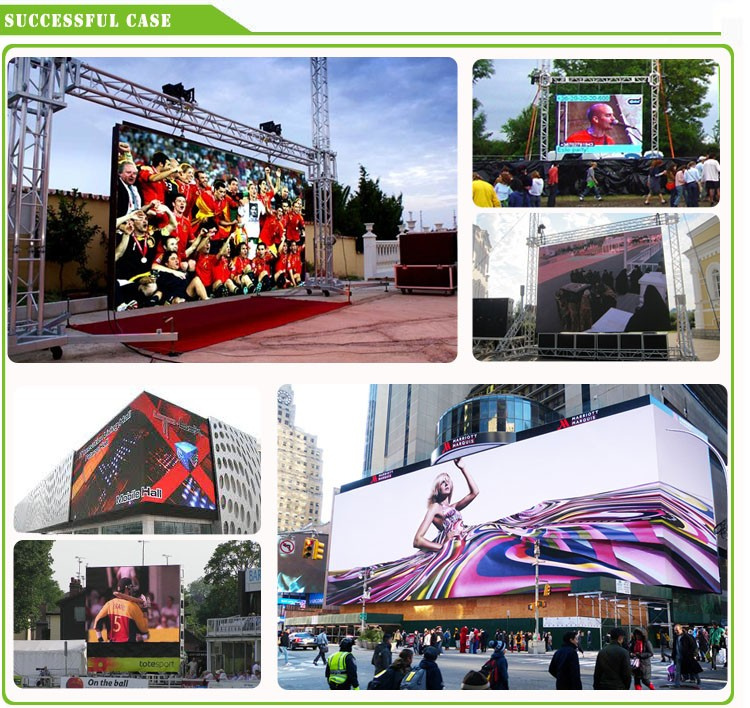

SHENZHEN HONGKINGLED Display-your one stop solution provider for all things LED related. As a renowned manufacturer in the growing Chinese industry, we have completed more than 1000 worldwide installation projects In the pursuit of excellence, we succeeded in breaking numerous industry records. HONGKINGLED is widely acknowledged as a world-leading designer and producer of high quality LED screens. Our target markets include sports, advertising, rental & stage, etc. To learn more, please ask us about our fully featured customization options!

HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress.

Development of overseas markets. Our success can largely be attributed to an outstanding reputation and a diverse client base.

Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
