| Price: | US $ 4000-6000set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Features:
T-slot&vacuum table
Integrated control box
Product details:
Technical Parameters:
Item | Description |

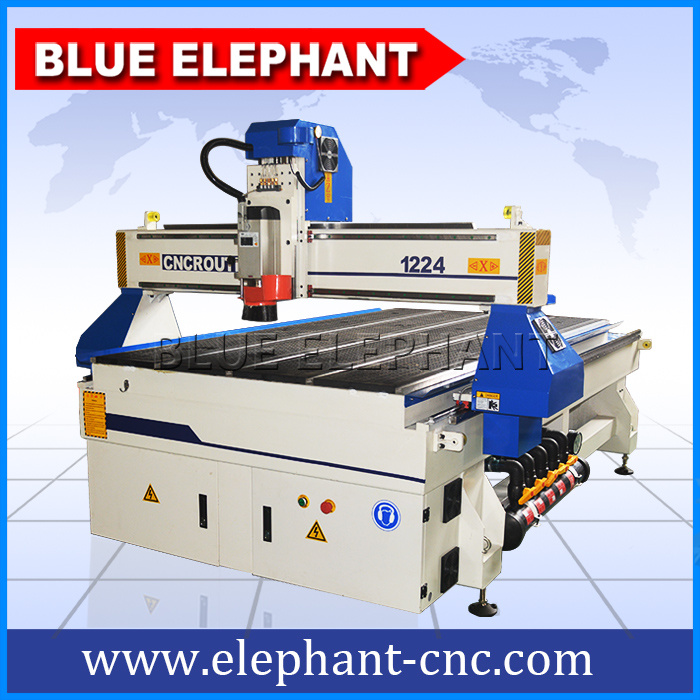

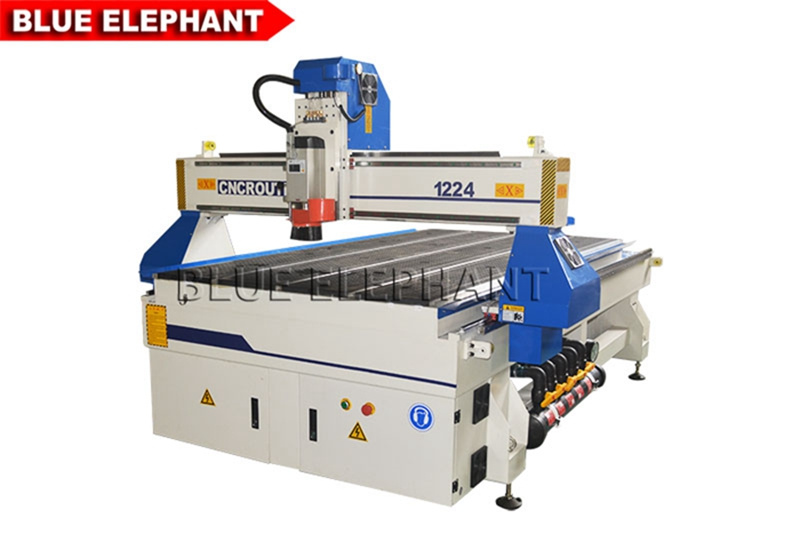

Model | ELE-1224 |
Working area | 1200*2400*200mm |
Table surface | T-slot & vacuum working table |

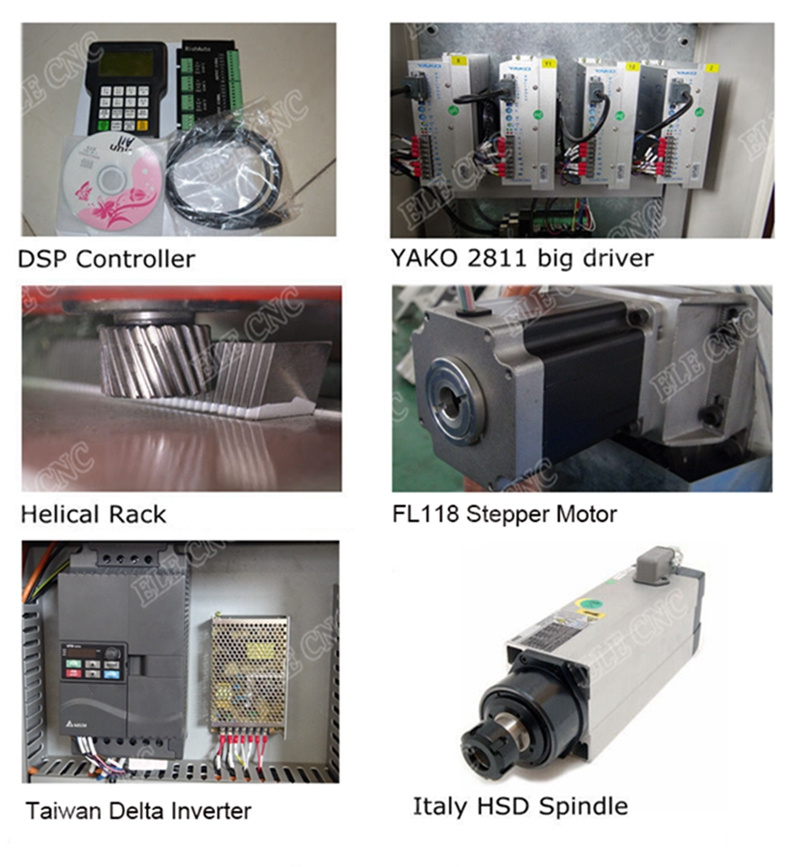

Spindle | 4.5kw HQD air cooling spindle |
Spindle speed | 0-18000rpm/min |
X,Y axis structure | #20 HINWIN square linear guide rail and helical rack gear |
Z axis structure | #20 HINWIN square linear guide and Taiwan TBI ball screw |
Motor and driver | Stepper |
Inverter | 5.5kw Fuling inverter |
Control system | DSP A11 |
Lubrication system | Manual |
Collect | ER25 |
Software Compatibility | Type3,ARTCAM,Ucancame |
Command language | G code |
Computer interface | USB |
Applications:
Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.
Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.
Packaging Details:1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
Feedback:
Our Services
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

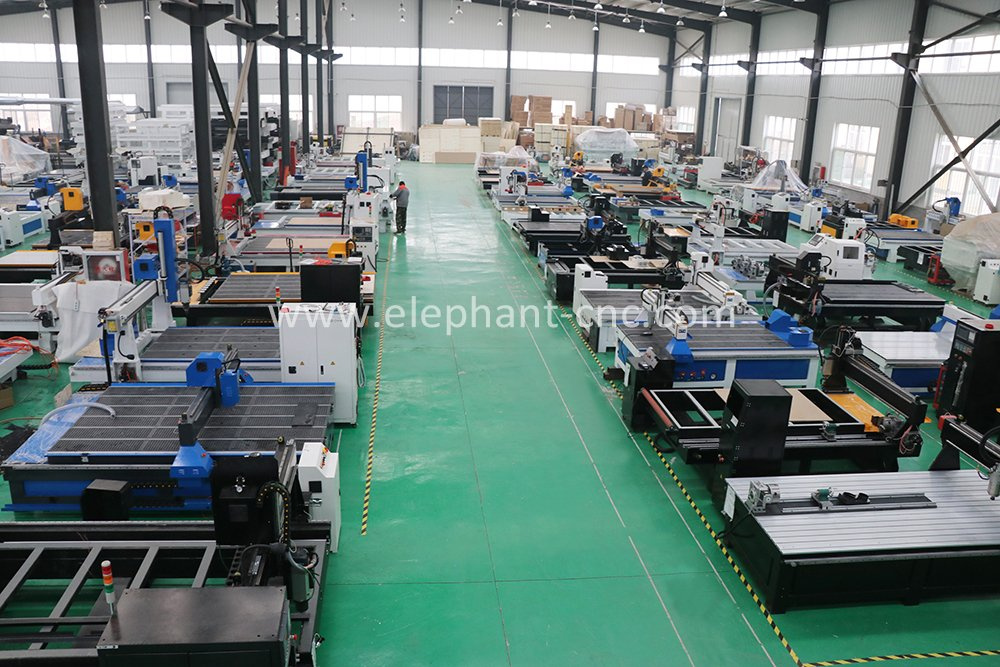

Company Information
Welcome to contact us.
Manager : Jack
mobile : 0086-15064026772
Web: www.elephant-cnc.com
| Prod Model: | ELE1224 |
|---|---|
| Voltage: | 380V/3pH/50Hz(Option:220V) |
| Dimension(L*W*H): | 1200*2400*200mm |
| Spindle: | 4.5 Kw Hqd Air Cooling Spindle |
| Control System: | DSP A11 Control System |
| Spindle Speed: | 0-18000rpm/Min |
| Working Area: | 1200X2400*200mm |
| Table Structure: | T-Slot&Vacuum Table |
| Drive Motor: | Stepper |
| X, Y Structure: | Helical Rack and Pinion Drive, Hiwin Rail Linear B |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |
