| Price: | US $ 1650-2500/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
General Tech Data
Model | portable_ 1500X3000mm |
Input Voltage | 220V±10% 60Hz |
Rated Power Supply | 500W |
Cutting thickness (plasma) mm | Depending on the customer plasma power supply |
Cutting thickness (flame) mm | 5-200(oxygen + acetylene or propane) |
Applicable gas type | oxygen with propane or acetylene |
Drive mode | Single |
Flame Cutting Speed | 0-6000mm/min |
Motor | stepper |
Torch height controller | Standard THC |
Cutting conversion software (option) | Australia fastcam (Professional small working area 1.5x3.0m |
Cheap price mini metal cutting machine plasma cutter cnc

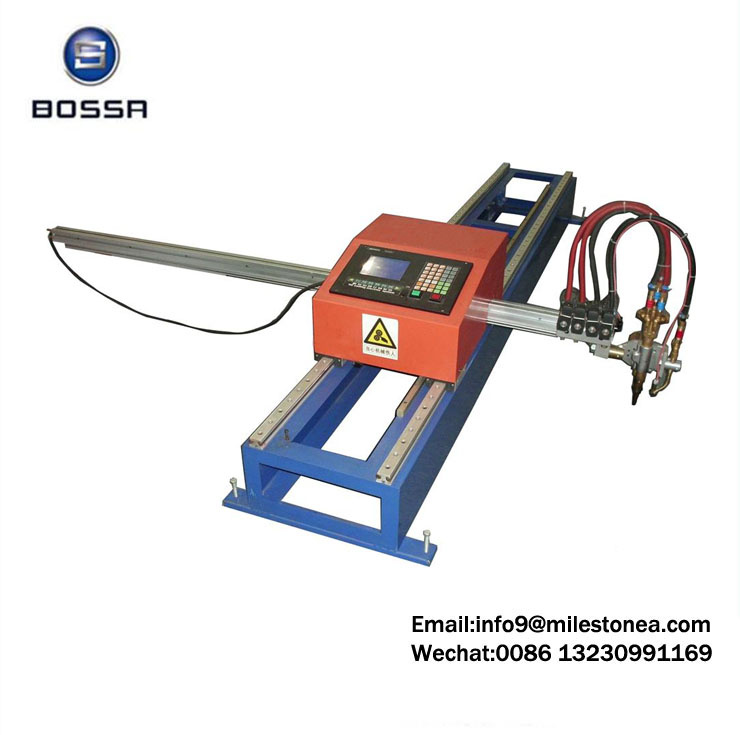

The Cutting machine 1530 small portable cnc plasma cutting machine main features
1.Cantilever structure, two-axis overall chassis, better stability;
2.The X axis effective cutting 1.5m,Y axis effective length of 3m (can be extended to 3.5m, 4m);
3.Torch automatic ignition, high success rate;
4.Standard flame, plasma or flame plasma can be optional dual,plasma arc voltage automatically increases;
5.Suitable for cutting within the width of 1.5m;
6.Beijing Starr CNC system, 8-inch LCD screen;
7.Plasma cutting thickness depending on the plasma power may be plasma cutting speed is 2-4 times the flame, 20mm within the proposed plasma cutting;
8.Tthe power selection of domestic famous brand(Huayuan) or the United States Hypertherm power supply, high duty-cycle, you can continue working for a long time; power supply price gap is large, the quality of the power supply directly affects the cutting effect.
Product Details
Applitation
The Cutting machine 1530 small portable cnc plasma cutting machine application:

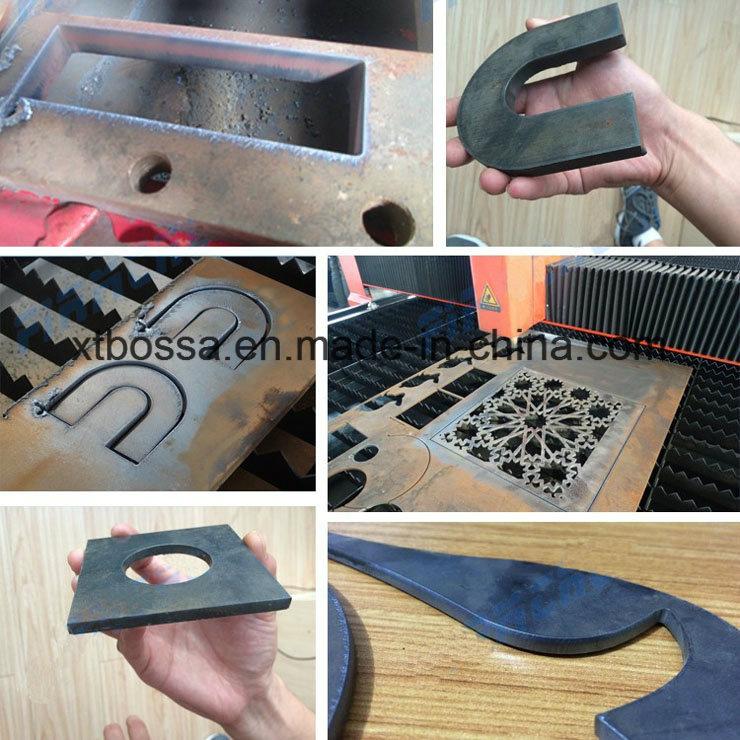

This Portable cnc plasma cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
Hebei Bossa Group Co.,Ltd located in Xingtai high-tech development zone, it was established in 2004 and become group company in 2016. It professionally manufacturer engaged in the research , development , production and service of CNC cutting machines, boiler, environmental protection equipment, and CNC truck parts
We use advanced technology and a quality management system to guarantee the quality of products. According to ISO9001 system standard, We formulate perfect quality inspection standards and establish a scientific and strict quality guarantee system.
Xingtai milestone Import&Export trading Co.,Ltd is one branch company of Bossa Group Co.,Ltd. All of our goods exported through Milestone . BOSSA and MST are our Logo used for overseas market.
We believe that quality is a life of one enterprise and service creates future.
We want to assist our customers in their growth by being mainstay supplier/provider in industrial products, solutions and services.
Packing and shipping
Our Services
1)Introduce all the company and products information
2)Provide professional technical advisory services
3)Provide visit and reception related conveniences
4)Any inquiry will be replied within 12 hours ,we promise providing a reasonable and detailed quotaiton.
After-sale service and Guaranty:
1)Send you the control system installation pacakge,and the catalog to install the machine,and instruction of the system control
2)Keep contact by the mail,skype,wechat,whatsapp,or other ways to help you to solve the machine questions you face.
3)Have one and a half year after sale warranty,in this time,any parts is broken,we will free to send younew one to replace.
4)We will make sure our warranty,and be faithful to our client
Cheap price mini metal cutting machine plasma cutter cnc
How to contatc us
Xingtai Milestone Import&Export Co., Trading Co., LTD
( Exported company of Xingtai Bossa machine manufacture Co.,Ltd)
Tel: 86-319-5326929 Fax: 0319-5326929
Cell: 86-13230991169
xtbossa.en.made-in-China.com
Address: Xingtai High-tech Development Zone, Hebei . China
| Cutting Speed: | 0-8000mm/Min |
|---|---|
| Cutting Thickness: | 6-200mm |
| Place Of Origin: | Xingtai, China |
| Payment Items: | T/T etc L/C at Sight, West Union Are Acceptable |
| MOQ: | 1 |
| Apply To: | Industrial Metal Cutting |
