| Price: | US $ 85/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Rated voltage | 220V/Single Phase |
| Power Range | 0.2kw-1.5kw |
| Output Frequency | 1.0-400.00Hz |
2.Features:
1) Static vector inverter adopting Dual-core CPU.
2) Frequency control mode of main/auxiliary frequency of overlapping.
3) Automatic voltage regulate function (AVR)
4) Analog frequency setting can accept 0 ~ 10V DC 4 ~ 20mA
5) Multifarious stop methods(off stop, stop for AVI zero)
6) Multi-display: Voltage, current, preset frequency and practical frequency, rotation value
7) Built-in PLC enables 16-level speed program running
8) Power failure memory, reverse prohibited rotation, DC braking Automatic adjust acceleration, deceleration, parameter password-locked.
9) Parameter copy function by extended keypad.
10) Automatic torque compensation-start torque up to 150% at 3 Hz.
11) High overload capability-150% rated torque can last for 65 seconds.
3.Product Advantages:
- Many machine lines and output is 10000set /month
- Customized specification is accepted.
- implement strict quality testing and control procedure to make superior quality.
- Delivery:10-20 days (urgent 5-10 days)
- Certification:ISO 9001,ISO14001,OHSAS18001 & CE
4.Application:
Logistics equipment:assembly line,conveying equipment,automatic storage & transport equipment......
Electronic manufacturing equipment:winding machine,wave soldering machine,PCB equipment,foam mechanical equipment,small plastic machinery.
Machining equipment:Engraving machine,Centerless Grinder,Wire-cutting machine,Electric discharge machine.
Textile Machinery:Small Knitting Machine,Glove Knitting Machine,Winding Machine,Spreading Machine,Loom.
Others:Stone Cutting Machine,Washing Machine,Printing Equipment,Pharmaceutical Machinery,Food Machinery,Medical Equipment,Fitness Appliance(Treadmill,Body Shaping Machine),Screen Print Machine,Fan&Water Pump(water supply for building)

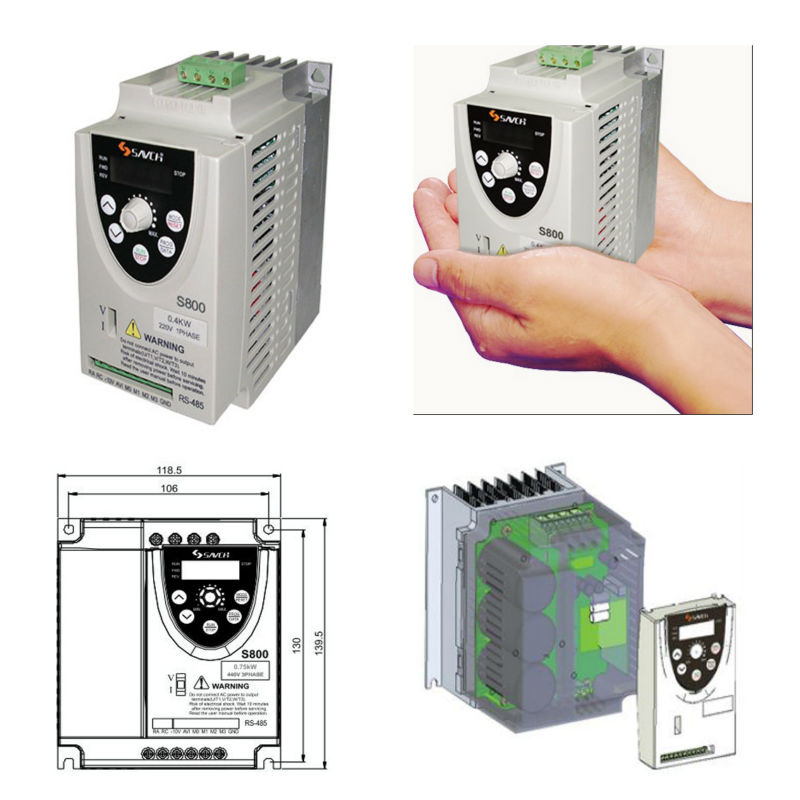

5.Product Show:

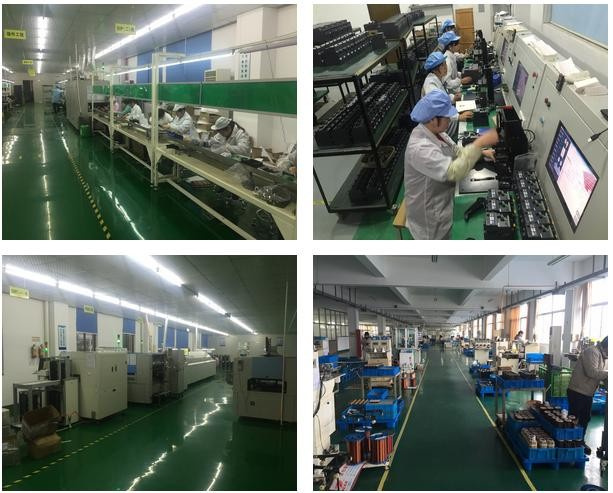

6.Factory Production:

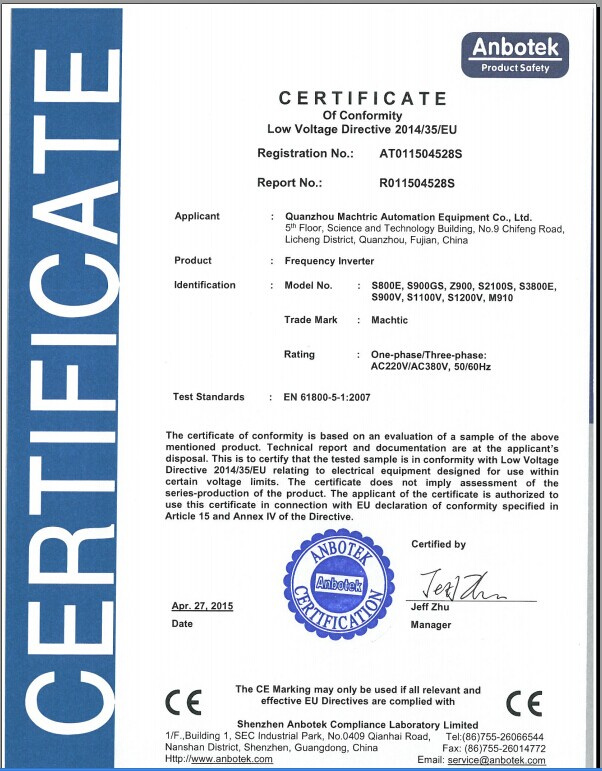

7.Certificate:
8.Other Products:
9.Contact Us:

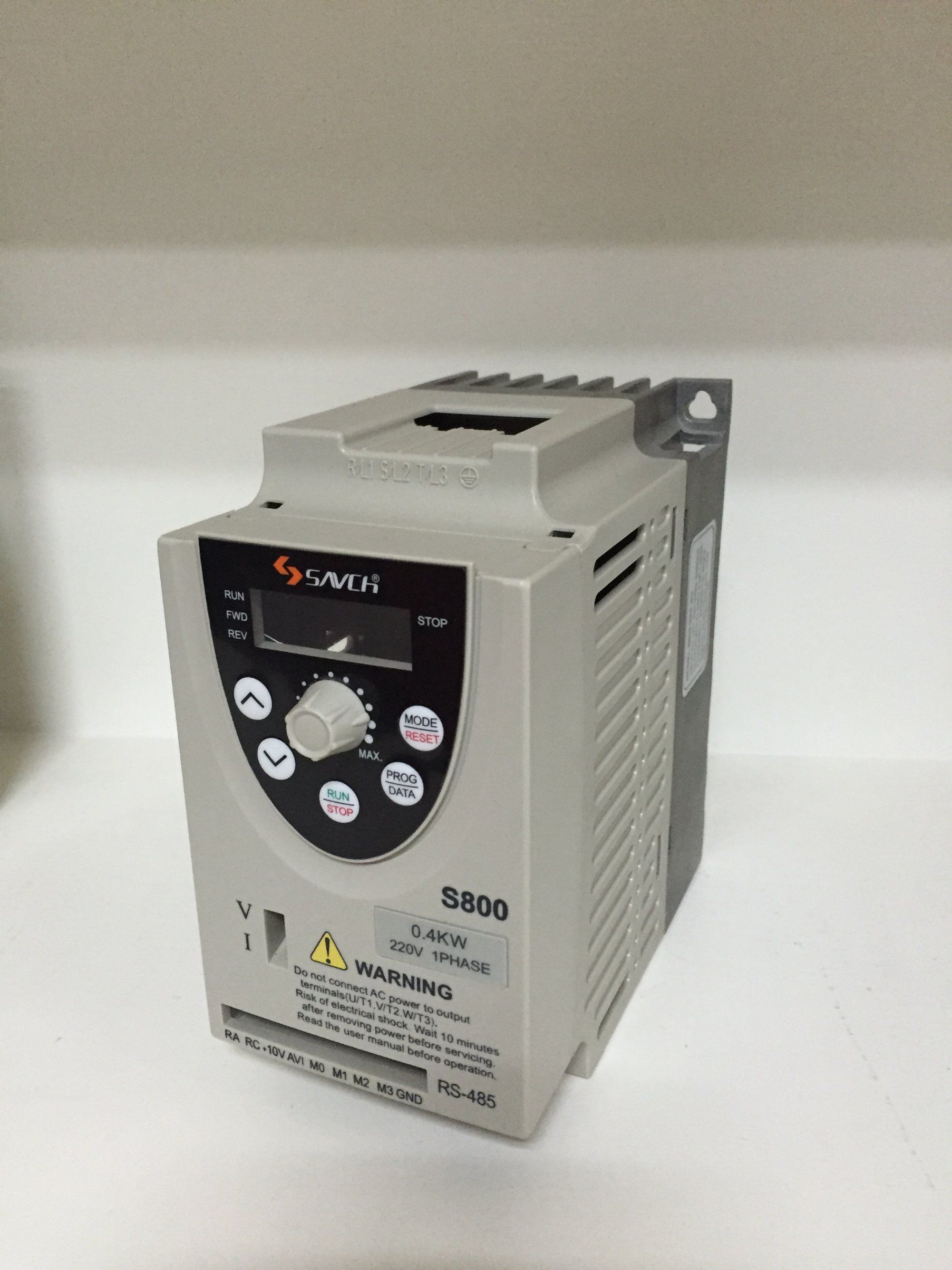

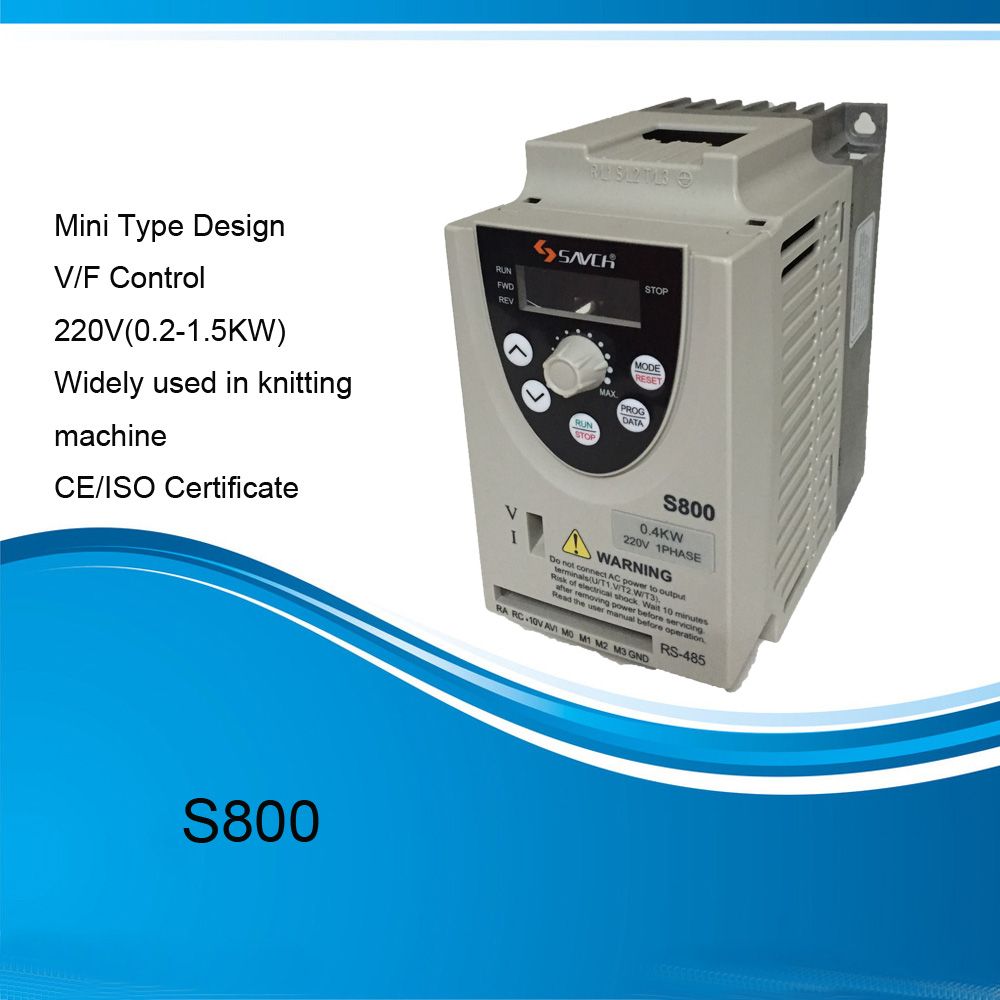

| Prod Model: | S800 |
|---|---|
| Item Name: | Cheap Price Low Frequency Inverter |
| Output Current: | 1.6A-7.5A |
| RS485: | Standard RS485 Communication Function |
| Function Certification: | ISO 9001,ISO14001,Ohsas18001 & Ce |
| Fail Rate: | < 1% |
| Type: | AC-DC-AC |
| VFD: | Variable Frequency Drive |
| VSD: | Variable Speed Drive |
| Vvvf: | Variable Voltage Variable Frequency |
| Maximum Frequency: | 400.00Hz |
| Application: | High Frequency Converter Transducer |
| Output Type: | Triple |
| Principle Of Work: | V/F Control Transducer |
| Switch Mode: | PWM Control |
| Main Circuit Type: | Voltage |
| Brand: | Sanch |
