Charpy V-Notch Pendulum Impact Testing Machine

Charpy V-Notch Pendulum Impact Testing Machine
Price: US $ 2000-6000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram

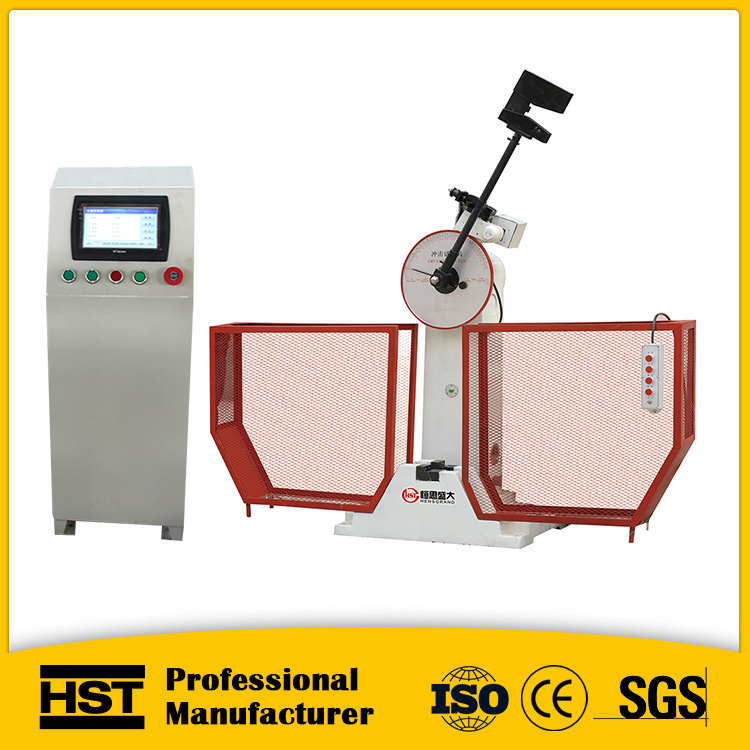

charpy v-notch pendulum impact testing machine
Application
JBS series LCD touching screen display Pendulum impact tester is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications:
ModelJBS-300JBS-500JBS-800
impact energy150/300J250/500J500/800J
The distance between the
pendulum shaft and impact  point
750mm850mm800mm
Impact speed5.2m/s5.4 m/s5.9m/s
Pre-rising angle of the pendulum150°
Specimen bearer span40+0.2mm
Round angle of the jawR1-1.5mm
Round angle of impact edgeR2-2.5mm,R8±0.05mm
Angle accuracy0.1°
Standard specimen dimension10mm×10(7.5/5)mm×55mm
Power supply3phs, 380V, 50Hz Or 220V,60Hz
Dimensions (mm)2124 x 600 x 13402200 ×650 ×19602450 x 1200 x 2455

Net Weight (kg)4506502300
4. Features:
4.1 Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box;
4.2 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
4.3 Pendulum will automatically rising and ready for next impact action after specimen breakout.
4.4 With two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test average value, meantime the dial scale show test result as well.
4.5 Built-in micro printer to print test result.
5. Configurations:
5.1 Main unit----------1 set
5.2 Pendulum
JBS-300BJBS-500BJBS-800B
150J/300J--2 pcs250J/500J--2 pcs500J/800J--2 pcs

5.3 Span specimen plate (L = 40mm)----1 pc
5.5 Specimen centering plate (L = 40mm)(U, V)----1 pc
5.6 Stripping attachment----1 pc
5.7 Internal hexagonal wrench (S=12mm)---1 pc
5.9 Anchor bolts (M16x300mm)---4 pcs
5.10 Impact testing security guards----1 pc
5.11 Touching screen control panel/ PC software

For more informations ,welcome to contact Sunny for help:
Tel: +86-15866777590

Prod Model: JBS-300/500/800
Impact Speed: 5.2m/S
Pre-Rising Angle Of The Pendulum: 150
Angle Accuracy: 0.1
Specimen Bearer Span: 40+0.2mm
Power Supply: 3phs, 380V, 50Hz or 220V, 60Hz
Type: Impact Testing Machine
Weight: 100-500Kg
Power Source: AC220V
Maxcapacity: 300j/500j/800j
Jinan Hensgrand Instrument Co., Ltd. Was established in 2001, is specialized in developing and manufacturing of testing equipment used for metal, non-metal and composite materials mechanic performance testing.

Our main products are Hydraulic Universal Test Machine, Electronic Universal Test Machine, Compression Testing Machine, Spring Testing Machine, Impact Testing Machine, Torsion Testing Machine, Hardness Tester, Testing Machine Accessories. Most of them comes with CE and ISO certifications.

Products are widely used in steel metallurgy, machinery manufacturing, space flight and aviation, military, auto manufacturing, rubber industry, plastic industry, etc. UAS, UK, Germany, Italy, Canda, Singapore, Philippines etc. Are our main exporting countries.

"To make high quality products" is our manufacturing philosophy!

With scrupulous manufacturing process, large-scale production, strict quality management, normative user training and improved service system, our company is specialized in providing customers with humanized products which customers can rest assured to buy and use with ease.
