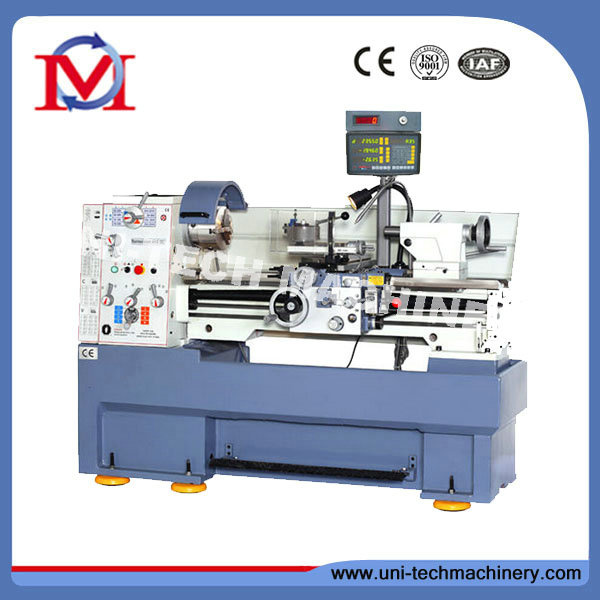

Ce Certificate High Precision Horizontal Gap Bed Lathe (CD6241)

Ce Certificate High Precision Horizontal Gap Bed Lathe (CD6241)
Price: US $ 3500-3600/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
CE certificate high precision horizontal gap bed lathe (CD6241)

The specification of bench lathe (CD6241)
CAPACITY
Swing over bed 410mm(16")
Swing over cross slide 255mm(10")
Swing in gap 580(23")
Length of gap 250(10")
Distance between centers 1000mm(40")
Center height 20.5"
Width of bed 250(10")

The specification of bench lathe (CD6241)HEADSTOCK
Spindle nose D1-6
Spindle bore 52mm(2")
Taper of spindle bore No. 6Morse
Range of spindle speed 16 changes 45-1800r/min

FEEDS AND THREADS
Max. Travel of compound rest 102mm(4")
Max. Travel of cross slide 210mm(8-1/4")
Leadscrew pitch 4T. P. I.
Max. Section of tool 20× 20mm(13/16")
Longitudinal feeds range 0.05-1.7mm/rev(0.002"-0.067"/rev)
Cross oeeds range 0.025-0.85mm(0.001"-0.0335"/rev)
Metric threads range 39kinds 0.2-14mm
Inch threads range 45kinds 2-72T. P. I
Diametrical pitchesrange 21kinds 44D. P.
Module pitches range 18kinds 0.3-3.5M. P.

TAILSTOCK
Dia. Of tailstock sleeve 50mm(2")
Travel of tailstock sleeve 120mm(4-3/4")
Morse taper of tailstock sleeve No. 4 Morse
Cross adjustock ± 13mm(± 1/2")

MOTOR
Power of main motor 2.8/3.3kw(3.8/4.5HP)3pH
Power of coolant pump 0.1KW(1/8HP), 3pH

DIMENSION AND WEIGHT
Overall dimension(L× W× H) mm 1940× 850× 1300 1940× 850× 1320
Packing size(L× W× H)mm 2060× 900× 1640 2060× 900× 1640
Net weight/Gross weight 1500/1750 1550/1800

The specification of bench lathe (CD6241)
STANDARD ACCESSORIES
200mm Three Jaw Chuck and Adapter
320mm Four Jaw Chuck and Adapter
300mm Face Plates
Steady Rest
Follow Rest
Thread Chasing Dial
Mt/6/4 Sleeve and MT 4 Center
Oil Gun
One set of Wrenches
Operation Manual

The specification of bench lathe (CD6241)
SPECIAL ACCESSORIES
1.200mm Driving plate
2. Quick change Tool Post
3. Taper Turning Attachment
The specification of bench lathe (CD6241)
ModelCD6241× 1000CD6241× 1500
Max.swing over bedΦ410mm(16")
Max.swing over cross slideΦ255mm(10")
Max. swing over gapΦ580mm(23")
Center height205mm(8")
Distance between centers1000mm(40")/1500mm(60")
Width of bed250mm(10")
Max.section of tool20mm×20mm(3/4"×3/4")
Max.travel of cross slide210mm(8 1/2")
Max.travel of compound rese140mm(5 1/2")
Spindle boreΦ52mm(2")
Spindle noseD1-6
Taper of spindle speedM.T.#6
Range of  spindle speed16changes25-1800r/min
Leadscrew pitch4 T.P.I.
Range of metric longitudinal feeds range0.05-1.7mm/rev(17 Nos)
Range of inch longitudinal feeds 0.002"-0.067"/rev (17 Nos)
Range of metric cross feeds0.025-0.85mm/rev (17 Nos)
Range of inch cross feeds0.001"-0.0335"/rev (17 Nos)
Range of metric threads0.2-14mm(NO. 39)
Range of inch threads2-72 T.P.I.(NO. 45)
Range of Diametrical pitch8-44D.P.(21Nos)
Range of module pitches0.3-3.5 M.P.(18Nos)
Dia. of tailstock sleeve50mm(2")
Travel of tailstock sleeve120mm(4 3/4")
Morse taper of tailstock sleeveM.T.#4
Power of main motor2.2/3.3kw(optional 3/5.5kw)
Power of coolant pump4P,3PH 90W
Overall diamension(L*W*H)1940mm×850mm×1320mm
Packing size(L*W*H)2070mm×940mm×1600mm
N.W/G.W1550kg/1760kg
Prod Model: CD6241
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium Size Gap Bed Lathe Machine: Swing Over Bed 410mm, Length 1000, 1500mm.
Max.Swing Over Cross Slide: 255mm
Max. Swing Over Gap: 580mm
Center Height: 205mm
Distance Between Centers: 1000mm(40")/1500mm(60")
Width Of Bed: 250mm(10")
Max.Travel Of Cross Slide: 210mm(8 1/2")
Spindle Bore: 52mm(2")
Power Of Main Motor: 2.2/3.3kw(Optional 3/5.5kw)
Power Of Coolant Pump: 4p,3pH 90W
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Setting Mode: Floor-type
Precision: High Precision
Tool Holder: 4-Position Tool Post
