Ce Certifiate CNC Router Woodworking Machine CNC Cutter

Ce Certifiate CNC Router Woodworking Machine CNC Cutter
Price: US $ 3773-11320/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

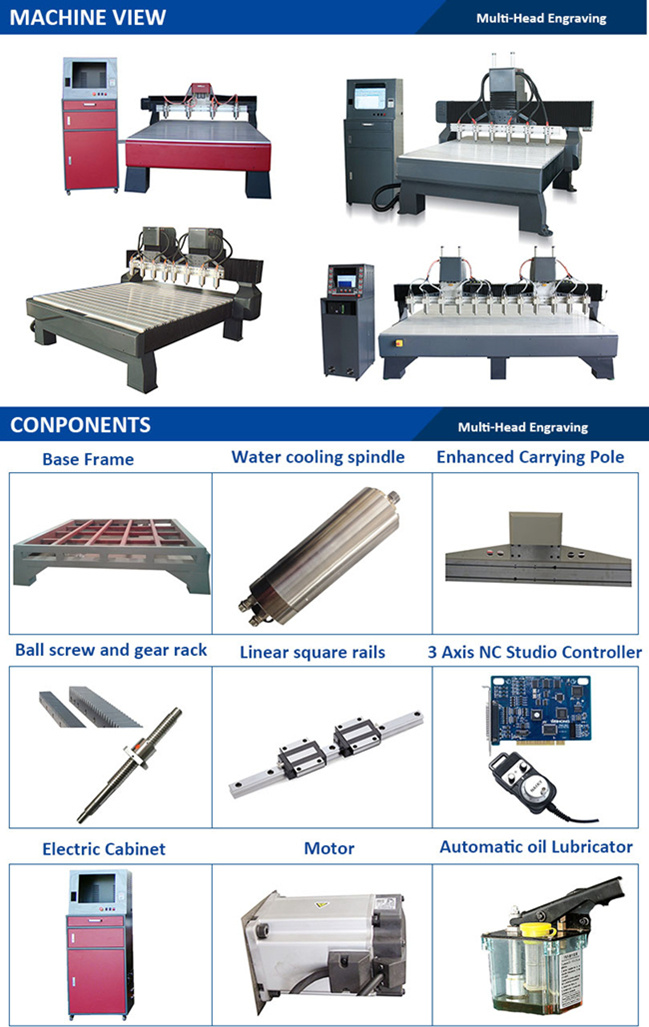

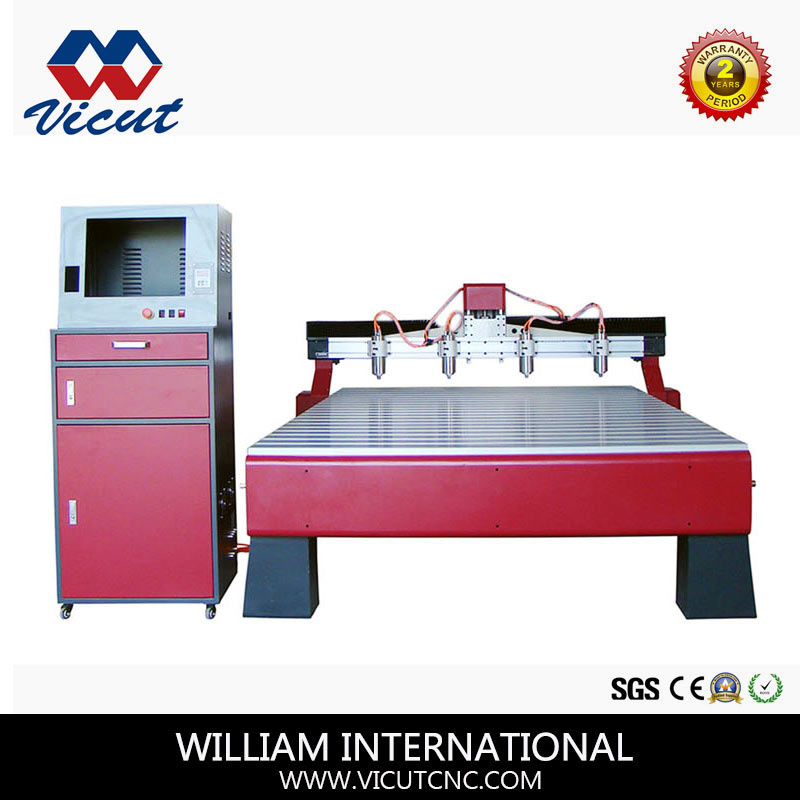

Multi-head CNC Wood Router
FEATURES:

  1. Single or double Z plate with multi head, multiple materials can be processed by a machine can improve working efficiency and save producing time.
  2. The quantities of head can be customized as per customer's requirement.

APPLICATION:

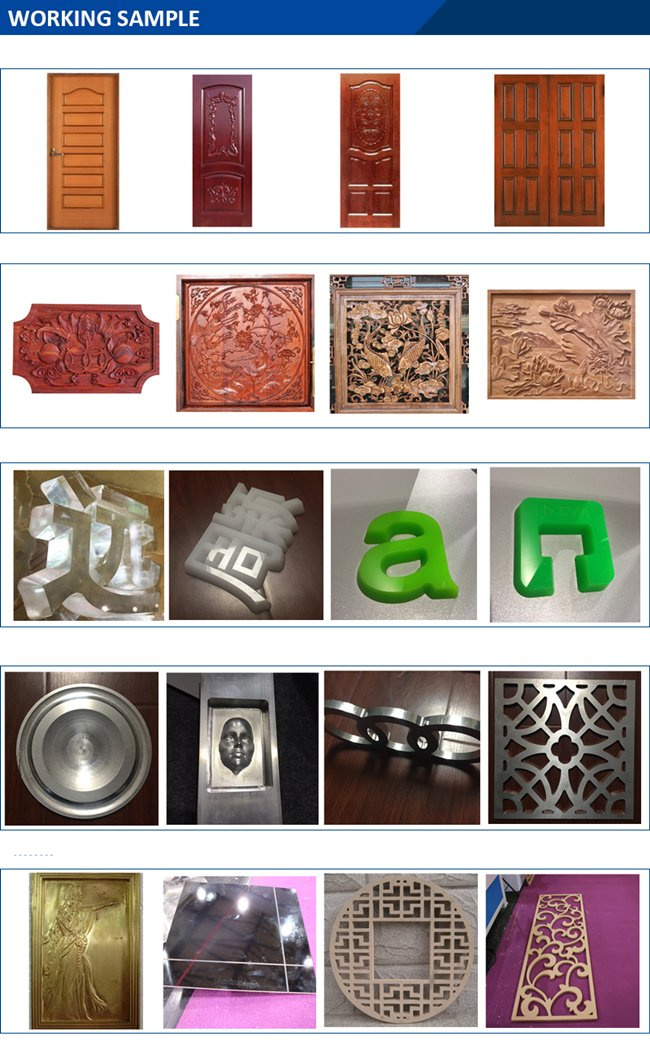

  1. Wood carving on furniture, such as doors, windows, antique furniture, Mahogany furniture, chairs, stairs and all kinds of wood crafts.
  2. Making instruments, 3D light box, aluminum composite panel, decorations etc.

ModelVCT-1518W-4HVCT-2013W-6HVCT-2530W-8HVCT-3230W-2Z-12H
Machine Dimension2100x2400x1900mm
(6.89x7.87x6.23ft)
2600x1900x1900mm
(8.53x6.23x6.23ft)
3100x3600x1900mm
(10.17x11.81x6.23ft)
3800x3600x1900mm
(12.47x11.81x6.23ft)
Working Size1500×1800×180mm
(4.9×5.9×0.59ft)
2000×1300×180mm
(6.56x4.26x0.59 ft )
2500 x 3000 x 200mm
(8.2x9.8x0.67 ft)
3200 x3000 x200mm (10.5x9.8x0.66ft )
Spindle  Power2.2KW×4PCS2.2KW×6PCS2.2KW x 8PCS2.2KW x 12PCS
Motor & Driverstepper (servo motor is optional)XYZ axis use Chinese servo motor (ESTUN or Dorna )Schneider / Panasonic servo motor 1KWSchneider / Panasonic servo motor 1KW
Tool Diameter4,6, 8, 12mm
Body StructureThick steel tube welding
TransmissionXYZ high accuracy TBI ball screw(gear rack is optional)XY axis gear rack, Z axis high accuracy TBI ball screwXY axis gear rack, Z axis high accuracy TBI ball screwXY axis gear rack, Z axis high accuracy TBI ball screw
XYZ Guiding RailsOriginal Taiwan PMI square rails
Machining Accuracy<0.03/300mm
Maxi Engraving Speed8000mm/m12000mm/m15000mm/m15000mm/m
Spindle Speed6000~24000rpm
Controlleroriginal 3 Axis NC Studio controller with handle wheel  (connect with PC directly)
Supporting file FormatG code or HPGL
VoltageAC220V/50HZ or 380V/60Hz
Weight800KG1300KG2500KG3000KG
Packing size2.45x2.6x2m
12.74CBM
2.85x1.95x2m
11.12CBM
3.2x4x2.2m
28.16CBM
4.2x4x2.2m
36.96CBM





Our Value and Obligation:
1) Do business with integrity. No cheating and deception.
2) We are committed to offer high quality products.
3) We are committed to provide professional and efficient premium services.
4) If you are or will be a distributor, we are willing to help you develop new markets, enhance performance.
5) If you are the end user, we will help you choose the right products and offer life-time technical support.

Quality Control:
1) During procurement, we have strict control about the quality of the spare parts.
2) Manufacturing period, we have QC department to monitor each step of production process by different testing tools and inspection forms.
3) Before shipment, we will test machine by different common materials, and make necessary adjustment and data record. Also we will take photos and some sampling videos for customers.

Warranty:
1.Two years warranty for the whole machine; Lifetime Maintenance.
2.Within warranty period, any damage happens due to machine quality problems; VICUT will be responsible for replacing parts for free, except regular consumables (such as cutting tools) and the damage by man-made irregular operating.
3.If any part damaged is not in warranty period, VICUT will repair it for free.
4.Customer has to pay the International Express cost.
5.Warranty time starts after goods arrival in customer's location.



After-sale Service:
1. Guarantee long-term supply for spare parts; Unlimited Lifetime maintenance.
2. Offer life-time 24 hours online technical support for free. We can communicate by way of phone, e-mail, whatsapp, wechat, QQ, skype, or team-view, etc.
3. Offer free training for operation & maintenance of equipment in our factory.
4. Offer On-Site paid service for machine installation and technical training. Customer need to pay visa application cost, air ticket cost, local hotel & food cost, and service cost is 80USD per day.
5. We will make return visit non-scheduled, in order to make assessment for after-sale service technician, make sure our service more and more better.




Company Introdution:

WILLIAM INTERNATIONAL is a Chinese manufacturer of CNC router, label cutter, flatbed cutter, Laser marking machine and cutting plotter, having its own manufacturing base and official license for export & import business.
Our brand (VICUT) focuses on overseas market, to provide the customer CNC machinery with an affordable solution without sacrificing options or function.
Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.
Product: We produce CNC engraving and cutting machinery, such as CNC router, laser marking machine, label cutter, flatbed cutter, cutting plotter. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.
Team: We have two workshops in Hefei city, Anhui province. 200 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 20 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 20 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.


Contact us:

If you want to get more information, please feel free to contact us.

Contact person:  Zephyr He
Cell:  +86 13865965261

Prod Model: VCT-1518W-4H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Size: 1500×1800×150mm
Spindle Power: 2.2kw*4PCS
Driver: Stepper (Servo Motor Is Optional)
Structure: Cast Square Tube
Transmission: Xyz High Accuracy Ball Screw (Gear Rack Is Optiona
Xyz Guiding Rails: Pmi Square Rails
Maxi Engraving Speed: 8000mm/Min
Data Transmission: Connect with PC Directly (Original Nc Studio Cont
Voltage: AC220V/50Hz or 380V/60Hz
Net Weight: 800kg
Spindle Layout: Vertical
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: ISO
Spindle Number: 4 Heads
CNC Engraving and Cutting Solution Provider

WILLIAM CNC is a Chinese manufacturer of CNC router, Laser marking machine, label cutter, flatbed cutter, and cutting plotter, having its own manufacturing base and official license for export & import business. Our brand (VICUT) focuses on overseas market, to provide the customer CNC machinery with an affordable solution without sacrificing options or function.

With our CNC router or laser marker, you can cut, carve, or mark on many kinds of materials, such as wood, acrylic, metal, stone, foam, glass, plywood, MDF, PVC, ABS, etc. With our flatbed cutter, label cutter or cutting plotter, you can make digital cut on vinyl adhesive, reflective film, craft paper, sandblast membrane, stickers, cardboard, plastic board, rubber sheet, marking film, PET, PP, PVC, PC, wall paper, coated paper, glossy paper, paper jam, etc.

Remember that each solution can be customized for your particular needs. So no matter what you cut, engrave, or mark, we can configure a machine to suit your applications and budget. We also welcome overseas agents to join the growing families of VICUT.

Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.

Product: We produce CNC engraving and cutting machinery, such as CNC router, laser marking machine, label cutter, flatbed cutter, cutting plotter. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.

Team: We have two workshops in Hefei city, Anhui province. 200 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 20 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 20 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.

Quality Assurance: Strict whole process quality control and management during procurement, manufacturing, packing, and shipping. Cooperate with top suppliers of CNC spare parts in the world, such as Italy HSD, Japan Panasonic, Taiwan Syntec, Taiwan PMI, TBI, France Schneider, Dragoncut software, etc.

Transportation: Welcome to visit our company. By fast train, it takes about three hours from Shanghai or Qingdao, two hours from Wuhan, one hour from Nanjing. By plane, needs less than 2 hours from Beijing or Guangzhou. Any port in China can be used for shipment, and Shanghai or Nanjing port is more closed to our factory.
